2009 ATV YFZ450 - YFZ450 (5D3R) [010] GUARD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

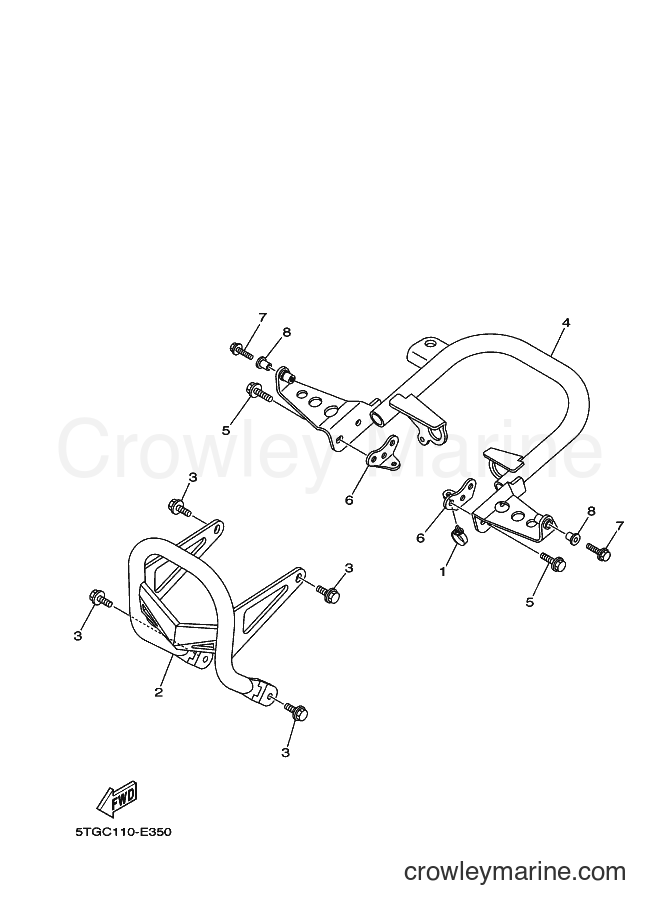

Yamaha Motors YFZ450 (5D3R) [010] - GUARD
Change View:
-15%
Clamp
1
Yamaha Motors
Clamp90464-20181-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$4.72
$4.01
You save $0.71
More details
BAR, CARRY FRONT
2
Yamaha Motors
BAR, CARRY FRONT5D3-2845N-40
Required: 1
BAR, CARRY FRONT
Price unavailable
-15%
REAR CARRY BAG
4
Yamaha Motors
REAR CARRY BAG5D3-2845R-40-00
Required: 1
BAR, CARRY REAR
Cross Ship
Leaves in 2-5 days
$250.99
$213.34
You save $37.65
More details
-15%
Flange Bolt
5
Yamaha Motors
Flange Bolt95812-08020-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
-15%
Special Washer
6
Yamaha Motors
Special Washer5TG-28215-00-00
Required: 2
WASHER, SPECIAL
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-15%
COLLAR
8
Yamaha Motors
COLLAR90387-06153-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
