2003 ATV YFM400FWAN - YFM400FWAN (5TE3) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

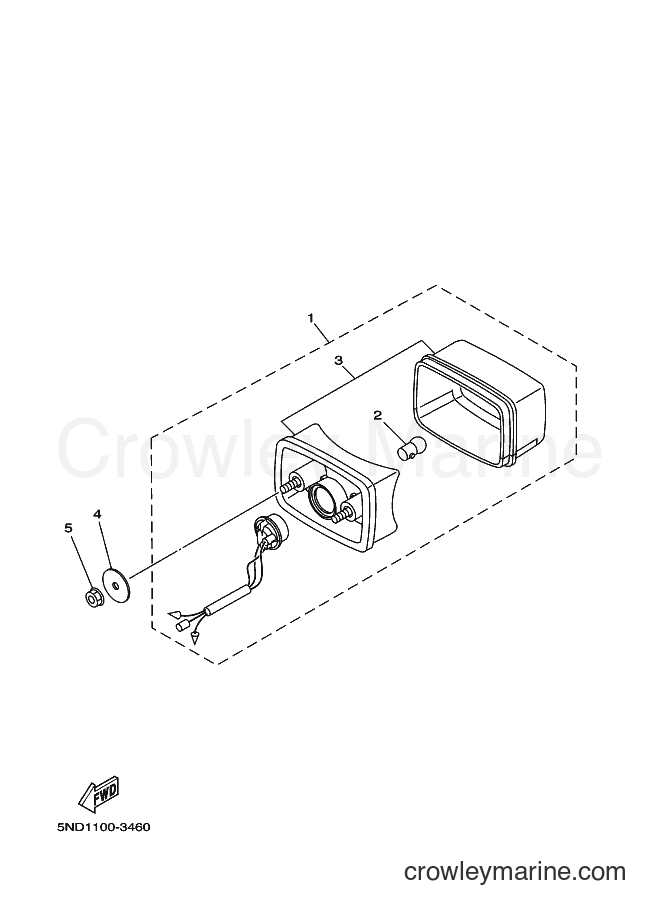

Yamaha Motors YFM400FWAN (5TE3) [010] - TAILLIGHT

Change View:

-50%

Yamaha Motors

TAILLIGHT UNIT ASSEMBLY5KM-84710-01-00

Required: 1

TAILLIGHT UNIT ASSY

Supersedes: 5KM-84710-00-00

In stock

Only 2 remaining

~~$62.99~~

$31.49

You save $31.49

-50%

. BULB (12V-21/5W)

Supersedes: 1A2-84714-41-00

In stock

Only 3 remaining

~~$15.49~~

$7.74

You save $7.74

More details

-50%

Yamaha Motors

TAILLIGHT UNIT ASSEMBLY5KM-84710-01-00

Required: 1

. LENS, TAILLIGHT

Supersedes: 5KM-8472C-10-00

In stock

Only 2 remaining

~~$62.99~~

$31.49

You save $31.49

More details

-15%

Yamaha Motors

Plate Washer90201-06074-00

Required: 2

WASHER, PLATE

~~$10.49~~

$8.92

You save $1.57

More details

-15%

Yamaha Motors

Flange Nut95707-06300-00

Required: 2

NUT, FLANGE

~~$3.75~~

$3.19

You save $0.56

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
