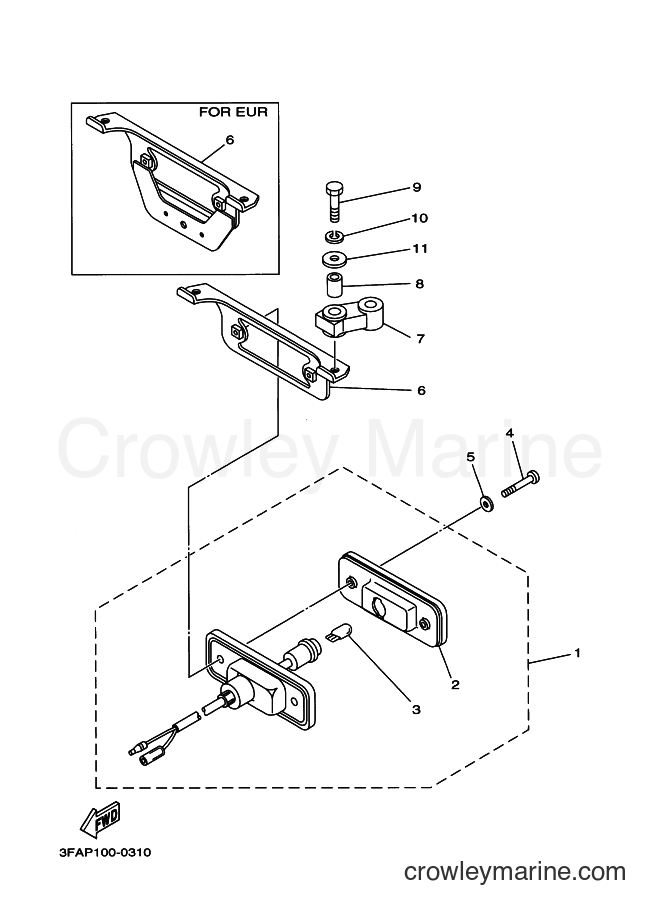

2000 ATV YFA-1 - YFA-1 (3FAR) [020] TAILLIGHT diagram
![Yamaha Motors YFA-1 (3FAR) [020] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/44krBwZD.png)
-15%
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY38W-84710-00-00
Required: 1
TAILLIGHT UNIT ASSY
No longer availableSearch Nationwide Inventory
$42.49
You save $7.50
-15%
2
Yamaha Motors
TAIL LIGHT LENS38W-84721-00-00
Required: 1
. LENS, TAILLIGHT
No longer availableSearch Nationwide Inventory
$11.47
You save $2.02
-15%
3
Yamaha Motors
3F9-84744-00-XX3F9-84744-00-00
Required: 1
. BULB(12V-3.8W)
Supersedes: 38W-84714-00-00
No longer availableSearch Nationwide Inventory
$1.49
You save $0.26
-15%
4
Yamaha Motors
Pan Head Screw98517-04020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-04020-00
$8.07
You save $1.42
-15%
$1.57
You save $0.28
-15%
6
Yamaha Motors
TAIL LIGHT BRACKET1UY-84702-10-00
Required: 1
BRACKET, TAILLIGHT
Supersedes: 1UY-84702-00-00
No longer availableSearch Nationwide Inventory
$27.19
You save $4.80
-15%
7
Yamaha Motors
TAIL DAMPER38W-84736-00-00
Required: 2
DAMPER, TAIL 1
$6.37
You save $1.12
-15%
8
Yamaha Motors
COLLAR90387-07598-00
Required: 4
COLLAR
Supersedes: 90387-06299-00
$5.52
You save $0.97
-15%
9
Yamaha Motors
Bolt97017-06025-00
Required: 4
BOLT
Supersedes: 97007-06025-00
$3.87
You save $0.68
-50%
10
Yamaha Motors
Spring Washer92907-06100-00
Required: 4
WASHER, SPRING
In stock
Only 1 remaining
$0.65
You save $0.65
-15%
$0.55
You save $0.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
