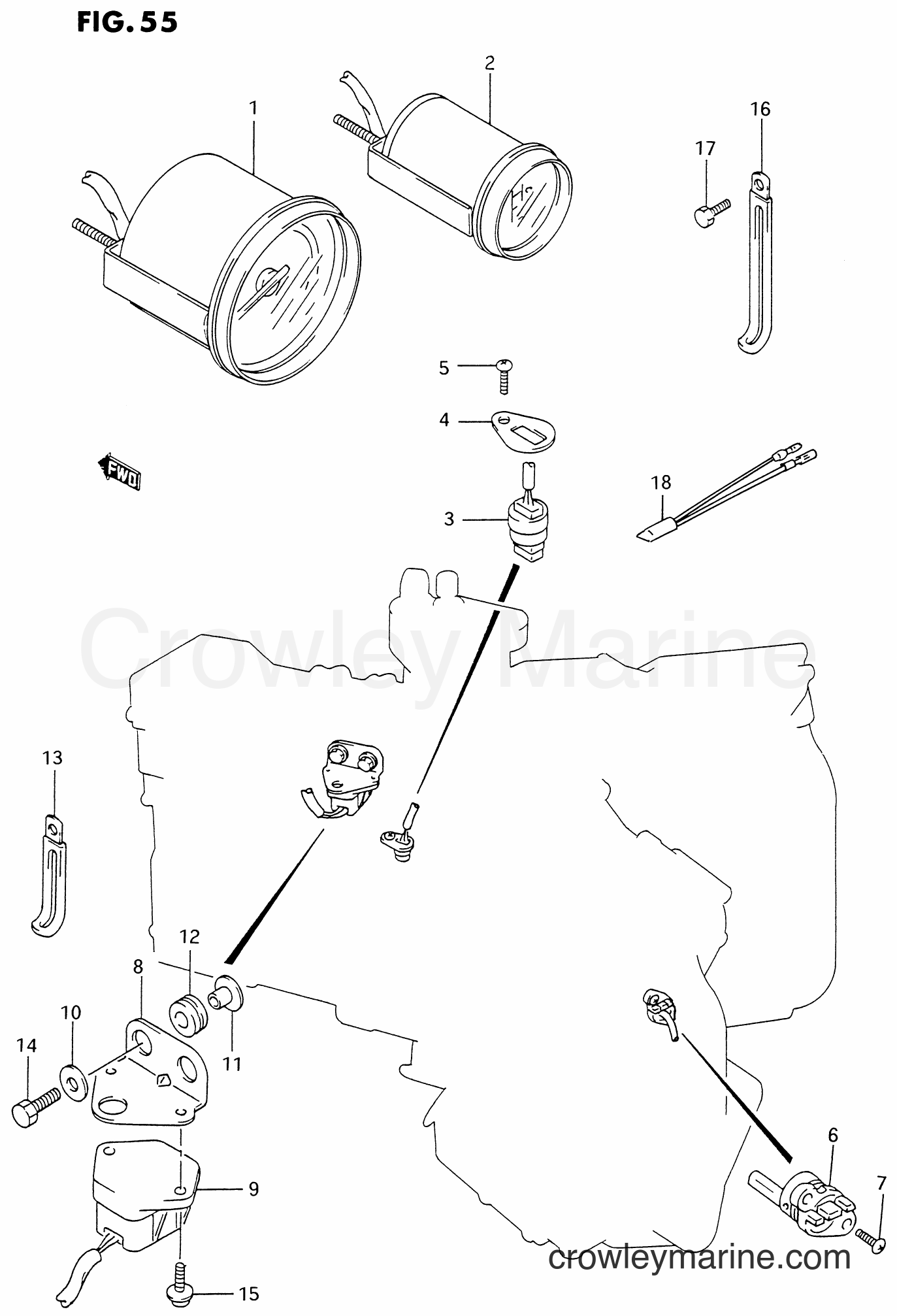

1994 Two-Stroke Outboard 225 - DT225 SENSOR & METER (DT200EFI/150EFI ~MODEL:97) diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part34200-92E02
Required: 1
TACHOMETER ASSY
No longer availableSearch Nationwide Inventory
$99.41
You save $17.54
-15%
2
Suzuki Marine
Obsolete Suzuki Part34700-92E11
Required: 1
GAUGE ASSY, MONITORING
No longer availableSearch Nationwide Inventory
$195.46
You save $34.49
-20%
3
Suzuki Marine
SENSOR,CYL TEMP34830-92E00
Required: 1
SENSOR, AIR TEMP
No longer availableSearch Nationwide Inventory
$45.89
You save $11.47
-15%
4
Suzuki Marine
SUPORTER,ENGINE34853-94700
Required: 1
SUPPORTER, AIR TEMP
No longer availableSearch Nationwide Inventory
$3.26
You save $0.57
-50%
5
Suzuki Marine
SCREW 6X12 (SUS09125-06069
Required: 1
SCREW, AIR TEMP SENSOR
In stock
Only 1 remaining
$1.20
You save $1.20
-15%
6
Suzuki Marine
PLUG,WATER SNSR34876-92E00
Required: 2
PLUG, WATER SENSOR HOLE
No longer availableSearch Nationwide Inventory
$10.74
You save $1.89
-50%
7
Suzuki Marine
Screw (M8 X 40)13765-48GV0
Required: 4
SCREW, WATER SNSR HOLE PLUG
Supersedes: 03212-05163
In stock
Only 2 remaining
$1.44
You save $1.44
-15%
8
Suzuki Marine
Obsolete Suzuki Part34881-92E00
Required: 1
BRACKET, AIR PRESSURE SENSOR
No longer availableSearch Nationwide Inventory
$10.78
You save $1.90
-15%
9
Suzuki Marine
Obsolete Suzuki Part18590-53A01
Required: 1
SENSOR, AIR PRESSURE
No longer availableSearch Nationwide Inventory
$206.00
You save $36.35
-15%
10
Suzuki Marine
WASHER 6.5X18X109160-06084
Required: 2
WASHER, AIR PRESSURE
$1.88
You save $0.33
-15%
11
Suzuki Marine
WASHER,THROTTLE09169-06062
Required: 2
SPACER, AIR PRESSURE
$2.64
You save $0.47
-15%
12
Suzuki Marine
Cushion09320-08501
Required: 2
CUSHION, AIR PRESSURE
$3.51
You save $0.62
-15%
13
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP, AIR PRESSURE
Supersedes: 09404-06432
$1.83
You save $0.32
-15%
14
Suzuki Marine
Screw (M8 X 40)02162-06257
Required: 1
BOLT, AIR PRESSURE
$1.44
You save $0.26
-15%
15
Suzuki Marine
Screw (M8 X 40)02142-05127
Required: 2
BOLT, AIR PRESSURE
$2.09
You save $0.37
-15%
16
Suzuki Marine
Clamp09404-06435
Required: 1
CLAMP, PTT MOTOR CABLE
$3.41
You save $0.60
-15%
17
Suzuki Marine
BOLT02162-06127
Required: 1
BOLT, PTT MOTOR CABLE
$1.44
You save $0.25
-15%
18
Suzuki Marine
RESISTOR,TEMP S34826-92E00
Required: 1
RESISTOR, TEMP SENSOR
No longer availableSearch Nationwide Inventory
$10.74
You save $1.89
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
