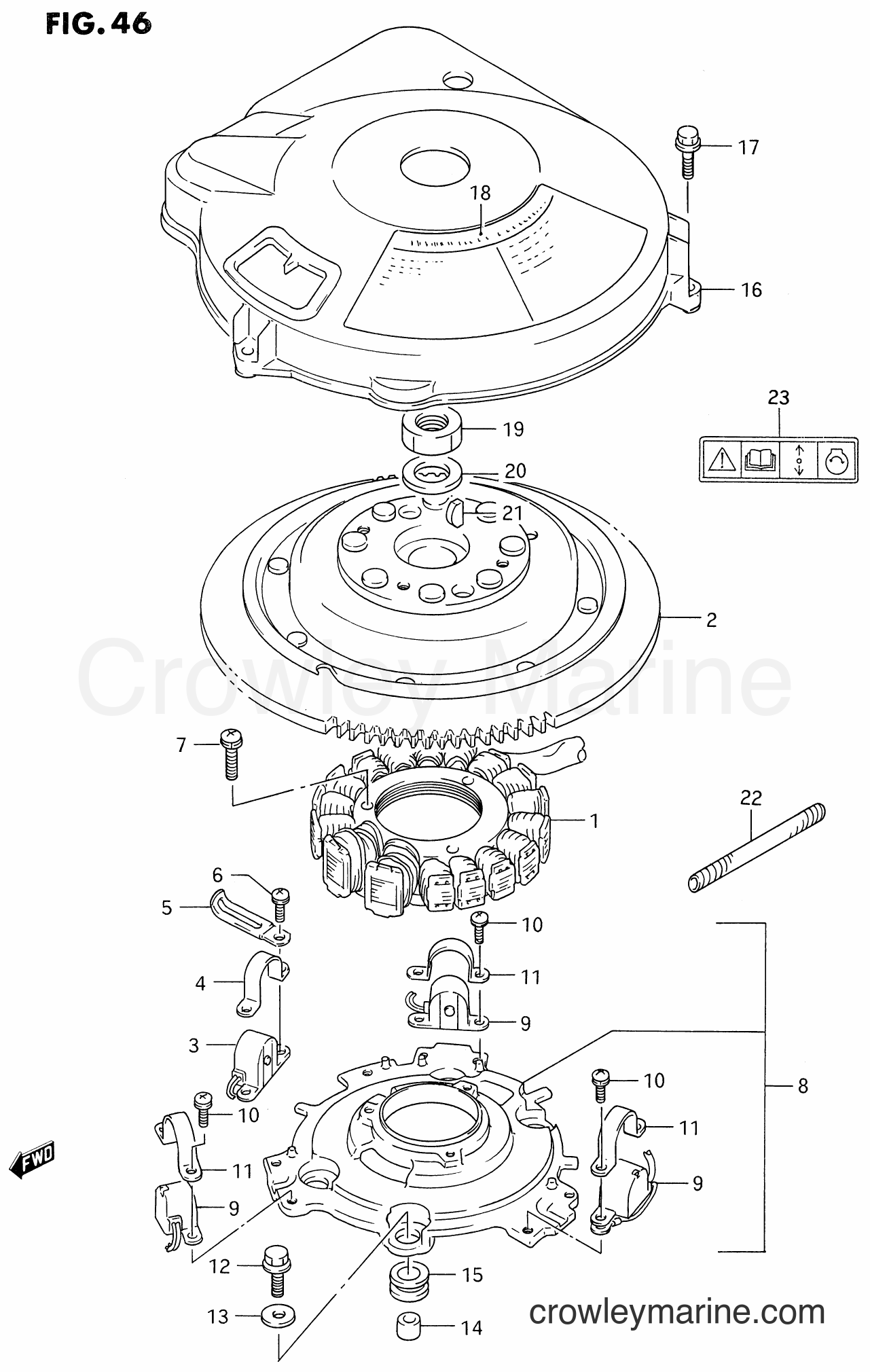

1991 Two-Stroke Outboard 225 - DT225 MAGNETO (MODEL:91~00)(*) diagram
-15%
1
Suzuki Marine
Stator32101-92E11
Required: 1
COIL, STATOR
Supersedes: 32101-92E10
No longer availableSearch Nationwide Inventory
$749.92
You save $132.34
-15%
1
Suzuki Marine
Stator32101-92E11
Required: 1
COIL, STATOR
No longer availableSearch Nationwide Inventory
$749.92
You save $132.34
-15%
2
Suzuki Marine
FLYWHEEL ASSY,M32102-92E00
Required: 1
FLYWHEEL, MAGNETO
No longer availableSearch Nationwide Inventory
$961.43
You save $169.66
-50%
3
Suzuki Marine
COIL,GEAR COUNT32150-87E21
Required: 1
COIL, GEAR COUNTER
Supersedes: 32150-87E20
In stock
Only 1 remaining
$61.30
You save $61.30
-15%
No longer availableSearch Nationwide Inventory
$2.70
You save $0.48
-15%
5
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP
Supersedes: 09404-06432
$1.83
You save $0.32
-50%
6
Suzuki Marine
SCREW 5X1202112-35127
Required: 2
SCREW, COUNTER
In stock
Only 2 remaining
$0.98
You save $0.98
-50%
7
Suzuki Marine
Screw (M8 X 40)02112-36257
Required: 3
SCREW, COIL BASE
In stock
Only 3 remaining
$1.36
You save $1.36
-15%
8
Suzuki Marine
STATOR ASSY,IGN32103-92E10
Required: 1
STATOR ASSY, IGNITION COIL
No longer availableSearch Nationwide Inventory
$349.39
You save $61.66
-15%
9
Suzuki Marine
COIL,IGNITION T32160-87D11
Required: 3
.COIL, IGNITION TIMING
No longer availableSearch Nationwide Inventory
$119.93
You save $21.16
-50%
10
Suzuki Marine
SCREW 5X1202112-35127
Required: 6
.SCREW, COIL IGNITION TIMING
In stock
Only 2 remaining
$0.98
You save $0.98
-15%
11
Suzuki Marine
Obsolete Suzuki Part32156-87D00
Required: 1
.BAND, COIL IGNITION TIMING
No longer availableSearch Nationwide Inventory
$2.70
You save $0.48
-15%
12
Suzuki Marine
BOLT01500-0620A
Required: 4
BOLT, MAGNETO STATOR
Supersedes: 01500-06203
$1.88
You save $0.33
-15%
13
Suzuki Marine
WASHER HANDLE C09160-06052
Required: 4
WASHER, MAGNETO STATOR
$1.54
You save $0.27
-15%
14
Suzuki Marine
Obsolete Suzuki Part09180-06223
Required: 4
SPACER, MAGNETO STATOR
No longer availableSearch Nationwide Inventory
$2.31
You save $0.41
-20%
15
Suzuki Marine
Cushion09320-10075
Required: 4
CUSHION, MAGNETO STATOR
Supersedes: 09320-10008
$1.94
You save $0.49
-15%
16
Suzuki Marine
COVER,MAGNETO11511-92E00
Required: 1
COVER, MAGNETO
No longer availableSearch Nationwide Inventory
$29.32
You save $5.17
-15%
17
Suzuki Marine
Screw (M8 X 40)02162-06257
Required: 3
BOLT, MAGNETO COVER
$1.44
You save $0.26
-15%
18
Suzuki Marine
Obsolete Suzuki Part61911-92E01
Required: 1
MARK, EMER STR INSTR
No longer availableSearch Nationwide Inventory
$4.94
You save $0.87
-15%
18
Suzuki Marine
MARK,EMER STG61911-87E00
Required: 1
MARK, EMER STR INSTR
No longer availableSearch Nationwide Inventory
$7.11
You save $1.25
-15%
19
Suzuki Marine
Nut09140-18007
Required: 1
NUT, MAGNETO FLYWHEEL
No longer availableSearch Nationwide Inventory
$3.20
You save $0.57
-15%
20
Suzuki Marine
WASHER09160-18011
Required: 1
WASHER, MAGNETO FLYWHEEL
$5.80
You save $1.02
-20%
21
Suzuki Marine
5MM WOODRUFF KE08341-31059
Required: 1
KEY, MAGNETO FLYWHEEL
$2.49
You save $0.62
-15%
22
Suzuki Marine
Supersedes to 33833-91J0038423-95510
Required: 1
TUBE, MAGNETO LEAD WIRE
No longer availableSearch Nationwide Inventory
$2.58
You save $0.46
-15%
22
Suzuki Marine
Supersedes to 33833-91J0038423-95510
Required: 1
TUBE, MAGNETO LEAD WIRE
No longer availableSearch Nationwide Inventory
$2.58
You save $0.46
-15%
23
Suzuki Marine
LABEL(S.I.G.P.)69711-93E11
Required: 1
LABEL, CAUTION S.I.G.P
Supersedes: 69711-93E00
$4.33
You save $0.77
Suzuki Marine
N/A-*- : DT225 MOD
Required: 1
N/A
Price unavailable
Suzuki Marine
N/ADT225G MO
Required: 1
N/A
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
