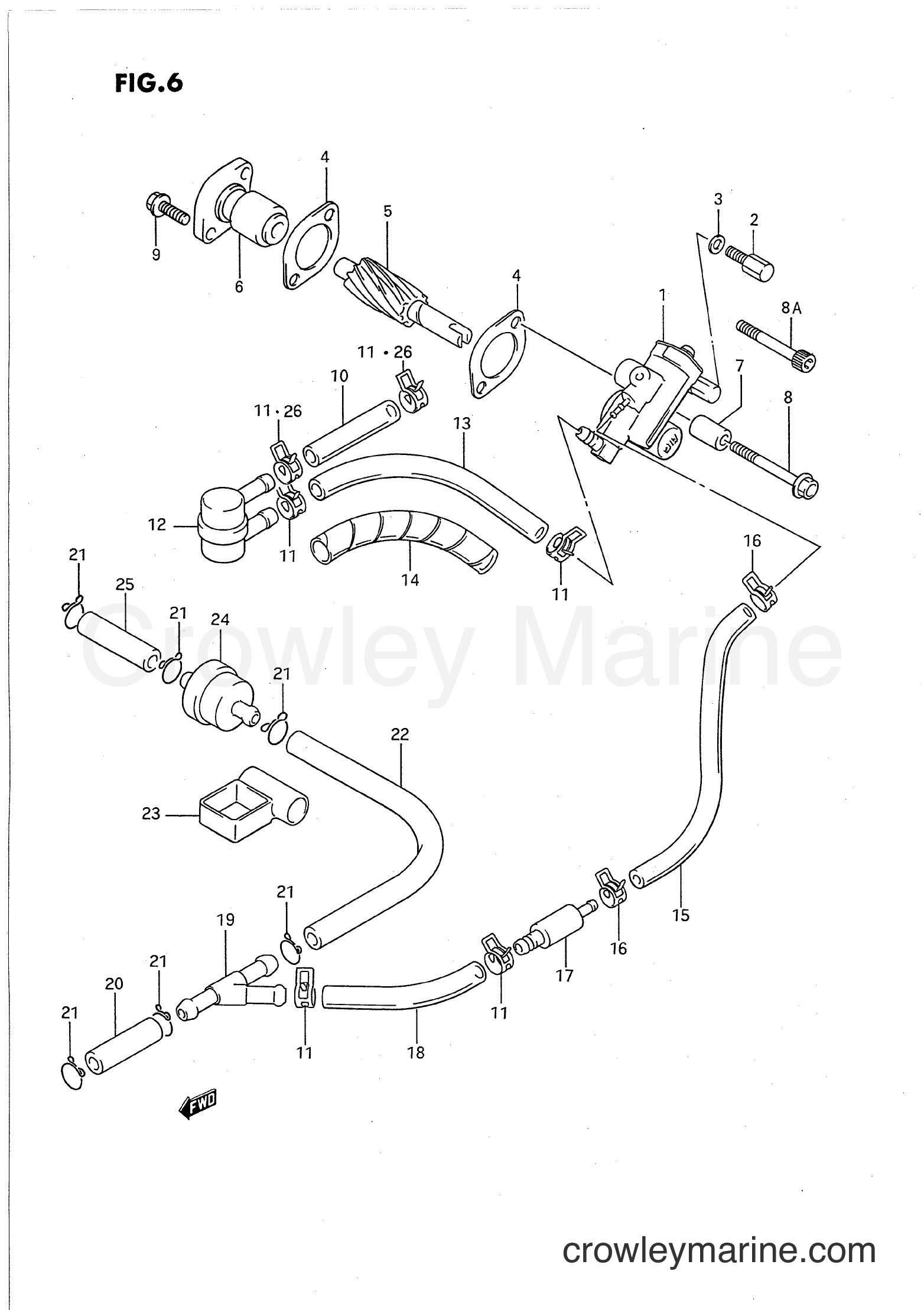

1991 Two-Stroke Outboard 9.9 - DT9.9C OIL PUMP diagram
-15%
1
Suzuki Marine
PUMP ASSY,OIL16100-92D11
Required: 1
PUMP ASSY, OIL
No longer availableSearch Nationwide Inventory
$109.65
You save $19.35
-15%
2
Suzuki Marine
BLEED,SCREW16191-94400
Required: 1
.SCREW, BLEED
$4.83
You save $0.85
-15%
3
Suzuki Marine
Obsolete Suzuki Part16192-94400
Required: 1
.GASKET, BLEED
No longer availableSearch Nationwide Inventory
$0.92
You save $0.16
-15%
4
Suzuki Marine
GASKET,OIL PUMP16731-92D10
Required: 2
GASKET, OIL PUMP
No longer availableSearch Nationwide Inventory
$2.72
You save $0.48
-15%
5
Suzuki Marine
Obsolete Suzuki Part16331-92D00
Required: 1
GEAR, OIL PUMP DRIVEN
No longer availableSearch Nationwide Inventory
$19.05
You save $3.36
-15%
6
Suzuki Marine
Obsolete Suzuki Part16340-92D00
Required: 1
RETAINER, OIL PUMP
No longer availableSearch Nationwide Inventory
$16.13
You save $2.85
-15%
7
Suzuki Marine
Obsolete Suzuki Part09180-05056
Required: 2
SPACER, OIL PUMP
Supersedes: 09180-05030
No longer availableSearch Nationwide Inventory
$1.75
You save $0.31
-15%
$2.92
You save $0.51
-15%
No longer availableSearch Nationwide Inventory
$1.44
You save $0.25
-15%
$2.20
You save $0.39
-15%
10
Suzuki Marine
Supersedes to 09351-50803-00A09351-50803-600
Required: 1
HOSE, OIL (OIL TANK TO FILTER
No longer availableSearch Nationwide Inventory
$1.54
You save $0.27
-20%
10
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE, OIL (OIL TANK TO FILTER
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.50
You save $1.88
-15%
$1.96
You save $0.35
-15%
$1.96
You save $0.35
-15%
No longer availableSearch Nationwide Inventory
$21.79
You save $3.85
-15%
13
Suzuki Marine
Obsolete Suzuki Part16921-92D00
Required: 1
HOSE, OIL (FILTER TO OIL PUMP
No longer availableSearch Nationwide Inventory
$9.33
You save $1.65
-15%
$8.23
You save $1.45
-15%
$8.23
You save $1.45
-15%
15
Suzuki Marine
HOSE,2.5X7X60009351-25703-600
Required: 1
HOSE, OIL (OIL PUMP TO CHECK VALVE)
No longer availableSearch Nationwide Inventory
$5.17
You save $0.91
-15%
15
Suzuki Marine
Hose09355-25705-600
Required: 1
HOSE, OIL (OIL PUMP TO CHECK VALVE)
No longer availableSearch Nationwide Inventory
$6.00
You save $1.06
-15%
In stock
Only 1 remaining
$2.27
You save $0.40
-15%
17
Suzuki Marine
Supersedes to 16710-92E0116710-92EZ0
Required: 1
VALVE, CHECK
Supersedes: 16710-92E00
No longer availableSearch Nationwide Inventory
$9.78
You save $1.72
-15%
18
Suzuki Marine
Supersedes to 09351-50803-00A09351-50803-600
Required: 1
HOSE, OIL (VALVE TO 3WAY)
No longer availableSearch Nationwide Inventory
$1.54
You save $0.27
-15%
18
Suzuki Marine
Supersedes to 09351-50803-00A09351-50803-600
Required: 1
HOSE, OIL (VALVE TO 3WAY)
No longer availableSearch Nationwide Inventory
$1.54
You save $0.27
-15%
No longer availableSearch Nationwide Inventory
$3.09
You save $0.55
-20%
20
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (CONNEC TO 3WAY)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.50
You save $1.88
-20%
In stock
Only 1 remaining
$1.88
You save $0.47
-20%
22
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (3WAY TO FILTER)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.50
You save $1.88
-15%
No longer availableSearch Nationwide Inventory
$1.50
You save $0.26
-20%
In stock
Only 2 remaining
$9.38
You save $2.34
-20%
25
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
HOSE (FILTER TO CARB)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.50
You save $1.88
-20%
$1.77
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
