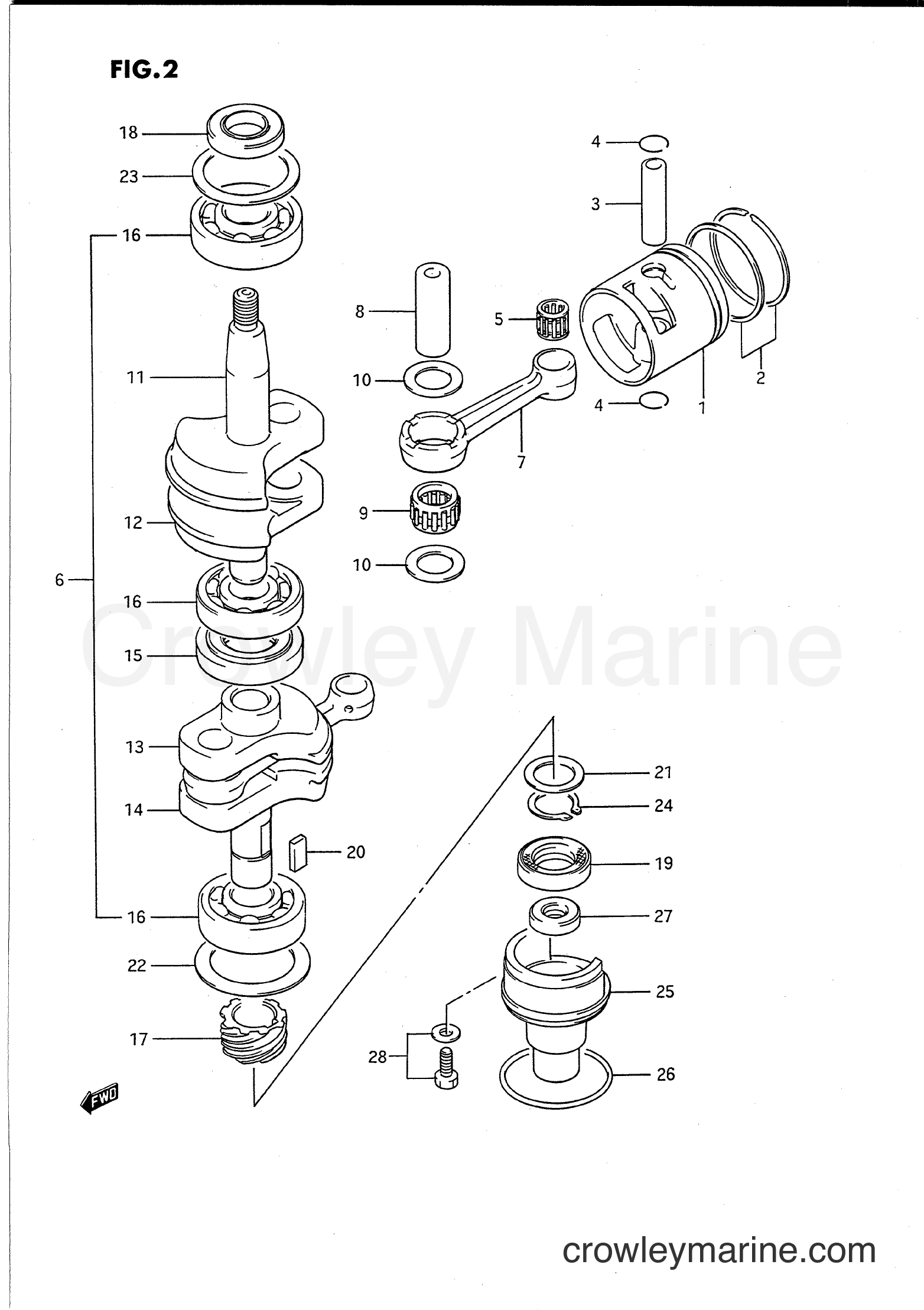

1988 Two-Stroke Outboard 8 - DT8C CRANKSHAFT diagram
-15%
No longer availableSearch Nationwide Inventory
$73.95
You save $13.05
-15%
1
Suzuki Marine
Obsolete Suzuki Part12100-92D21-025
Required: 2
PISTON (OS:0.25)
Supersedes: 12110-92D21-025
No longer availableSearch Nationwide Inventory
$46.08
You save $8.13
-15%
1
Suzuki Marine
Obsolete Suzuki Part12100-92D21-025
Required: 2
PISTON SET (OS:0.25)
No longer availableSearch Nationwide Inventory
$46.08
You save $8.13
-15%
1
Suzuki Marine
Obsolete Suzuki Part12100-92D21-050
Required: 2
PISTON SET (OS:0.50)
No longer availableSearch Nationwide Inventory
$72.74
You save $12.84
-15%
2
Suzuki Marine
RING SET,PISTON12140-92D21
Required: 2
RING SET, PISTON
No longer availableSearch Nationwide Inventory
$31.02
You save $5.48
-15%
2
Suzuki Marine
Obsolete Suzuki Part12140-40A10-050
Required: 2
RING SET, PISTON (OS:0.50)
No longer availableSearch Nationwide Inventory
$18.56
You save $3.28
-50%
In stock
Only 1 remaining
$2.62
You save $2.62
-15%
$1.51
You save $0.27
-15%
5
Suzuki Marine
RN 12X16X16 BRG09263-12023
Required: 2
BEARING (12X16X16)
$10.86
You save $1.92
-15%
6
Suzuki Marine
Obsolete Suzuki Part12200-92D11
Required: 1
CRANKSHAFT ASSY
No longer availableSearch Nationwide Inventory
$367.99
You save $64.94
-15%
6
Suzuki Marine
Obsolete Suzuki Part12200-92D12
Required: 1
CRANKSHAFT ASSY
No longer availableSearch Nationwide Inventory
$395.30
You save $69.76
-15%
7
Suzuki Marine
Connecting Rod12161-92D00
Required: 2
.ROD, CONNECTING
No longer availableSearch Nationwide Inventory
$45.29
You save $7.99
-15%
No longer availableSearch Nationwide Inventory
$19.02
You save $3.36
-15%
9
Suzuki Marine
RC 17X24X14 BR109263-17035
Required: 2
.BEARING (17X24X14)
No longer availableSearch Nationwide Inventory
$17.05
You save $3.01
-15%
10
Suzuki Marine
WASHER, SHIM09181-17223
Required: 4
.THRUST WASHER
Supersedes: 08211-17301
$3.22
You save $0.57
-15%
10
Suzuki Marine
WASHER, SHIM09181-17223
Required: 4
.THRUST WASHER
$3.22
You save $0.57
-15%
11
Suzuki Marine
Obsolete Suzuki Part12221-92D02
Required: 1
.CRANKSHAFT, UPPER
No longer availableSearch Nationwide Inventory
$82.40
You save $14.54
-15%
12
Suzuki Marine
Obsolete Suzuki Part12231-92D02
Required: 1
.WHEEL, MIDDLE UPPER
No longer availableSearch Nationwide Inventory
$76.58
You save $13.52
-15%
13
Suzuki Marine
Obsolete Suzuki Part12232-92D01
Required: 1
.WHEEL, MIDDLE UNDER
No longer availableSearch Nationwide Inventory
$80.04
You save $14.12
-15%
14
Suzuki Marine
Obsolete Suzuki Part12240-92D11
Required: 1
.CRANKSHAFT, UNDER
No longer availableSearch Nationwide Inventory
$76.58
You save $13.51
-15%
15
Suzuki Marine
SEAL,OIL,28X52X09289-28009
Required: 1
.OIL SEAL (28X52X9)
No longer availableSearch Nationwide Inventory
$12.92
You save $2.28
-15%
No longer availableSearch Nationwide Inventory
$12.03
You save $2.12
-15%
16
Suzuki Marine
B1 20X47X09 BEA09262-20003
Required: 3
.BEARING (20X52X15)
No longer availableSearch Nationwide Inventory
$24.36
You save $4.30
-15%
16
Suzuki Marine
B1 20X52X15 BEA09262-20073
Required: 3
.BEARING (20X52X15)
$24.82
You save $4.38
-15%
17
Suzuki Marine
GEAR,OIL PUMP D16321-92D00
Required: 1
GEAR, OIL PUMP DRIVE
No longer availableSearch Nationwide Inventory
$62.75
You save $11.07
-15%
18
Suzuki Marine
CRANKSHAFT OIL09283-20006
Required: 1
OIL SEAL (20X37X7)
$5.82
You save $1.03
-20%
19
Suzuki Marine
SEAL,OIL(20X37X09283-20072
Required: 1
OIL SEAL (20X37X9)
Supersedes: 09283-20018
$5.82
You save $1.46
-15%
No longer availableSearch Nationwide Inventory
$2.43
You save $0.43
-15%
21
Suzuki Marine
WASHER08211-20301
Required: 1
WASHER (20X30X1.0)
$2.52
You save $0.45
21
Suzuki Marine
WASHER09181-20195
Required: 1
WASHER
Price unavailable
-15%
22
Suzuki Marine
LOWER GIMBAL THRUST WASHER08211-40552
Required: 1
WASHER (40X55X1.5)
No longer availableSearch Nationwide Inventory
$6.03
You save $1.06
-15%
23
Suzuki Marine
Shim09181-40186
Required: 1
WASHER (40X52X0.5)
Supersedes: 08221-40525
$4.33
You save $0.77
-15%
$4.33
You save $0.77
-15%
24
Suzuki Marine
Circle Clip08331-3120A
Required: 1
CIRCLIP
Supersedes: 08331-31206
$2.15
You save $0.38
-15%
25
Suzuki Marine
Obsolete Suzuki Part11431-92D00
Required: 1
HOUSING, UNDER OIL SEAL
No longer availableSearch Nationwide Inventory
$20.97
You save $3.70
-15%
No longer availableSearch Nationwide Inventory
$1.43
You save $0.25
-20%
27
Suzuki Marine
SEAL,OIL,12X24X09282-12008
Required: 1
OIL SEAL (12X24X4.5)
In stock
Only 2 remaining
$5.74
You save $1.44
-20%
28
Suzuki Marine
BOLT,6X1509116-06094
Required: 1
BOLT
Supersedes: 09116-06092
In stock
Only 2 remaining
$2.09
You save $0.52
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
