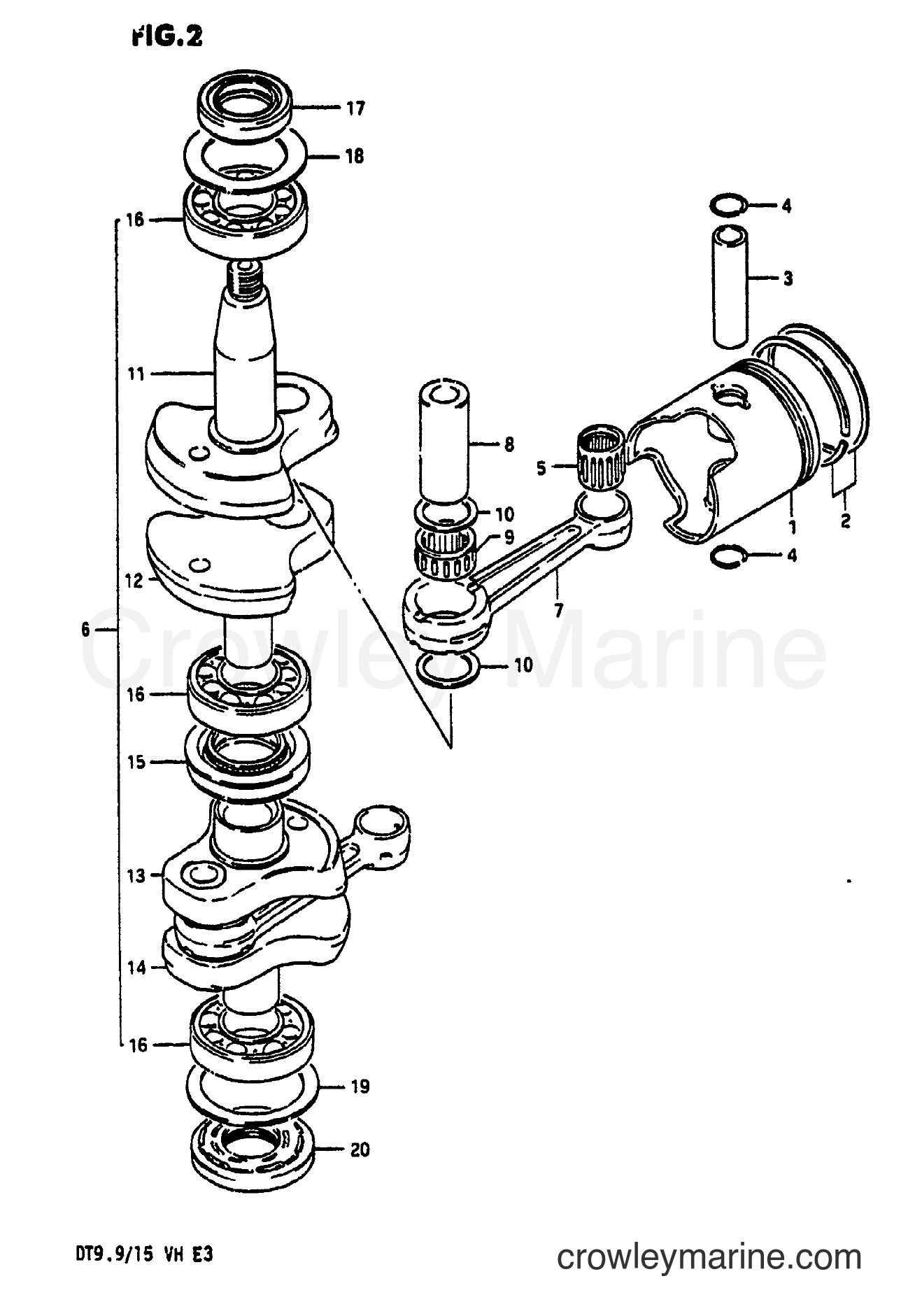

1987 Two-Stroke Outboard 9.9 - DT9.9 CRANKSHAFT diagram
-15%
No longer availableSearch Nationwide Inventory
$26.53
You save $4.68
-15%
1
Suzuki Marine
Supersedes to 12100-93120-02512110-93120-025
Required: 2
PISTON (0S:0.25)
Supersedes: 12110-93130-025
No longer availableSearch Nationwide Inventory
$26.24
You save $4.63
-15%
No longer availableSearch Nationwide Inventory
$29.20
You save $5.15
-15%
2
Suzuki Marine
Piston Ring12140-93121
Required: 2
RING SET, PISTON
No longer availableSearch Nationwide Inventory
$29.77
You save $5.25
-15%
2
Suzuki Marine
Obsolete Suzuki Part12140-93121-025
Required: 2
RING SET, PISTON (0S:0.25)
No longer availableSearch Nationwide Inventory
$18.59
You save $3.28
-15%
2
Suzuki Marine
Obsolete Suzuki Part12140-93121-050
Required: 2
RING SET, PISTON (0S:0.50)
No longer availableSearch Nationwide Inventory
$18.56
You save $3.28
-15%
No longer availableSearch Nationwide Inventory
$6.51
You save $1.15
-15%
In stock
Only 2 remaining
$1.51
You save $0.27
-15%
5
Suzuki Marine
ROLLR BRG,14X1809263-14022
Required: 2
BEARING (14x18x19.8)
Supersedes: 09263-14019
$12.95
You save $2.29
-15%
6
Suzuki Marine
Obsolete Suzuki Part12200-93904
Required: 1
CRANKSHAFT ASSY
No longer availableSearch Nationwide Inventory
$389.69
You save $68.77
-15%
7
Suzuki Marine
Obsolete Suzuki Part12161-93902
Required: 2
.ROD, CONNECTING
No longer availableSearch Nationwide Inventory
$25.74
You save $4.54
-15%
No longer availableSearch Nationwide Inventory
$9.71
You save $1.71
-15%
9
Suzuki Marine
RN 20X27X16 BRG09263-20L03
Required: 2
.BEARING
Supersedes: 09263-20051
$33.35
You save $5.88
-15%
10
Suzuki Marine
WASHER09160-20052
Required: 4
.THRUST WASHER
$5.25
You save $0.93
-15%
11
Suzuki Marine
Obsolete Suzuki Part12221-93902
Required: 1
.CRANKSHAFT, UPPER
No longer availableSearch Nationwide Inventory
$66.72
You save $11.78
-15%
12
Suzuki Marine
Obsolete Suzuki Part12231-93901
Required: 1
.WHEEL, MIDDLE UPPER
No longer availableSearch Nationwide Inventory
$63.53
You save $11.21
-15%
13
Suzuki Marine
Obsolete Suzuki Part12232-93900
Required: 1
.WHEEL, MIDDLE UNDER
No longer availableSearch Nationwide Inventory
$63.72
You save $11.24
-15%
14
Suzuki Marine
Obsolete Suzuki Part12240-93900
Required: 1
.CRANKSHAFT, UNDER
No longer availableSearch Nationwide Inventory
$75.71
You save $13.36
-15%
15
Suzuki Marine
SEAL,OIL(30X56.09289-30L01
Required: 1
.OIL SEAL
Supersedes: 09289-30008
No longer availableSearch Nationwide Inventory
$28.05
You save $4.95
-15%
16
Suzuki Marine
B1 25X52X15 BEA09262-25078
Required: 3
.BEARING (25x52x15)
$31.84
You save $5.62
-15%
17
Suzuki Marine
DRIVE SHAFT OIL09283-25035
Required: 1
OIL SEAL (25x40x7)
$6.98
You save $1.23
-15%
No longer availableSearch Nationwide Inventory
$0.93
You save $0.16
-15%
No longer availableSearch Nationwide Inventory
$3.08
You save $0.54
-15%
20
Suzuki Marine
Oil Seal09283-25075
Required: 1
OIL SEAL (24x52x7)
$14.71
You save $2.60
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
