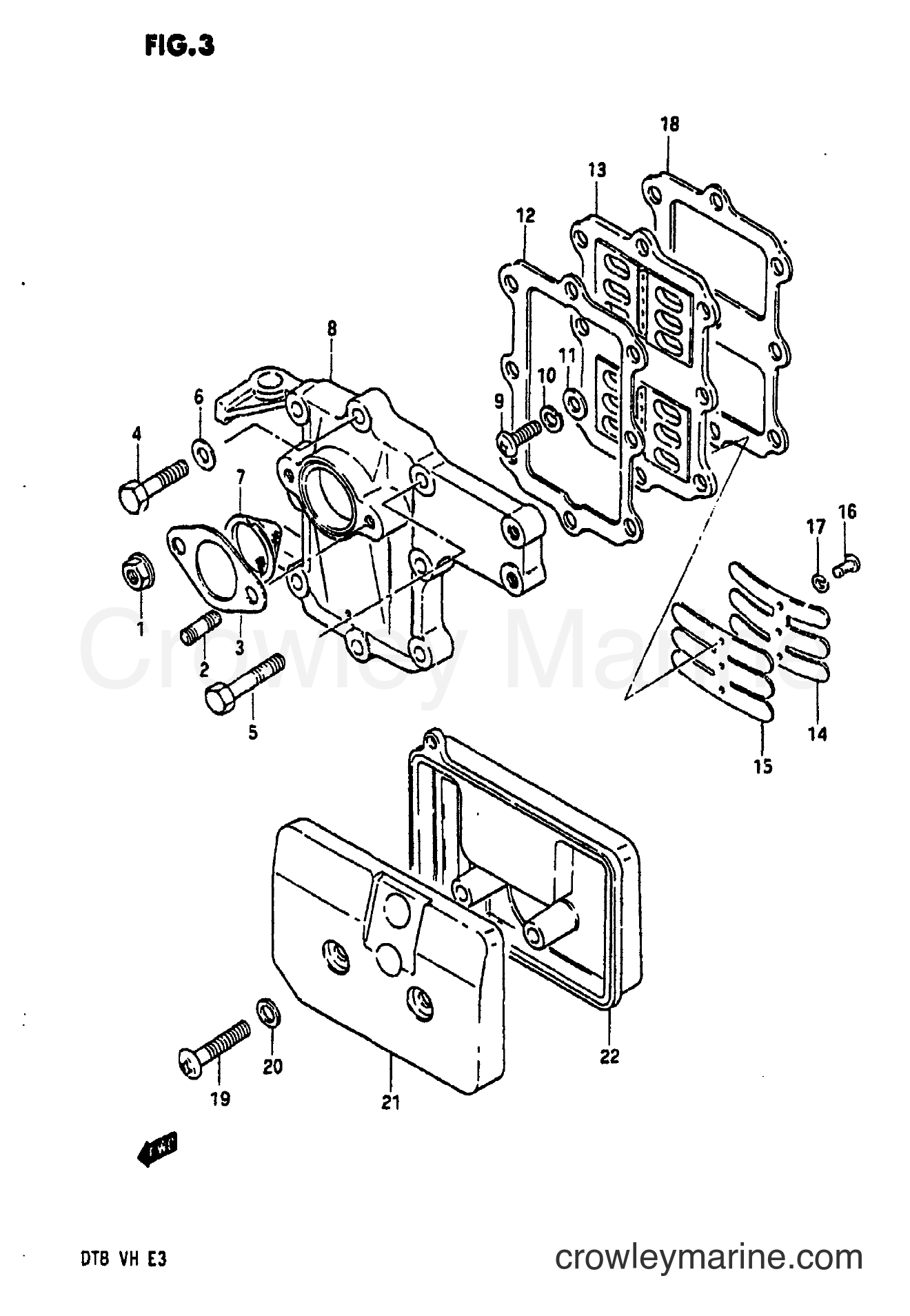

1987 Two-Stroke Outboard 8 - DT8 REED VALVE diagram
-15%
1
Suzuki Marine
Nut08316-10067
Required: 2
NUT
Supersedes: 08316-16062
$2.41
You save $0.42
-15%
No longer availableSearch Nationwide Inventory
$0.48
You save $0.08
-15%
3
Suzuki Marine
GASKET,CARB (NA13125-98110
Required: 1
GASKET, CARBURETOR
Supersedes: 13125-98100
No longer availableSearch Nationwide Inventory
$2.69
You save $0.47
-15%
4
Suzuki Marine
BOLT01500-06307
Required: 5
BOLT
Supersedes: 01107-06302
$2.69
You save $0.48
-15%
5
Suzuki Marine
BOLT01500-06357
Required: 1
BOLT
Supersedes: 01107-06352
$2.92
You save $0.51
-15%
6
Suzuki Marine
WASHER08322-01067
Required: 6
WASHER
Supersedes: 08322-21062
In stock
Only 1 remaining
$1.98
You save $0.35
-15%
7
Suzuki Marine
INLET CASE NET13130-98100
Required: 1
NET, INLET CASE
No longer availableSearch Nationwide Inventory
$9.65
You save $1.70
-15%
No longer availableSearch Nationwide Inventory
$26.63
You save $4.70
-15%
9
Suzuki Marine
SCREW 6X1602112-06167
Required: 1
SCREW, VALVE SEAT
Supersedes: 02112-06162
$1.51
You save $0.27
-50%
10
Suzuki Marine
Lock Washer08321-01067
Required: 1
LOCK WASHER
Supersedes: 08321-21062
In stock
5+ in stock
$1.15
You save $1.15
-15%
11
Suzuki Marine
WASHER08322-01067
Required: 1
WASHER
Supersedes: 08322-21062
In stock
Only 1 remaining
$1.98
You save $0.35
-15%
12
Suzuki Marine
Supersedes to 13121-9812013121-98110
Required: 1
GASKET, INLET
Supersedes: 13121-98100
No longer availableSearch Nationwide Inventory
$2.86
You save $0.50
-15%
13
Suzuki Marine
Obsolete Suzuki Part13150-98101
Required: 1
VALVE ASSY, REED
No longer availableSearch Nationwide Inventory
$37.60
You save $6.63
-15%
14
Suzuki Marine
Obsolete Suzuki Part13152-98100
Required: 2
.STOPPER, REED VALVE
No longer availableSearch Nationwide Inventory
$2.07
You save $0.37
-15%
No longer availableSearch Nationwide Inventory
$5.13
You save $0.91
-15%
No longer availableSearch Nationwide Inventory
$0.37
You save $0.06
-15%
17
Suzuki Marine
LOCK WASHER08321-2103B
Required: 4
.LOCK WASHER
Supersedes: 08321-21032
$1.53
You save $0.27
-15%
18
Suzuki Marine
Supersedes to 13122-9811013122-98101-H17
Required: 1
GASKET, VALVE SEAT
Supersedes: 13122-98101
No longer availableSearch Nationwide Inventory
$1.55
You save $0.27
-15%
19
Suzuki Marine
SCREW 6 X 3502112-06357
Required: 2
SCREW
Supersedes: 02112-06352
$1.88
You save $0.33
-15%
20
Suzuki Marine
WASHER08322-01067
Required: 2
WASHER
Supersedes: 08322-21062
In stock
Only 1 remaining
$1.98
You save $0.35
-15%
21
Suzuki Marine
SILENCER COVER13812-98100
Required: 1
COVER, SILENCER
$7.18
You save $1.27
-15%
22
Suzuki Marine
SILENCER CASE13811-98100
Required: 1
CASE, SILENCER
No longer availableSearch Nationwide Inventory
$5.73
You save $1.01
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
