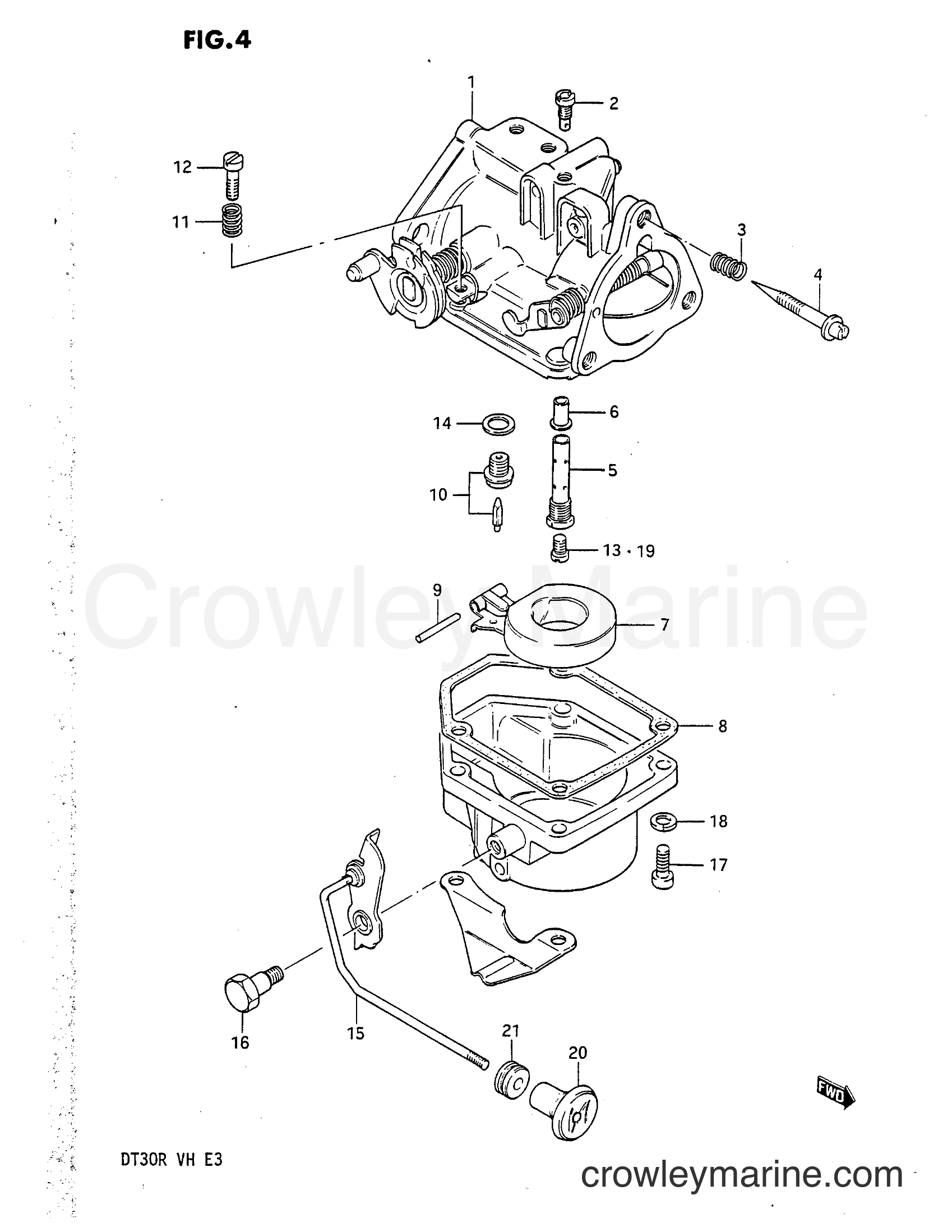

1986 Two-Stroke Outboard 30 - DT30 CARBURETOR diagram
-15%
No longer availableSearch Nationwide Inventory
$126.31
You save $22.29
-15%
2
Suzuki Marine
P/J 85 (N10104309492-85001
Required: 1
.JET, AIR (85)
No longer availableSearch Nationwide Inventory
$8.56
You save $1.51
-15%
3
Suzuki Marine
AIR SCREW SPRIN13271-93311
Required: 1
.SPRING, AIR SCREW
$5.09
You save $0.90
-20%
4
Suzuki Marine
Air Screw13269-93311
Required: 1
.SCREW, PILOT AIR
$7.58
You save $1.90
-20%
$22.23
You save $5.56
-20%
$3.18
You save $0.79
-20%
In stock
Only 1 remaining
$18.48
You save $4.62
-20%
8
Suzuki Marine
GASKET,FLOAT CH13251-93320
Required: 1
.GASKET, FLOAT CHAMBER
Supersedes: 13251-93310
In stock
Only 1 remaining
$7.84
You save $1.96
-20%
9
Suzuki Marine
PIN CARBURETOR13254-98300
Required: 1
.PIN, FLOAT
Supersedes: 13254-93010
In stock
Only 1 remaining
$3.21
You save $0.80
-20%
10
Suzuki Marine
Needle Valve13370-28110
Required: 1
.VALVE ASSY, NEEDLE
In stock
Only 3 remaining
$48.25
You save $12.06
-20%
11
Suzuki Marine
Spring13268-96111
Required: 1
.SPRING, THROTTLE STOP
Supersedes: 13268-96110
In stock
Only 2 remaining
$4.22
You save $1.06
-15%
12
Suzuki Marine
Obsolete Suzuki Part13534-96300
Required: 1
.SCREW, THROTTLE STOP
No longer availableSearch Nationwide Inventory
$1.93
You save $0.34
-15%
13
Suzuki Marine
JET,MAIN,16009491-32012
Required: 1
.JET, MAIN (160)
Supersedes: 09491-32006
$11.68
You save $2.06
-20%
14
Suzuki Marine
NEEDLE VALVE SE13392-58600
Required: 1
.GASKET, VALVE SEAT
In stock
Only 5 remaining
$1.88
You save $0.47
-15%
15
Suzuki Marine
LEVER ASSY, CHO13681-96301
Required: 1
.LEVER, CHOKE
Supersedes: 13681-96300
No longer availableSearch Nationwide Inventory
$42.69
You save $7.53
-50%
In stock
Only 1 remaining
$4.47
You save $4.47
-15%
17
Suzuki Marine
Screw (M8 X 40)02112-05207
Required: 4
.SCREW
Supersedes: 02112-05208
$2.09
You save $0.37
-15%
18
Suzuki Marine
LOCK WASHER08321-0105A
Required: 4
.LOCK WASHER
Supersedes: 08321-21057
$1.95
You save $0.34
-15%
19
Suzuki Marine
Obsolete Suzuki Part09491-34008
Required: 1
JET, MAIN (170)
Supersedes: 09491-34004
No longer availableSearch Nationwide Inventory
$5.61
You save $0.99
-15%
19
Suzuki Marine
M/J 165 (N1022209491-33004
Required: 1
JET, MAIN (165)
No longer availableSearch Nationwide Inventory
$11.66
You save $2.06
-15%
19
Suzuki Marine
Pilot Jet09491-31014
Required: 1
JET, MAIN (155)
Supersedes: 09491-31003
No longer availableSearch Nationwide Inventory
$14.00
You save $2.47
-20%
20
Suzuki Marine
Starter Knob13631-93501
Required: 1
KNOB, STARTER
Supersedes: 13631-93500
In stock
Only 2 remaining
$4.14
You save $1.03
-20%
21
Suzuki Marine
CUSHION,MUF COV09320-04013
Required: 1
BUSH
Supersedes: 09305-04005
$1.61
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
