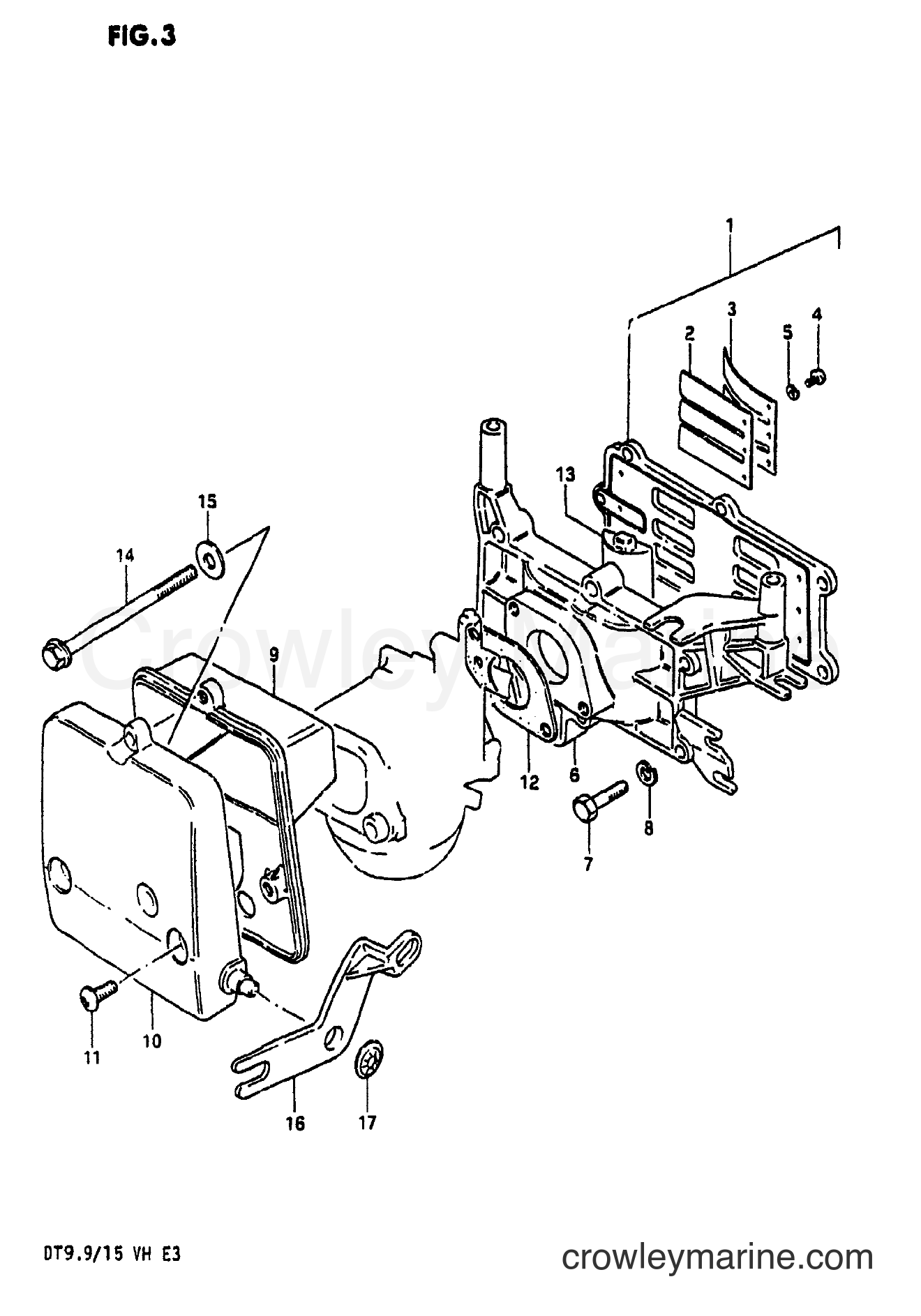

1987 Two-Stroke Outboard 15 - DT15 INLET CASE diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part13150-93920
Required: 1
REED VALVE ASSY
No longer availableSearch Nationwide Inventory
$47.78
You save $8.43
-15%
1
Suzuki Marine
VALVE ASSY REED13150-90L00
Required: 1
REED VALVE ASSY
Supersedes: 13150-93900
$132.31
You save $23.35
-50%
2
Suzuki Marine
VALVE,REED13153-90L00
Required: 2
.REED VALVE
Supersedes: 13153-93900
In stock
Only 2 remaining
$7.51
You save $7.51
-15%
3
Suzuki Marine
Obsolete Suzuki Part13152-93920
Required: 2
.STOPPER, REED VALVE
No longer availableSearch Nationwide Inventory
$1.97
You save $0.35
-15%
3
Suzuki Marine
STOPPER,REED VA13152-90L00
Required: 2
.STOPPER, REED VALVE
Supersedes: 13152-93900
$5.98
You save $1.06
-15%
No longer availableSearch Nationwide Inventory
$0.34
You save $0.06
-50%
5
Suzuki Marine
Lock Washer08321-01067
Required: 6
.LOCK WASHER
Supersedes: 08321-21067
In stock
5+ in stock
$1.15
You save $1.15
-15%
6
Suzuki Marine
Supersedes to 12481-93901-0ED12481-93911-02M
Required: 1
CASE, INLET
Supersedes: 12481-93901-02M
No longer availableSearch Nationwide Inventory
$31.13
You save $5.49
-15%
6
Suzuki Marine
CASE,INLET (GRA12481-93902-0ED
Required: 1
CASE, INLET
Supersedes: 12481-93910-02M
No longer availableSearch Nationwide Inventory
$85.67
You save $15.12
-15%
7
Suzuki Marine
BOLT01500-06357
Required: 6
BOLT (6x35)
Supersedes: 01107-06352
$2.92
You save $0.51
-50%
8
Suzuki Marine
Lock Washer08321-01067
Required: 6
LOCK WASHER
Supersedes: 08321-21062
In stock
5+ in stock
$1.15
You save $1.15
-50%
9
Suzuki Marine
CASE,SILENCER13811-93950
Required: 1
CASE, SILENCER
In stock
Only 1 remaining
$7.25
You save $7.25
-50%
10
Suzuki Marine
COVER SILENCER13812-93900
Required: 1
COVER, SILENCER
In stock
Only 1 remaining
$6.81
You save $6.81
-20%
11
Suzuki Marine
Screw (M8 X 40)03241-0516A
Required: 3
SCREW
Supersedes: 03242-05169
In stock
5+ in stock
$1.23
You save $0.31
-20%
12
Suzuki Marine
GASKET, CARB(NA13125-91D00
Required: 1
GASKET, CARBURETOR
Supersedes: 13125-93950
In stock
Only 1 remaining
$2.92
You save $0.73
-15%
13
Suzuki Marine
Obsolete Suzuki Part12485-93900
Required: 1
PIECE, INLET CASE
No longer availableSearch Nationwide Inventory
$2.24
You save $0.40
-20%
14
Suzuki Marine
BOLT01550-06907
Required: 2
BOLT
Supersedes: 01517-06902
In stock
Only 2 remaining
$4.00
You save $1.00
-15%
15
Suzuki Marine
WASHER09160-06066
Required: 2
WASHER (6.5x20x1.6)
In stock
Only 2 remaining
$2.01
You save $0.36
-50%
16
Suzuki Marine
LEVER CHOKE13633-93900
Required: 1
LEVER, CHOKE
In stock
Only 1 remaining
$2.41
You save $2.41
-20%
In stock
Only 1 remaining
$1.18
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
