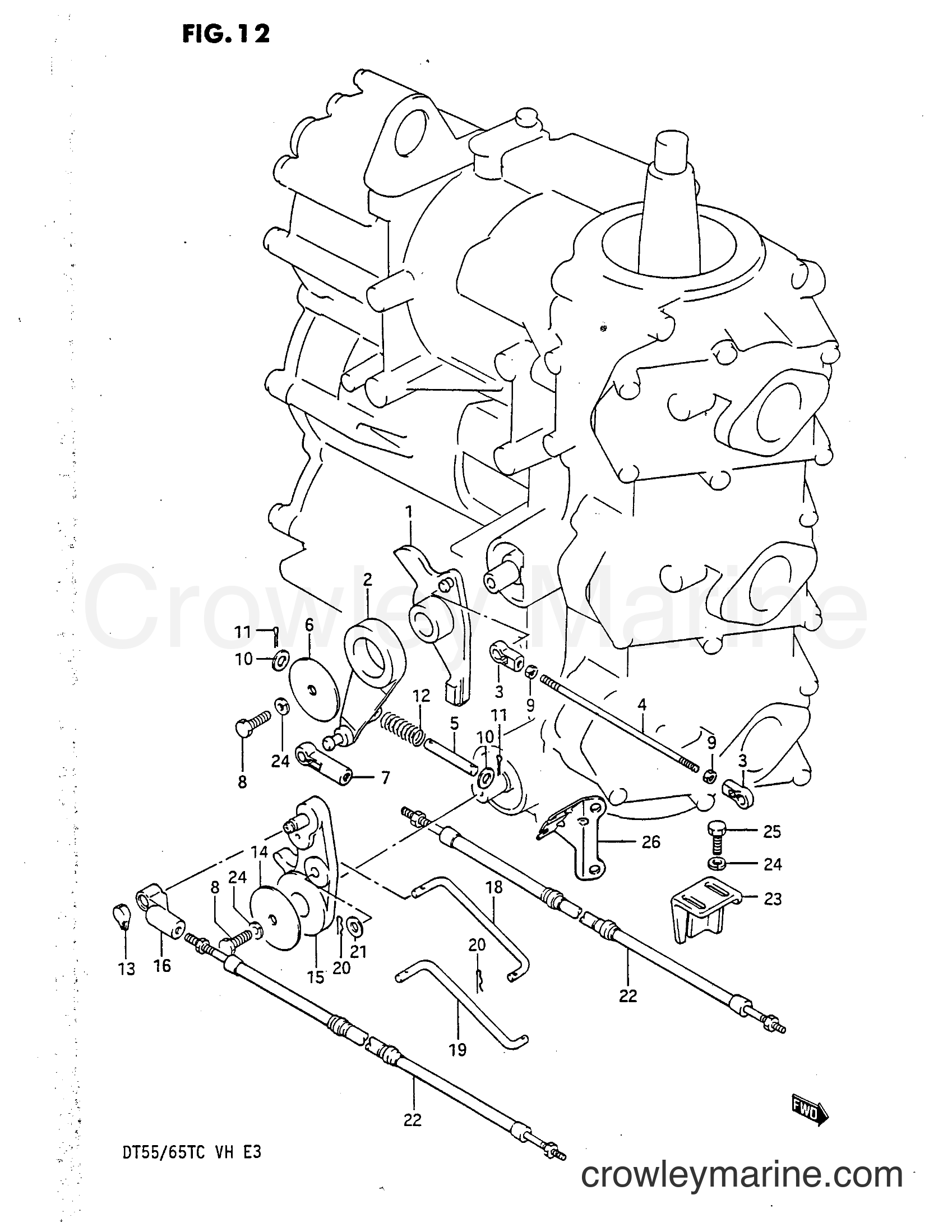

1986 Two-Stroke Outboard 65 - DT65 THROTTLE LINK diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part19121-94701
Required: 1
LEVER, THROTTLE CONTROL
Supersedes: 19121-94700
No longer availableSearch Nationwide Inventory
$7.20
You save $1.27
-15%
1
Suzuki Marine
Obsolete Suzuki Part19121-94701
Required: 1
LEVER, THROTTLE CONTROL
No longer availableSearch Nationwide Inventory
$7.20
You save $1.27
-15%
2
Suzuki Marine
ARM,THROTTLE CO19122-94702
Required: 1
ARM, THROTTLE CONTROL
Supersedes: 19122-94701
No longer availableSearch Nationwide Inventory
$10.07
You save $1.78
-15%
2
Suzuki Marine
Obsolete Suzuki Part19122-94711
Required: 1
ARM, THROTTLE CONTROL
Supersedes: 19122-94710
No longer availableSearch Nationwide Inventory
$5.68
You save $1.00
-15%
2
Suzuki Marine
Obsolete Suzuki Part19122-94711
Required: 1
ARM, THROTTLE CONTROL
No longer availableSearch Nationwide Inventory
$5.68
You save $1.00
-20%
3
Suzuki Marine
SHIFT SHAFT CONNECTOR19131-95502
Required: 2
CONNECTOR, THROTTLE LEVER
In stock
5+ in stock
$4.14
You save $1.03
-15%
4
Suzuki Marine
ROD19135-94400
Required: 1
ROD, THROTTLE LEVER
Supersedes: 19135-94700
$4.71
You save $0.83
-15%
5
Suzuki Marine
Obsolete Suzuki Part19137-94700
Required: 1
PIN, THROTTLE LEVER DAMPER
No longer availableSearch Nationwide Inventory
$4.90
You save $0.86
-15%
6
Suzuki Marine
Obsolete Suzuki Part19211-94700
Required: 1
WASHER, THROTTLE LEVER
No longer availableSearch Nationwide Inventory
$1.39
You save $0.25
-20%
7
Suzuki Marine
CABLE CONNECTOR67466-95200
Required: 1
CONNECTOR, THROTTLE CABLE
In stock
Only 2 remaining
$4.90
You save $1.23
-15%
No longer availableSearch Nationwide Inventory
$1.47
You save $0.26
-20%
9
Suzuki Marine
Nut09140-05005
Required: 2
NUT, THROTTLE ROD
Supersedes: 09140-05001
In stock
Only 1 remaining
$2.43
You save $0.61
-20%
10
Suzuki Marine
WASHER09160-06082
Required: 2
WASHER, THROT LEVER DAMPER PI
In stock
Only 1 remaining
$1.42
You save $0.36
-20%
11
Suzuki Marine
PIN09204-01002
Required: 2
COTTER PIN
In stock
Only 1 remaining
$1.56
You save $0.39
-15%
12
Suzuki Marine
Spring09440-09021
Required: 2
SPRING, THROTTLE LEVER DAMPER
No longer availableSearch Nationwide Inventory
$1.87
You save $0.33
-15%
13
Suzuki Marine
CAP CONNECTOR19113-95300
Required: 1
CAP, CONNECTOR
No longer availableSearch Nationwide Inventory
$1.92
You save $0.34
-15%
14
Suzuki Marine
Obsolete Suzuki Part19211-94700
Required: 1
WASHER, CLUTCH CONTROL
No longer availableSearch Nationwide Inventory
$1.39
You save $0.25
-15%
15
Suzuki Marine
Obsolete Suzuki Part23211-94702
Required: 1
ARM, CLUTCH CONTROL
Supersedes: 23211-94700
No longer availableSearch Nationwide Inventory
$7.37
You save $1.30
-15%
16
Suzuki Marine
CABLE CONNECTOR67467-95201
Required: 1
CONNECTOR, CLUTCH LINK
No longer availableSearch Nationwide Inventory
$4.67
You save $0.82
-15%
No longer availableSearch Nationwide Inventory
$1.47
You save $0.26
-15%
18
Suzuki Marine
Obsolete Suzuki Part23111-94701
Required: 1
LINK, CLUTCH
Supersedes: 23111-94700
No longer availableSearch Nationwide Inventory
$10.99
You save $1.94
-15%
No longer availableSearch Nationwide Inventory
$7.53
You save $1.33
-15%
No longer availableSearch Nationwide Inventory
$1.03
You save $0.18
-15%
21
Suzuki Marine
WASHER08322-01067
Required: 1
WASHER
Supersedes: 08322-21062
In stock
Only 1 remaining
$1.98
You save $0.35
-15%
22
Suzuki Marine
Obsolete Suzuki Part99105-11000-009
Required: 2
CABLE, CLUTCH 2.7M
Supersedes: 67320-95530
No longer availableSearch Nationwide Inventory
$30.39
You save $5.36
-15%
22
Suzuki Marine
Supersedes to 99105-11000-01099105-10000-010
Required: 2
CABLE, CLUTCH 3.1M
Supersedes: 67320-95540
No longer availableSearch Nationwide Inventory
$22.67
You save $4.00
-15%
22
Suzuki Marine
Obsolete Suzuki Part99105-11000-012
Required: 2
CABLE, CLUTCH 3.7M
Supersedes: 67320-95560
No longer availableSearch Nationwide Inventory
$32.26
You save $5.69
-15%
22
Suzuki Marine
Supersedes to 99105-11000-01399105-10000-013
Required: 2
CABLE, CLUTCH 4.0M
Supersedes: 67320-95570
No longer availableSearch Nationwide Inventory
$25.07
You save $4.43
-15%
22
Suzuki Marine
Obsolete Suzuki Part99105-11000-015
Required: 2
CABLE, CLUTCH 4.6M
Supersedes: 67320-95590
No longer availableSearch Nationwide Inventory
$34.72
You save $6.13
-15%
22
Suzuki Marine
Obsolete Suzuki Part99105-11000-017
Required: 2
CABLE, CLUTCH 5.2M
Supersedes: 67320-95610
No longer availableSearch Nationwide Inventory
$36.13
You save $6.38
-15%
23
Suzuki Marine
HOLDER,REMOCON67271-95213
Required: 1
HOLDER, REMO-CONT CABLE
No longer availableSearch Nationwide Inventory
$15.85
You save $2.80
-15%
24
Suzuki Marine
WASHER09162-06006
Required: 2
LOCK WASHER
$1.60
You save $0.28
-15%
25
Suzuki Marine
Supersedes to 09117-06040-XC009117-06040
Required: 2
BOLT (6X15)
Supersedes: 09100-06115
No longer availableSearch Nationwide Inventory
$1.47
You save $0.26
-15%
26
Suzuki Marine
Obsolete Suzuki Part19184-94710
Required: 1
BRACKET, THROTTLE CABLE
No longer availableSearch Nationwide Inventory
$5.15
You save $0.91
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
