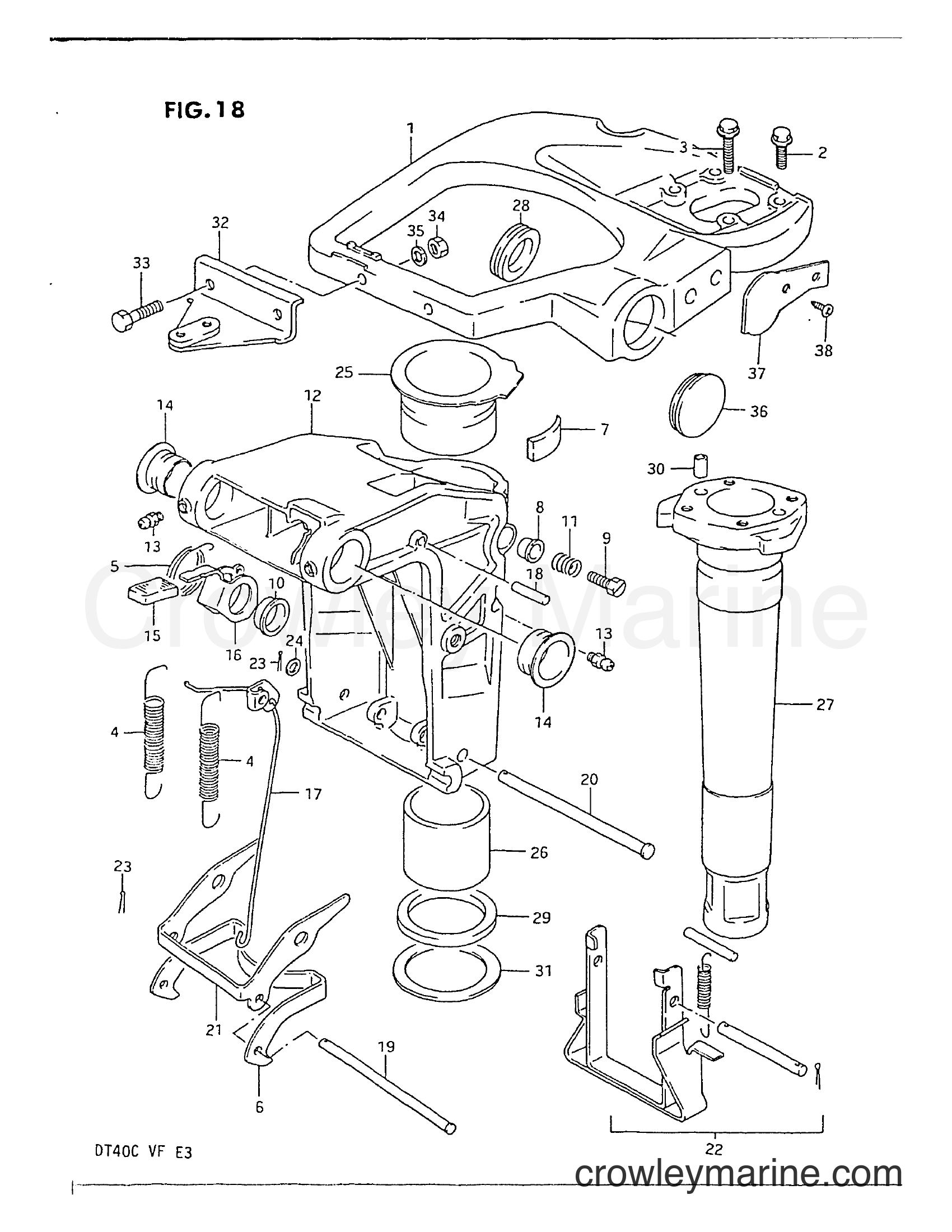

1984 Two-Stroke Outboard 40 - DT40 SWIVEL BRACKET diagram
-15%
1
Suzuki Marine
Supersedes to 43751-94450-02M43751-94430-02M
Required: 1
BRACKET, STEERING
Supersedes: 43751-94400-02M
No longer availableSearch Nationwide Inventory
$53.34
You save $9.41
-15%
1
Suzuki Marine
Supersedes to 43751-94450-0ED43751-94450-02M
Required: 1
BRACKET, STEERING
Supersedes: 43751-94420-02M
No longer availableSearch Nationwide Inventory
$84.89
You save $14.98
-15%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.15
-20%
3
Suzuki Marine
BOLT01550-08357
Required: 2
BOLT
Supersedes: 09103-08125
$3.58
You save $0.89
-15%
4
Suzuki Marine
Obsolete Suzuki Part09443-15031
Required: 2
SPRING
Supersedes: 09443-15020
No longer availableSearch Nationwide Inventory
$5.84
You save $1.03
-15%
5
Suzuki Marine
Spring09448-29018
Required: 1
SPRING
Supersedes: 09444-27001
$3.65
You save $0.64
-15%
6
Suzuki Marine
ARM REVERSELOCK45231-94401
Required: 1
ARM, REVERSE LOCK
$21.95
You save $3.87
-15%
7
Suzuki Marine
Obsolete Suzuki Part43411-94400
Required: 1
ADJUSTER, STEERING
No longer availableSearch Nationwide Inventory
$4.28
You save $0.76
-15%
8
Suzuki Marine
BUSH,ADJUSTER B43421-96302
Required: 1
BUSH, ADJUSTER BOLT
Supersedes: 43421-96301
No longer availableSearch Nationwide Inventory
$6.65
You save $1.17
-15%
No longer availableSearch Nationwide Inventory
$1.68
You save $0.30
-15%
10
Suzuki Marine
BUSH,RELEASE LE59315-94J00
Required: 2
BUSH
Supersedes: 09306-22006
$1.81
You save $0.32
-15%
11
Suzuki Marine
Obsolete Suzuki Part09440-13045
Required: 1
SPRING
Supersedes: 09440-13021
No longer availableSearch Nationwide Inventory
$1.07
You save $0.19
-15%
12
Suzuki Marine
Supersedes to 43111-94451-02M43111-94450-02M
Required: 1
BRACKET, SWIVEL
Supersedes: 43111-94401-02M
No longer availableSearch Nationwide Inventory
$95.74
You save $16.90
-15%
12
Suzuki Marine
Supersedes to 43111-94451-02M43111-94450-02M
Required: 1
BRACKET, SWIVEL
Supersedes: 43111-94410-02M
No longer availableSearch Nationwide Inventory
$95.74
You save $16.90
-20%
13
Suzuki Marine
Grease Nipple22511-99011
Required: 3
NIPPLE, GREASE
Supersedes: 22511-99000
In stock
Only 2 remaining
$3.08
You save $0.77
-15%
14
Suzuki Marine
BUSH,SWIVEL BRA43211-87JL0
Required: 2
BUSH
Supersedes: 43211-94400
$32.52
You save $5.74
-15%
15
Suzuki Marine
RUBBER,RELEASE45255-93001
Required: 1
RUBBER, RELEASE LEVER
Supersedes: 45255-93000
$4.09
You save $0.72
-15%
16
Suzuki Marine
LEVER,RELEASE45261-92L00
Required: 1
LEVER, RELEASE
Supersedes: 45261-94400
$8.19
You save $1.45
-15%
17
Suzuki Marine
Obsolete Suzuki Part45254-94300
Required: 1
PIN, RELEASE ARM
No longer availableSearch Nationwide Inventory
$2.00
You save $0.35
-15%
No longer availableSearch Nationwide Inventory
$7.41
You save $1.31
-15%
No longer availableSearch Nationwide Inventory
$6.51
You save $1.15
-15%
No longer availableSearch Nationwide Inventory
$4.32
You save $0.76
-15%
21
Suzuki Marine
LINK,REVERSE LO45241-92L00
Required: 1
LINK, REVERSE LOCK ARM
Supersedes: 45241-94400
$35.16
You save $6.21
-15%
22
Suzuki Marine
Obsolete Suzuki Part45700-94401
Required: 1
DRIVE ASSY, SHALLOW WATER
Supersedes: 45700-94400
No longer availableSearch Nationwide Inventory
$78.91
You save $13.93
-20%
23
Suzuki Marine
PIN09204-01002
Required: 2
COTTER PIN
Supersedes: 09204-01001
In stock
Only 1 remaining
$1.56
You save $0.39
-20%
$1.64
You save $0.41
-15%
25
Suzuki Marine
Obsolete Suzuki Part43710-94400
Required: 1
BUSH, STEERING,UPPER
Supersedes: 43711-94400
No longer availableSearch Nationwide Inventory
$26.79
You save $4.73
-15%
26
Suzuki Marine
Obsolete Suzuki Part43712-94410
Required: 1
BUSH, STEERING,UNDER
Supersedes: 43712-94400
No longer availableSearch Nationwide Inventory
$10.51
You save $1.85
-15%
27
Suzuki Marine
Obsolete Suzuki Part43741-94400-0ED
Required: 1
SHAFT, PILOT
Supersedes: 43741-94400-02M
No longer availableSearch Nationwide Inventory
$60.61
You save $10.70
-15%
28
Suzuki Marine
Obsolete Suzuki Part43753-94400
Required: 1
GROMMET, STEERING BRACKET
No longer availableSearch Nationwide Inventory
$2.35
You save $0.41
-15%
No longer availableSearch Nationwide Inventory
$2.61
You save $0.46
-15%
No longer availableSearch Nationwide Inventory
$2.67
You save $0.47
-15%
No longer availableSearch Nationwide Inventory
$2.56
You save $0.45
-15%
32
Suzuki Marine
Obsolete Suzuki Part43755-96320
Required: 1
ATTACHMENT, STEERING BRACKET
Supersedes: 43755-96301
No longer availableSearch Nationwide Inventory
$106.28
You save $18.75
-15%
33
Suzuki Marine
BOLT,8X3509100-08224-XC0
Required: 2
BOLT (8X35)
Supersedes: 09100-08224
$5.40
You save $0.95
-20%
34
Suzuki Marine
Nut09140-08023-XC0
Required: 2
NUT
Supersedes: 09140-08016
$2.30
You save $0.58
-20%
$1.50
You save $0.38
-15%
No longer availableSearch Nationwide Inventory
$1.33
You save $0.24
-15%
37
Suzuki Marine
Supersedes to 43754-94301-0ED43754-94301-01J
Required: 1
COVER, STEERING BRACKET
Supersedes: 43754-94301-02M
No longer availableSearch Nationwide Inventory
$4.69
You save $0.83
-15%
38
Suzuki Marine
Obsolete Suzuki Part03142-05103
Required: 2
SCREW
Supersedes: 09132-05024
No longer availableSearch Nationwide Inventory
$1.03
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
