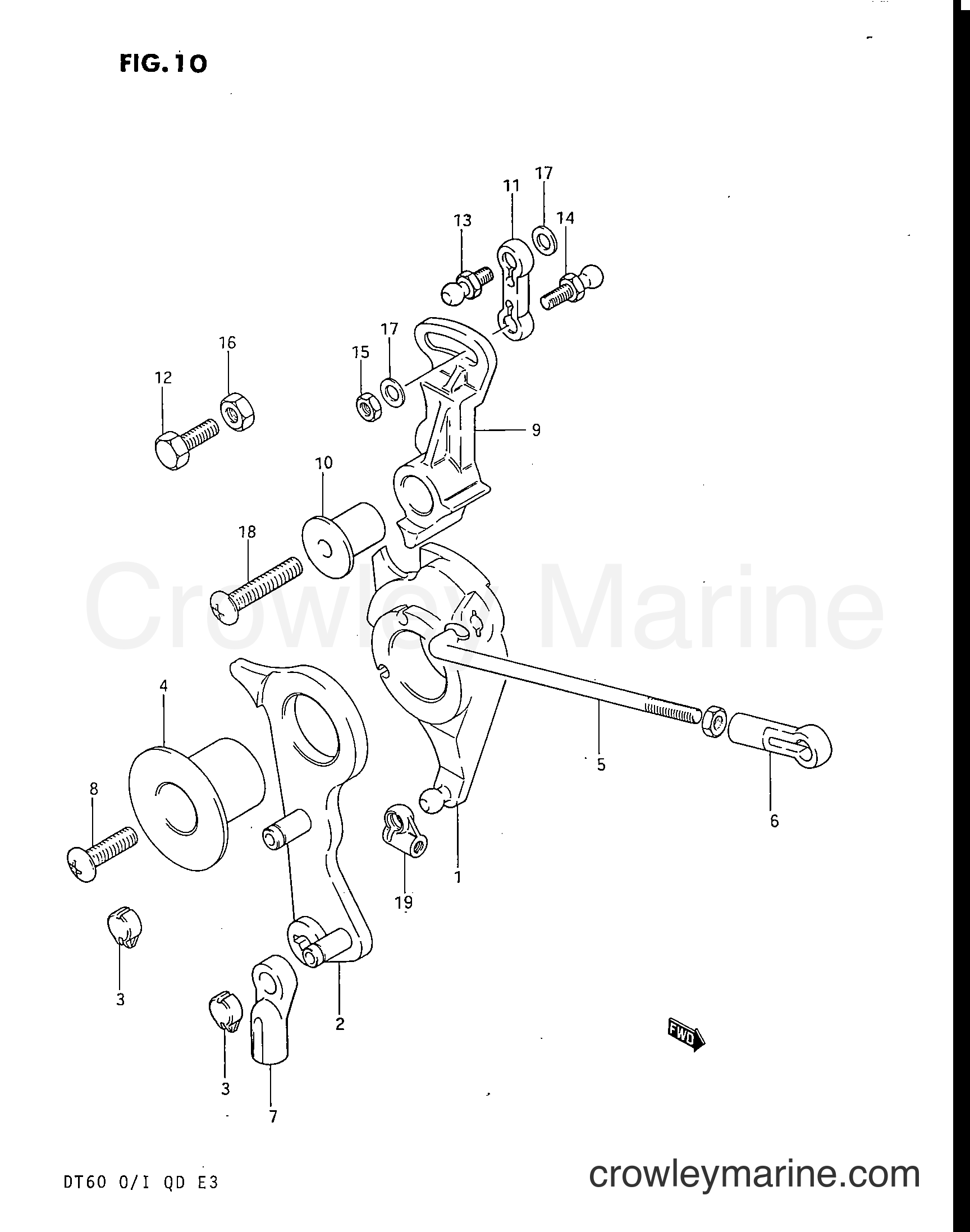

1983 Two-Stroke Outboard 60 - DT60 THROTTLE LINK diagram
-15%
1
Suzuki Marine
LEVER,THRO CONT19111-95312
Required: 1
LEVER, THROTTLE CONTROL
Supersedes: 19111-95302
No longer availableSearch Nationwide Inventory
$13.46
You save $2.38
-15%
2
Suzuki Marine
Obsolete Suzuki Part19112-95304
Required: 1
LEVER, CLUTCH CONTROL
Supersedes: 19112-95302
No longer availableSearch Nationwide Inventory
$5.39
You save $0.95
-15%
3
Suzuki Marine
CAP CONNECTOR19113-95300
Required: 3
CAP, CONNECTOR
No longer availableSearch Nationwide Inventory
$1.92
You save $0.34
-15%
4
Suzuki Marine
Obsolete Suzuki Part19114-95300
Required: 1
BUSH, THROTTLE LEVER
No longer availableSearch Nationwide Inventory
$2.88
You save $0.51
-15%
5
Suzuki Marine
Obsolete Suzuki Part19135-95310
Required: 1
ROD, THROTTLE LEVER
No longer availableSearch Nationwide Inventory
$3.21
You save $0.57
-15%
6
Suzuki Marine
THROTTLE CONNEC67463-95200
Required: 1
CONNECTOR, THROTTLE CONTROL
$3.37
You save $0.60
-15%
7
Suzuki Marine
CABLE CONNECTOR67467-95201
Required: 1
CONNECTOR, REMOCON CABLE
No longer availableSearch Nationwide Inventory
$4.67
You save $0.82
8
Suzuki Marine
Screw (M8 X 40)02142-06257
Required: 1
SCREW, CLUTCH CONTROL STOPPER
Supersedes: 02142-06258
No longer availableSearch Nationwide Inventory
$0.43
-15%
9
Suzuki Marine
Obsolete Suzuki Part19115-95302
Required: 1
LEVER, SPARK ADVANCE
Supersedes: 19115-95301
No longer availableSearch Nationwide Inventory
$3.63
You save $0.64
-15%
10
Suzuki Marine
Obsolete Suzuki Part19116-95300
Required: 1
BUSH, ADVANCE LEVER
No longer availableSearch Nationwide Inventory
$1.61
You save $0.28
-15%
11
Suzuki Marine
Obsolete Suzuki Part67468-95301
Required: 1
CONNECTOR, SPARK ADVANCE
No longer availableSearch Nationwide Inventory
$1.94
You save $0.34
-15%
12
Suzuki Marine
Obsolete Suzuki Part09100-06083
Required: 1
BOLT, ADVANCE ADJUSTMENT
No longer availableSearch Nationwide Inventory
$0.81
You save $0.14
-20%
13
Suzuki Marine
BOLT09119-05010
Required: 1
PIVOT, STATOR BALL
$7.02
You save $1.75
-20%
14
Suzuki Marine
BOLT09119-05010
Required: 1
PIVOT, ADVANCE LEVER BALL
Supersedes: 09119-05011
$7.02
You save $1.75
-20%
15
Suzuki Marine
Nut09140-05005
Required: 1
NUT, BALL PIVOT
Supersedes: 09140-05001
In stock
Only 1 remaining
$2.43
You save $0.61
-20%
16
Suzuki Marine
Nut09140-06020
Required: 1
NUT, ADVANCE ADJUSTMENT
Supersedes: 09140-06004
In stock
Only 2 remaining
$1.67
You save $0.42
-15%
17
Suzuki Marine
WASHER09162-05002
Required: 1
WASHER, BALL PIVOT LOCK
$1.36
You save $0.24
-15%
18
Suzuki Marine
SCREW 6X3002142-06357
Required: 1
BOLT, SPARK ADVANCE LEVER
$1.66
You save $0.29
-15%
19
Suzuki Marine
CONECTOR RE-CON67467-95301
Required: 1
CONNECTOR, REMOCONCABLE
No longer availableSearch Nationwide Inventory
$4.58
You save $0.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
