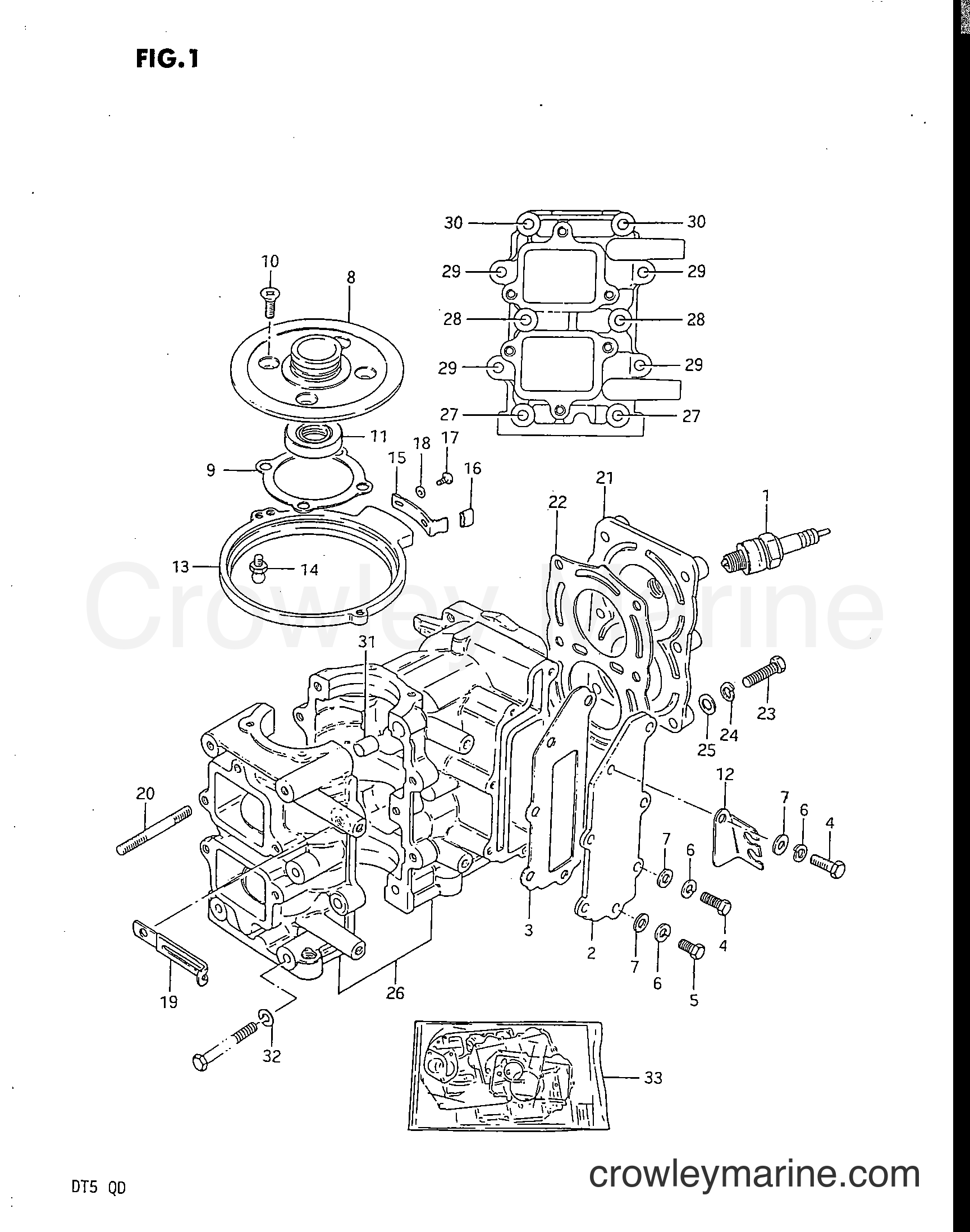

1983 Two-Stroke Outboard 5 - DT5 CYLINDER diagram
-15%
1
Suzuki Marine
Supersedes to 09482-0008409482-00259
Required: 2
SPARK PLUG (BP6HS)
Supersedes: 09482-00074
No longer availableSearch Nationwide Inventory
$1.52
You save $0.27
-15%
No longer availableSearch Nationwide Inventory
$14.01
You save $2.47
-15%
3
Suzuki Marine
Obsolete Suzuki Part14151-98511
Required: 1
GASKET
Supersedes: 14151-98502
No longer availableSearch Nationwide Inventory
$6.05
You save $1.07
-15%
No longer availableSearch Nationwide Inventory
$0.30
You save $0.05
-15%
5
Suzuki Marine
BOLT01500-06167
Required: 1
BOLT
Supersedes: 01107-06168
$2.08
You save $0.37
-15%
6
Suzuki Marine
Supersedes to 08321-0106708321-21067
Required: 7
LOCK WASHER
Supersedes: 08321-21068
No longer availableSearch Nationwide Inventory
$0.40
You save $0.07
-15%
7
Suzuki Marine
Supersedes to 08322-0106708322-21067
Required: 7
WASHER
Supersedes: 08322-21068
No longer availableSearch Nationwide Inventory
$0.35
You save $0.06
-15%
8
Suzuki Marine
Obsolete Suzuki Part11411-98500
Required: 1
HOUSING, UPPER OIL SEAL
No longer availableSearch Nationwide Inventory
$14.36
You save $2.54
-15%
9
Suzuki Marine
GASKET,UPPER OI11413-98510
Required: 1
GASKET
Supersedes: 11413-98500
No longer availableSearch Nationwide Inventory
$3.66
You save $0.65
-15%
10
Suzuki Marine
SCREW 6X1602112-06167
Required: 4
SCREW
Supersedes: 02112-06168
$1.51
You save $0.27
-15%
11
Suzuki Marine
CRANKSHAFT OIL09283-20006
Required: 1
OIL SEAL, UPPER CRANK SHAFT
$5.82
You save $1.03
-15%
12
Suzuki Marine
Supersedes to 33883-98102-0ED33883-98102-02M
Required: 1
STAY, HIGH TENSION CORD
Supersedes: 33883-98101-02M
No longer availableSearch Nationwide Inventory
$1.29
You save $0.23
-15%
13
Suzuki Marine
Supersedes to 19151-98101-0ED19151-98101-02M
Required: 1
RETAINER, STARTOR
Supersedes: 19151-98100-02M
No longer availableSearch Nationwide Inventory
$11.82
You save $2.09
-20%
In stock
Only 1 remaining
$6.41
You save $1.60
-15%
15
Suzuki Marine
Obsolete Suzuki Part19172-98102
Required: 1
STOPPER, RETAINER
Supersedes: 19172-98100
No longer availableSearch Nationwide Inventory
$2.60
You save $0.46
-15%
16
Suzuki Marine
Supersedes to 09343-0512909320-05010
Required: 1
CUSHION, RETAINER STOPPER
No longer availableSearch Nationwide Inventory
$0.23
You save $0.04
-15%
17
Suzuki Marine
Screw (M8 X 40)02112-05127
Required: 2
SCREW
Supersedes: 02112-05128
$2.08
You save $0.37
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
19
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP
Supersedes: 09404-06413
$1.83
You save $0.32
-15%
No longer availableSearch Nationwide Inventory
$0.94
You save $0.17
-15%
21
Suzuki Marine
Supersedes to 11111-98503-0ED11111-98503-02M
Required: 1
CYLINDER HEAD
Supersedes: 11111-98502-02M
No longer availableSearch Nationwide Inventory
$43.06
You save $7.60
-15%
22
Suzuki Marine
GASKET, CYL. HE11141-98522
Required: 1
GASKET
Supersedes: 11141-98502
No longer availableSearch Nationwide Inventory
$23.05
You save $4.07
-15%
22
Suzuki Marine
GASKET, CYL. HE11141-98522
Required: 1
GASKET
Supersedes: 11141-98503
No longer availableSearch Nationwide Inventory
$23.05
You save $4.07
-15%
No longer availableSearch Nationwide Inventory
$0.69
You save $0.12
-50%
24
Suzuki Marine
Lock Washer08321-01087
Required: 6
LOCK WASHER
Supersedes: 08321-21088
In stock
5+ in stock
$1.15
You save $1.15
-20%
25
Suzuki Marine
WASHER08322-01087
Required: 6
WASHER
Supersedes: 08322-11088
In stock
5+ in stock
$1.86
You save $0.46
-15%
26
Suzuki Marine
Obsolete Suzuki Part11301-98591-02M
Required: 1
CYLINDER/CRANKCASE ASSY
Supersedes: 11301-98590-02M
No longer availableSearch Nationwide Inventory
$331.47
You save $58.50
-15%
27
Suzuki Marine
BOLT 6X6009103-06064
Required: 2
.BOLT 1
Supersedes: 01107-06608
$2.27
You save $0.40
-15%
28
Suzuki Marine
BOLT01500-06507
Required: 2
.BOLT 2
Supersedes: 01107-06508
$2.81
You save $0.50
-15%
No longer availableSearch Nationwide Inventory
$0.14
You save $0.02
-15%
No longer availableSearch Nationwide Inventory
$1.31
You save $0.23
-15%
$1.74
You save $0.31
-15%
32
Suzuki Marine
Supersedes to 08321-0106708321-21067
Required: 10
.LOCK WASHER
Supersedes: 08321-21068
No longer availableSearch Nationwide Inventory
$0.40
You save $0.07
-15%
33
Suzuki Marine
Obsolete Suzuki Part11400-98895
Required: 1
GASKET SET
Supersedes: 11400-98861
No longer availableSearch Nationwide Inventory
$55.33
You save $9.76
-15%
33
Suzuki Marine
Obsolete Suzuki Part11400-98895
Required: 1
GASKET SET
Supersedes: 11400-98862
No longer availableSearch Nationwide Inventory
$55.33
You save $9.76
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
