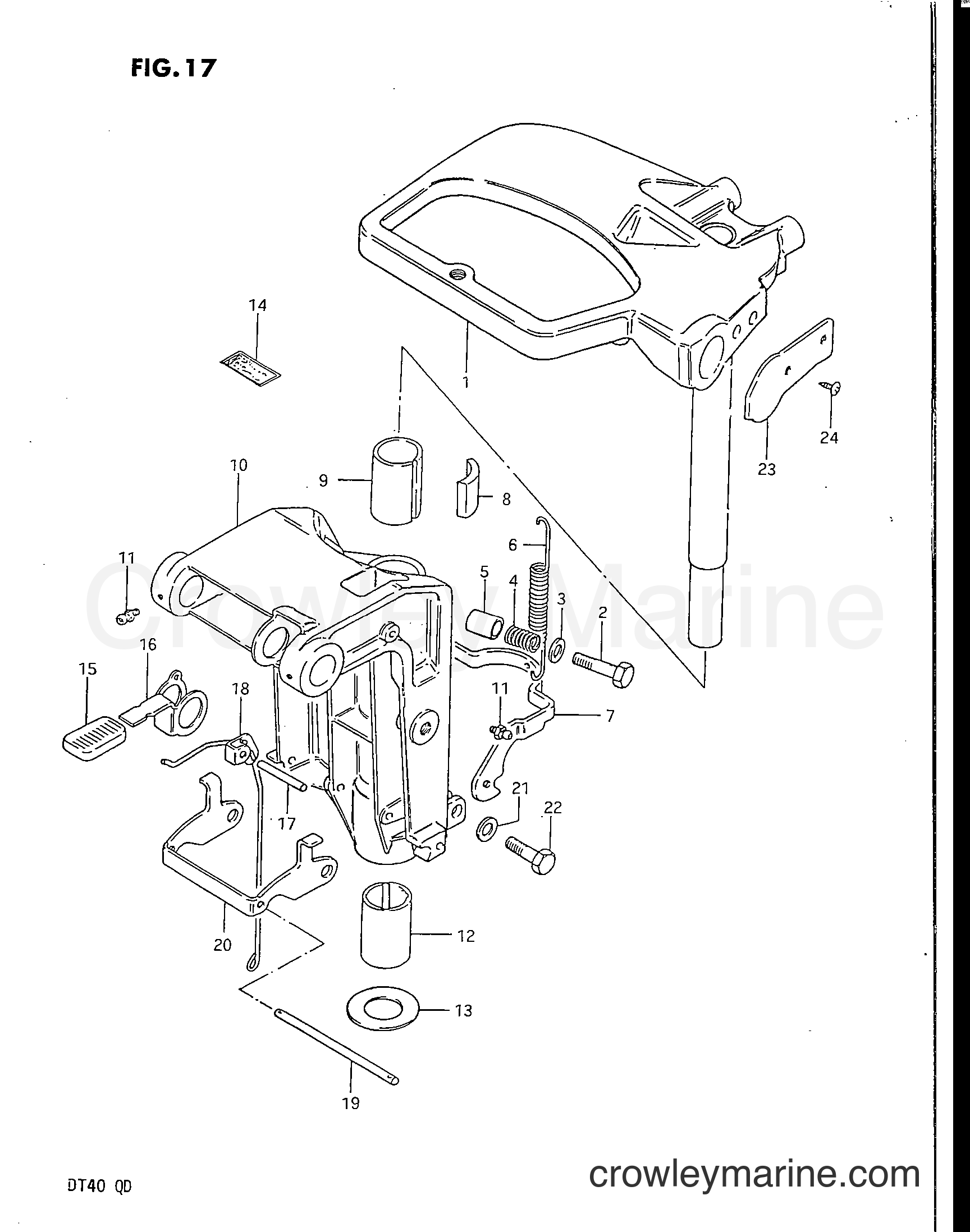

1983 Two-Stroke Outboard 40 - DT40 SWIVEL BRACKET diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part43750-94308-02M
Required: 1
BRACKET, STEERING
Supersedes: 43750-94304-02M
No longer availableSearch Nationwide Inventory
$131.85
You save $23.27
-15%
2
Suzuki Marine
BOLT,8X3509100-08224-XC0
Required: 1
BOLT (8X35)
Supersedes: 09100-08163
$5.40
You save $0.95
-20%
3
Suzuki Marine
WASHER09160-08082
Required: 1
WASHER (8.5X16X1.6)
Supersedes: 09160-08015
$1.64
You save $0.41
-15%
4
Suzuki Marine
Obsolete Suzuki Part09440-11021
Required: 1
SPRING (D:1.4PHI)
Supersedes: 09440-11013
No longer availableSearch Nationwide Inventory
$1.78
You save $0.31
-15%
5
Suzuki Marine
Obsolete Suzuki Part09343-12004
Required: 1
BOOTS (L:60->21)
No longer availableSearch Nationwide Inventory
$1.50
You save $0.26
-15%
6
Suzuki Marine
Obsolete Suzuki Part09443-12032
Required: 1
SPRING, REVERSE LOCK
Supersedes: 09443-12021
No longer availableSearch Nationwide Inventory
$4.49
You save $0.79
-15%
7
Suzuki Marine
Obsolete Suzuki Part45231-94301
Required: 1
ARM, REVERSE LOCK
Supersedes: 45231-94300
No longer availableSearch Nationwide Inventory
$10.09
You save $1.78
-15%
8
Suzuki Marine
Obsolete Suzuki Part43411-94300
Required: 1
ADJUSTER, STEERING
No longer availableSearch Nationwide Inventory
$2.83
You save $0.50
-15%
9
Suzuki Marine
Obsolete Suzuki Part09307-26004
Required: 1
BUSHING, UPPER
Supersedes: 09306-26006
No longer availableSearch Nationwide Inventory
$2.49
You save $0.44
-15%
10
Suzuki Marine
Supersedes to 43111-94310-02M43111-94305-02M
Required: 1
BRACKET, SWIVEL
Supersedes: 43111-94303-02M
No longer availableSearch Nationwide Inventory
$76.20
You save $13.45
-20%
11
Suzuki Marine
Grease Nipple22511-99011
Required: 3
GREASE NIPPLE
Supersedes: 22511-99000
In stock
Only 2 remaining
$3.08
You save $0.77
-15%
12
Suzuki Marine
Obsolete Suzuki Part09307-26004
Required: 1
BUSHING, LOWER
Supersedes: 09306-26005
No longer availableSearch Nationwide Inventory
$2.49
You save $0.44
-15%
13
Suzuki Marine
Obsolete Suzuki Part09161-26001
Required: 1
WASHER (26.7X48X2)
No longer availableSearch Nationwide Inventory
$1.95
You save $0.34
-15%
14
Suzuki Marine
Obsolete Suzuki Part43241-93102
Required: 1
MARK, RELEASE LOWER
No longer availableSearch Nationwide Inventory
$0.90
You save $0.16
-15%
15
Suzuki Marine
RUBBER,RELEASE45255-93001
Required: 1
RUBBER, LEVER
Supersedes: 45255-93000
$4.09
You save $0.72
-15%
No longer availableSearch Nationwide Inventory
$4.51
You save $0.79
-15%
17
Suzuki Marine
Obsolete Suzuki Part45254-94300
Required: 1
PIN, RELEASE ARM
No longer availableSearch Nationwide Inventory
$2.00
You save $0.35
-15%
18
Suzuki Marine
Obsolete Suzuki Part45250-94302
Required: 1
LINK, RELEASE ARM
Supersedes: 45250-94301
No longer availableSearch Nationwide Inventory
$7.11
You save $1.25
-15%
19
Suzuki Marine
Obsolete Suzuki Part45243-94301
Required: 1
PIN, RELEASE LOCK ARM
No longer availableSearch Nationwide Inventory
$5.63
You save $0.99
-15%
20
Suzuki Marine
Obsolete Suzuki Part45241-94301
Required: 1
LINK, RELEASE LOCK
Supersedes: 45241-94300
No longer availableSearch Nationwide Inventory
$14.45
You save $2.55
-20%
21
Suzuki Marine
WASHER09160-08082
Required: 2
WASHER (8.5X16X1.6)
Supersedes: 09160-08015
$1.64
You save $0.41
-15%
22
Suzuki Marine
Supersedes to 09100-0823209100-08230
Required: 2
BOLT (8X30)
Supersedes: 09100-08162
No longer availableSearch Nationwide Inventory
$1.01
You save $0.18
-15%
23
Suzuki Marine
Supersedes to 43754-94301-0ED43754-94301-01J
Required: 1
COVER, BRACKET
Supersedes: 43754-94301-02M
No longer availableSearch Nationwide Inventory
$4.69
You save $0.83
-15%
No longer availableSearch Nationwide Inventory
$0.54
You save $0.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
