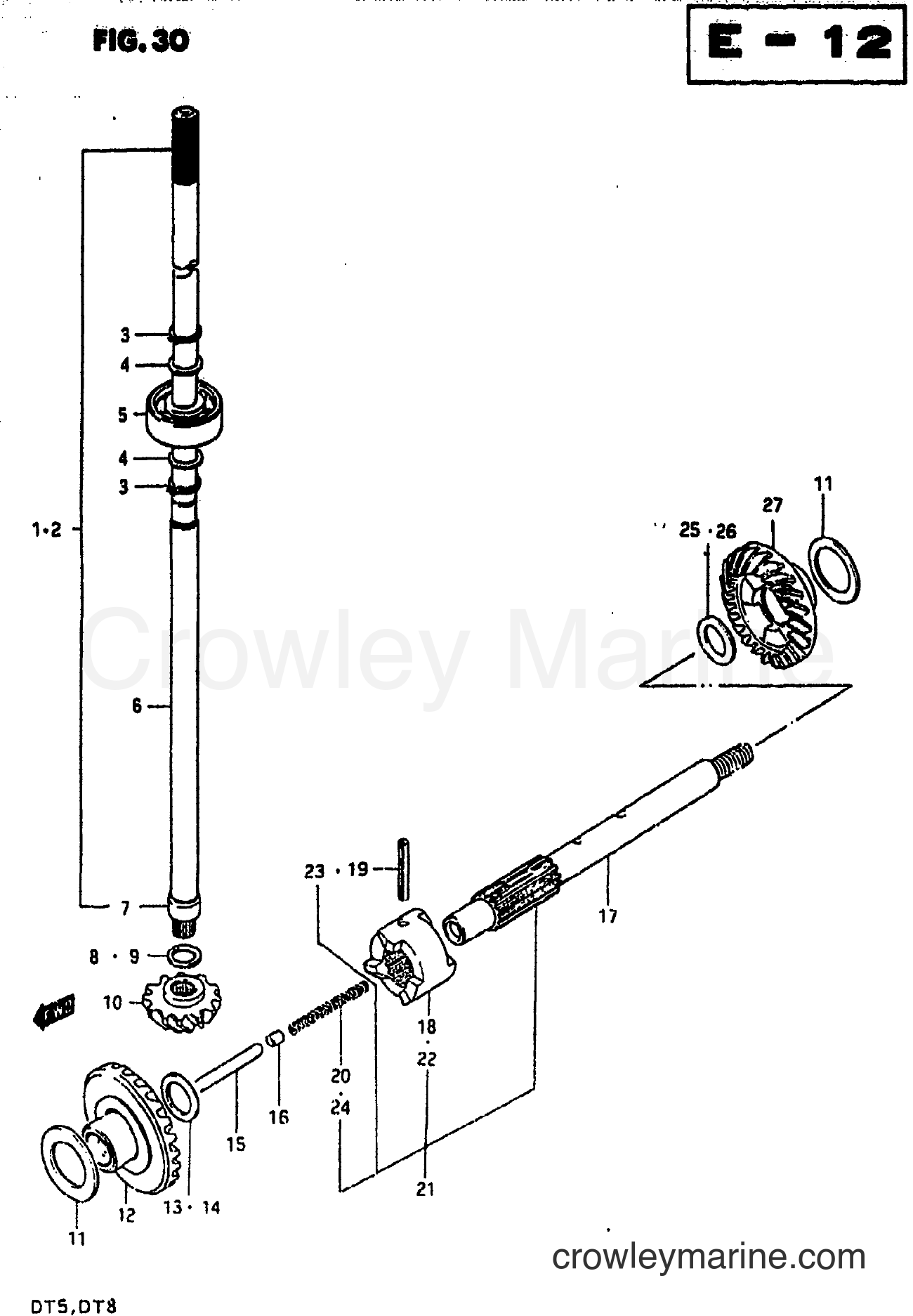

1980 Two-Stroke Outboard 5 - DT5 TRANSMISSION diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part57110-98514
Required: 1
SHAFT, DRIVE (S TYPE)
Supersedes: 57110-98512
No longer availableSearch Nationwide Inventory
$90.04
You save $15.89
1
Suzuki Marine
Supersedes to 57110-9851457110-98513
Required: 1
SHAFT, DRIVE (S TYPE)
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
2
Suzuki Marine
Obsolete Suzuki Part57110-98524
Required: 1
SHAFT, DRIVE (L TYPE)
Supersedes: 57110-98522
No longer availableSearch Nationwide Inventory
$81.49
You save $14.38
-15%
2
Suzuki Marine
Obsolete Suzuki Part57110-98524
Required: 1
SHAFT, DRIVE (L TYPE)
Supersedes: 57110-98523
No longer availableSearch Nationwide Inventory
$81.49
You save $14.38
-15%
$1.88
You save $0.33
-15%
4
Suzuki Marine
WASHER09181-10139
Required: 2
.THRUST WASHER
Supersedes: 08211-10161
$2.29
You save $0.40
-15%
5
Suzuki Marine
Obsolete Suzuki Part09262-10005
Required: 1
.BEARIGN (MODEL G)
Supersedes: 09262-10002
No longer availableSearch Nationwide Inventory
$16.39
You save $2.89
-15%
5
Suzuki Marine
Obsolete Suzuki Part09262-10005
Required: 1
.BEARING (S, L TYPE)
Supersedes: 09262-10003
No longer availableSearch Nationwide Inventory
$16.39
You save $2.89
-15%
6
Suzuki Marine
Obsolete Suzuki Part57116-98500
Required: 1
.SPACER (S, L TYPE)
No longer availableSearch Nationwide Inventory
$2.55
You save $0.45
-15%
7
Suzuki Marine
Obsolete Suzuki Part57117-98501
Required: 1
.INNER RACE, PINION BEARING
No longer availableSearch Nationwide Inventory
$10.40
You save $1.83
-15%
8
Suzuki Marine
SHIM, 10X14X1.009181-10111
Required: 1
THRUST WASHER, PINION BEARING
Supersedes: 08211-10141
$2.09
You save $0.37
-15%
9
Suzuki Marine
Obsolete Suzuki Part09181-10106
Required: 2
SHIM, PINION ADJUSTING
Supersedes: 08221-10143
No longer availableSearch Nationwide Inventory
$1.15
You save $0.20
-15%
9
Suzuki Marine
Obsolete Suzuki Part08221-10144
Required: 1
SHIM, PINION ADJUSTING
No longer availableSearch Nationwide Inventory
$1.05
You save $0.18
-15%
9
Suzuki Marine
Obsolete Suzuki Part08221-10145
Required: 1
SHIM, PINION ADJUSTING
No longer availableSearch Nationwide Inventory
$0.77
You save $0.14
-15%
No longer availableSearch Nationwide Inventory
$23.76
You save $4.19
-15%
11
Suzuki Marine
Obsolete Suzuki Part08221-20303
Required: 2
SHIM, GEAR BACK
No longer availableSearch Nationwide Inventory
$0.87
You save $0.15
-15%
11
Suzuki Marine
FWD GR BACK UP08221-20304
Required: 4
SHIM, GEAR BACK
No longer availableSearch Nationwide Inventory
$1.38
You save $0.24
-15%
11
Suzuki Marine
SHIM 0.509181-20186
Required: 2
SHIM, GEAR BACK
Supersedes: 08221-20305
$2.43
You save $0.43
-15%
12
Suzuki Marine
Forward Gear57510-98502
Required: 1
GEAR, FOWARD
Supersedes: 57510-98500
No longer availableSearch Nationwide Inventory
$87.95
You save $15.52
-15%
13
Suzuki Marine
Obsolete Suzuki Part09160-12041
Required: 1
THRUST WASHER, FORWARD GEAR
No longer availableSearch Nationwide Inventory
$0.64
You save $0.11
-15%
14
Suzuki Marine
Obsolete Suzuki Part09181-12102
Required: 1
SHIM, FORWARD GEAR
Supersedes: 09181-12007
No longer availableSearch Nationwide Inventory
$0.76
You save $0.14
-15%
No longer availableSearch Nationwide Inventory
$6.29
You save $1.11
-20%
16
Suzuki Marine
PUSH PIN57632-97L00
Required: 1
PIN, PUSH
Supersedes: 57632-98500
$3.91
You save $0.98
-15%
17
Suzuki Marine
Obsolete Suzuki Part57600-98502
Required: 1
SHAFT, PROPELLER
Supersedes: 57611-98501
No longer availableSearch Nationwide Inventory
$97.55
You save $17.21
-15%
18
Suzuki Marine
Obsolete Suzuki Part57621-98501
Required: 1
SHIFTER, CLUTCH DOG
Supersedes: 57621-98500
No longer availableSearch Nationwide Inventory
$9.56
You save $1.69
-15%
19
Suzuki Marine
Obsolete Suzuki Part09209-04017
Required: 1
PIN, CLUTCH DOG SHIFTER
No longer availableSearch Nationwide Inventory
$1.07
You save $0.19
-15%
20
Suzuki Marine
Spring09440-05019
Required: 1
SPRING, RETURN
No longer availableSearch Nationwide Inventory
$1.25
You save $0.22
-15%
21
Suzuki Marine
Obsolete Suzuki Part57600-98502
Required: 1
SHAFT, PROPELLER
Supersedes: 57600-98501
No longer availableSearch Nationwide Inventory
$97.55
You save $17.21
-15%
22
Suzuki Marine
Obsolete Suzuki Part57621-98501
Required: 1
.SHIFTER, CLUTCH DOG FROM 57621-98500
No longer availableSearch Nationwide Inventory
$9.56
You save $1.69
-15%
No longer availableSearch Nationwide Inventory
$1.07
You save $0.19
-15%
24
Suzuki Marine
Spring09440-05019
Required: 1
.SPRING, RETURN
No longer availableSearch Nationwide Inventory
$1.25
You save $0.22
-15%
25
Suzuki Marine
Obsolete Suzuki Part09160-14022
Required: 1
THRUST WASHER, REVERSE GEAR
No longer availableSearch Nationwide Inventory
$1.22
You save $0.21
-15%
26
Suzuki Marine
Obsolete Suzuki Part09181-14001
Required: 1
SHIM, REVERSE GEAR
No longer availableSearch Nationwide Inventory
$0.88
You save $0.16
-15%
27
Suzuki Marine
Obsolete Suzuki Part57520-98511
Required: 1
GEAR, REVERSE
Supersedes: 57520-98510
No longer availableSearch Nationwide Inventory
$62.61
You save $11.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
