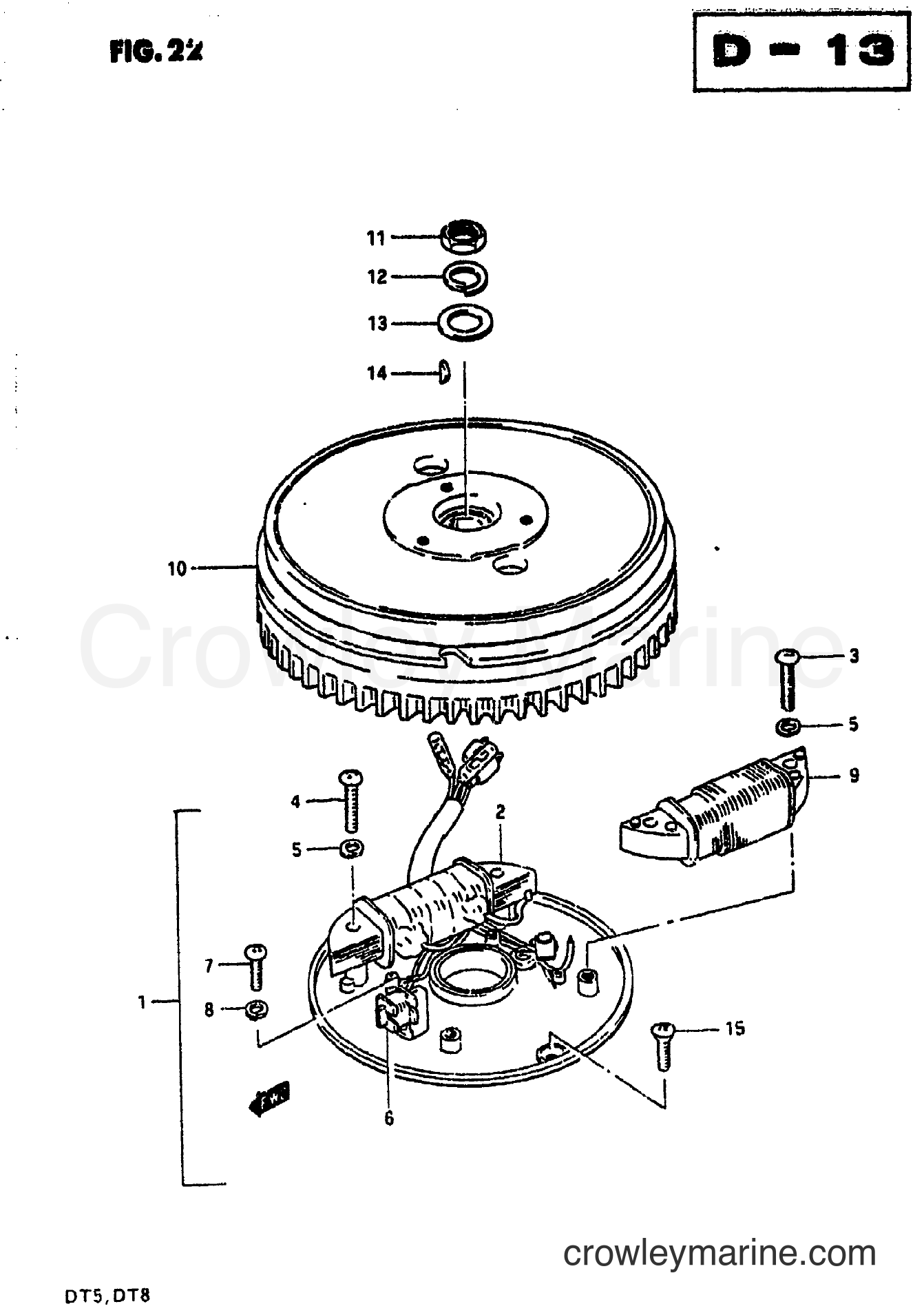

1980 Two-Stroke Outboard 5 - DT5 DT8VZ MAGNETO diagram
-15%
No longer availableSearch Nationwide Inventory
$145.66
You save $25.70
-15%
2
Suzuki Marine
COIL,IGNITION32140-98121
Required: 1
.COIL ASSY, IGNITION
Supersedes: 32140-98110
No longer availableSearch Nationwide Inventory
$85.88
You save $15.16
-15%
3
Suzuki Marine
Supersedes to 02112-0530A02112-05303
Required: 2
.SCREW
Supersedes: 02112-05308
No longer availableSearch Nationwide Inventory
$0.79
You save $0.14
-15%
4
Suzuki Marine
SCREW 5X2502112-05257
Required: 2
.SCREW
Supersedes: 02112-05258
$1.60
You save $0.28
-15%
5
Suzuki Marine
Supersedes to 08321-0105708321-21057
Required: 4
.LOCK WASHER
Supersedes: 08321-21058
No longer availableSearch Nationwide Inventory
$0.40
You save $0.07
-15%
6
Suzuki Marine
Obsolete Suzuki Part32150-98102
Required: 1
.SENCOR
Supersedes: 32150-98101
No longer availableSearch Nationwide Inventory
$38.66
You save $6.82
-15%
No longer availableSearch Nationwide Inventory
$0.26
You save $0.05
-15%
8
Suzuki Marine
Supersedes to 08321-0104308321-21047
Required: 2
.LOCK WASHER
Supersedes: 08321-21048
No longer availableSearch Nationwide Inventory
$0.47
You save $0.08
-15%
9
Suzuki Marine
Obsolete Suzuki Part32120-98111
Required: 1
.COIL ASSY, LIGHTING(12V, 80W)
No longer availableSearch Nationwide Inventory
$25.63
You save $4.52
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
11
Suzuki Marine
Nut09140-12039
Required: 1
NUT, MAGNETO ROTOR
Supersedes: 08310-22128
$3.32
You save $0.59
-15%
12
Suzuki Marine
12MM LOCK WASHE08321-01127
Required: 1
LOCK WASHER
Supersedes: 08321-31128
$2.20
You save $0.39
-15%
13
Suzuki Marine
WASHER08322-01127
Required: 1
WASHER
Supersedes: 08322-11128
$1.98
You save $0.35
-20%
$1.90
You save $0.47
-15%
15
Suzuki Marine
Screw (M8 X 40)09126-05003
Required: 2
SCREW
Supersedes: 02122-05128
$2.20
You save $0.39
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
