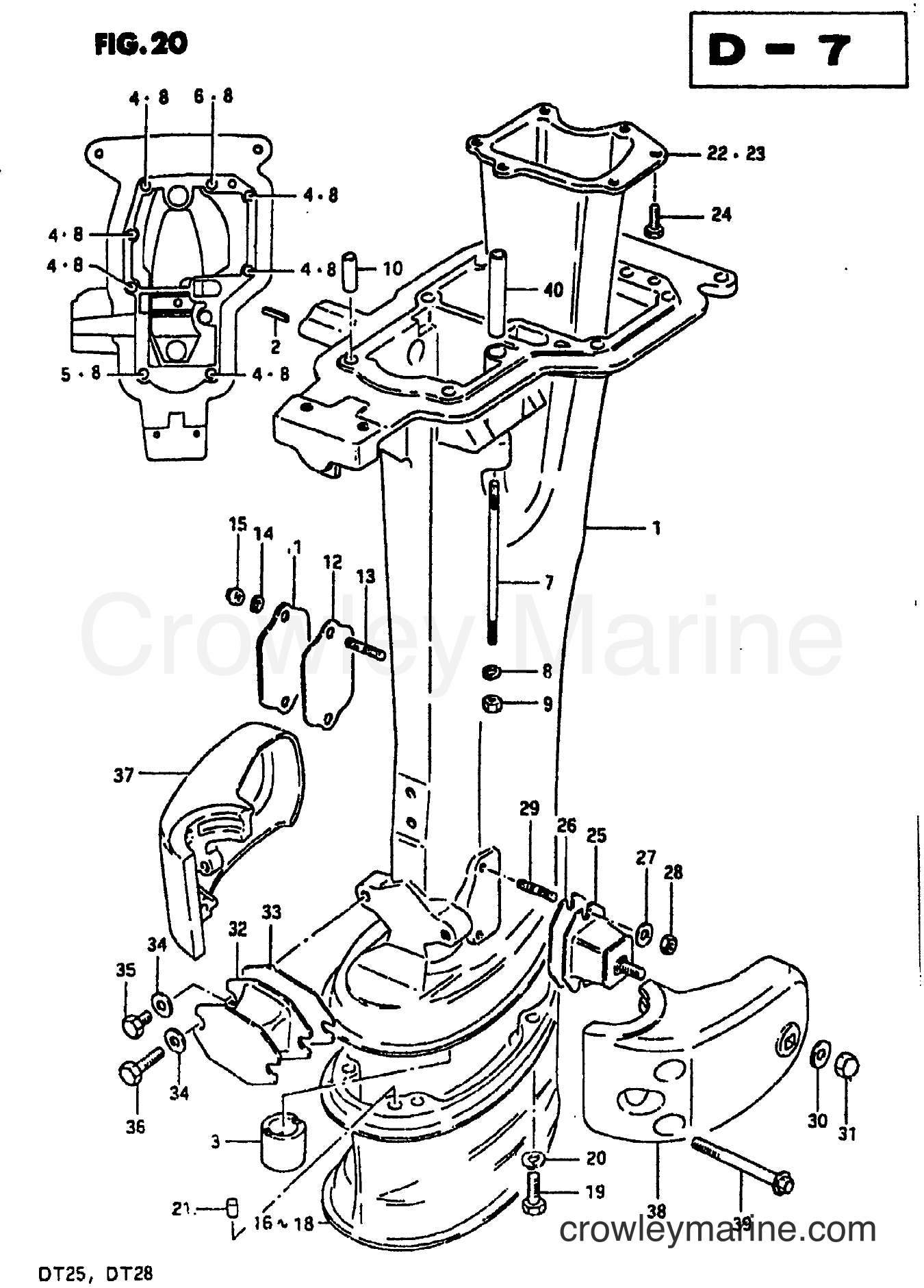

1981 Two-Stroke Outboard 25 - DT25P DRIVESHAFT HOUSING diagram
-15%
1
Suzuki Marine
Obsolete Suzuki Part52110-93405-01J
Required: 1
HOUSING, DRIVESHAFT TO (52110-93405-01J)+(09100-06072)
Supersedes: 52110-93404-01J
No longer availableSearch Nationwide Inventory
$215.33
You save $38.00
-15%
1
Suzuki Marine
Obsolete Suzuki Part52110-93405-01J
Required: 1
HOUSING, DRIVESHAFT
No longer availableSearch Nationwide Inventory
$215.33
You save $38.00
-15%
2
Suzuki Marine
PIN09205-05014
Required: 1
PIN, CLUTCH LEVER
Supersedes: 09205-05001
$2.03
You save $0.36
-15%
3
Suzuki Marine
Obsolete Suzuki Part09305-15002
Required: 1
BUSHING (LL,UL TYPE)
No longer availableSearch Nationwide Inventory
$23.27
You save $4.11
-15%
4
Suzuki Marine
Obsolete Suzuki Part09117-06035
Required: 6
BOLT (1) (6x45) (MODEL G)
Supersedes: 09100-06046
No longer availableSearch Nationwide Inventory
$1.72
You save $0.30
-15%
4
Suzuki Marine
Obsolete Suzuki Part09117-06035
Required: 5
BOLT (1) (6x45)
Supersedes: 09100-06046
No longer availableSearch Nationwide Inventory
$1.72
You save $0.30
-15%
5
Suzuki Marine
Supersedes to 01550-0665709100-06118
Required: 1
BOLT (2) (6x65)
Supersedes: 09100-06072
No longer availableSearch Nationwide Inventory
$1.25
You save $0.22
-15%
5
Suzuki Marine
Supersedes to 01550-0665709100-06118
Required: 2
BOLT (2) (6x65)
Supersedes: 09100-06072
No longer availableSearch Nationwide Inventory
$1.25
You save $0.22
-15%
6
Suzuki Marine
Obsolete Suzuki Part09100-06021
Required: 1
BOLT (3) (6x50)
No longer availableSearch Nationwide Inventory
$0.81
You save $0.14
-15%
7
Suzuki Marine
Obsolete Suzuki Part09108-06031
Required: 1
STUD BOLT, HOUSING
No longer availableSearch Nationwide Inventory
$3.60
You save $0.64
-15%
8
Suzuki Marine
WASHER09162-06006
Required: 9
LOCK WASHER
Supersedes: 09162-06001
$1.60
You save $0.28
-20%
9
Suzuki Marine
Nut09140-06020
Required: 1
NUT
Supersedes: 09140-06004
In stock
Only 2 remaining
$1.67
You save $0.42
-15%
No longer availableSearch Nationwide Inventory
$2.02
You save $0.36
-15%
11
Suzuki Marine
Obsolete Suzuki Part52115-93000-01J
Required: 1
COVER, CLUTCH ADJUSTING HOLE
No longer availableSearch Nationwide Inventory
$6.98
You save $1.23
-15%
12
Suzuki Marine
Obsolete Suzuki Part52116-93060
Required: 1
GASKET, HOLE
Supersedes: 52116-93001
No longer availableSearch Nationwide Inventory
$2.91
You save $0.51
-15%
13
Suzuki Marine
BOLT STUD09108-06062
Required: 2
STUD BOLT
Supersedes: 09108-06022
$1.57
You save $0.28
-15%
14
Suzuki Marine
WASHER09162-06006
Required: 2
LOCK WASHER
Supersedes: 09162-06001
$1.60
You save $0.28
-15%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.15
-15%
No longer availableSearch Nationwide Inventory
$48.66
You save $8.59
17
Suzuki Marine
CASE, EXTENSION52131-93710-01J
Required: 1
CASE, EXTENSION
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$83.38
You save $14.72
-15%
19
Suzuki Marine
BOLT09100-08232
Required: 5
BOLT, EXTENSION (8x30)
Supersedes: 09100-08112
$3.48
You save $0.61
-20%
20
Suzuki Marine
WASHER LOCK09162-08007
Required: 5
LOCK WASHER
Supersedes: 09162-08003
$1.50
You save $0.38
-15%
No longer availableSearch Nationwide Inventory
$0.54
You save $0.09
-15%
22
Suzuki Marine
Obsolete Suzuki Part52141-93400
Required: 1
TUBE, EXHAUST (L:150)
No longer availableSearch Nationwide Inventory
$38.70
You save $6.83
-15%
23
Suzuki Marine
Obsolete Suzuki Part52141-93410
Required: 1
TUBE, EXHAUST (L:250)
No longer availableSearch Nationwide Inventory
$38.47
You save $6.79
-15%
24
Suzuki Marine
BOLT01500-05127
Required: 6
BOLT, EXHAUST TUBE (5x12)
Supersedes: 09100-05004
$2.25
You save $0.40
-15%
25
Suzuki Marine
EFI Box Mount (Top)54130-93402
Required: 2
MOUNTING, LOWER
No longer availableSearch Nationwide Inventory
$49.47
You save $8.73
-15%
No longer availableSearch Nationwide Inventory
$0.65
You save $0.12
-20%
27
Suzuki Marine
WASHER09160-06082
Required: 4
WASHER (1) (6.5x11.5x0.8)
Supersedes: 09160-06015
In stock
Only 1 remaining
$1.42
You save $0.36
-20%
28
Suzuki Marine
Nut09140-06020
Required: 4
NUT
Supersedes: 09140-06004
In stock
Only 2 remaining
$1.67
You save $0.42
-15%
29
Suzuki Marine
BOLT STUD09108-06062
Required: 4
STUD BOLT (6x12)
Supersedes: 09108-06022
$1.57
You save $0.28
-20%
30
Suzuki Marine
WASHER09160-08082
Required: 2
WASHER (2) (8.5x16x1.2)
Supersedes: 09160-08015
$1.64
You save $0.41
-15%
31
Suzuki Marine
Obsolete Suzuki Part09145-08002
Required: 2
CROWN NUT, LOWER MOUNTING
No longer availableSearch Nationwide Inventory
$1.16
You save $0.21
-15%
32
Suzuki Marine
Obsolete Suzuki Part54150-93400
Required: 1
MOUNTING, THRUST LOWER
No longer availableSearch Nationwide Inventory
$21.79
You save $3.85
-15%
33
Suzuki Marine
Obsolete Suzuki Part54139-93400
Required: 1
SEAT, THRUST MOUNT
No longer availableSearch Nationwide Inventory
$0.89
You save $0.16
-20%
34
Suzuki Marine
WASHER09160-08082
Required: 4
WASHER (8.5x16x1.2)
Supersedes: 09160-08015
$1.64
You save $0.41
-15%
No longer availableSearch Nationwide Inventory
$0.74
You save $0.13
-15%
36
Suzuki Marine
BOLT,TRIM TAB09100-08215
Required: 2
BOLT (8x30)
Supersedes: 09100-08137
No longer availableSearch Nationwide Inventory
$2.34
You save $0.41
37
Suzuki Marine
Supersedes to 54211-93004-01J54211-93003-01J
Required: 1
COVER, MOUNTING LOWER RH
No longer availableSearch Nationwide Inventory
Price unavailable
38
Suzuki Marine
Supersedes to 54221-93004-01J54221-93003-01J
Required: 1
COVER, MOUNTING LOWER LH
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
39
Suzuki Marine
Obsolete Suzuki Part09103-08006
Required: 2
BOLT, COVER (8x60)
No longer availableSearch Nationwide Inventory
$2.02
You save $0.36
-15%
No longer availableSearch Nationwide Inventory
$1.56
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
