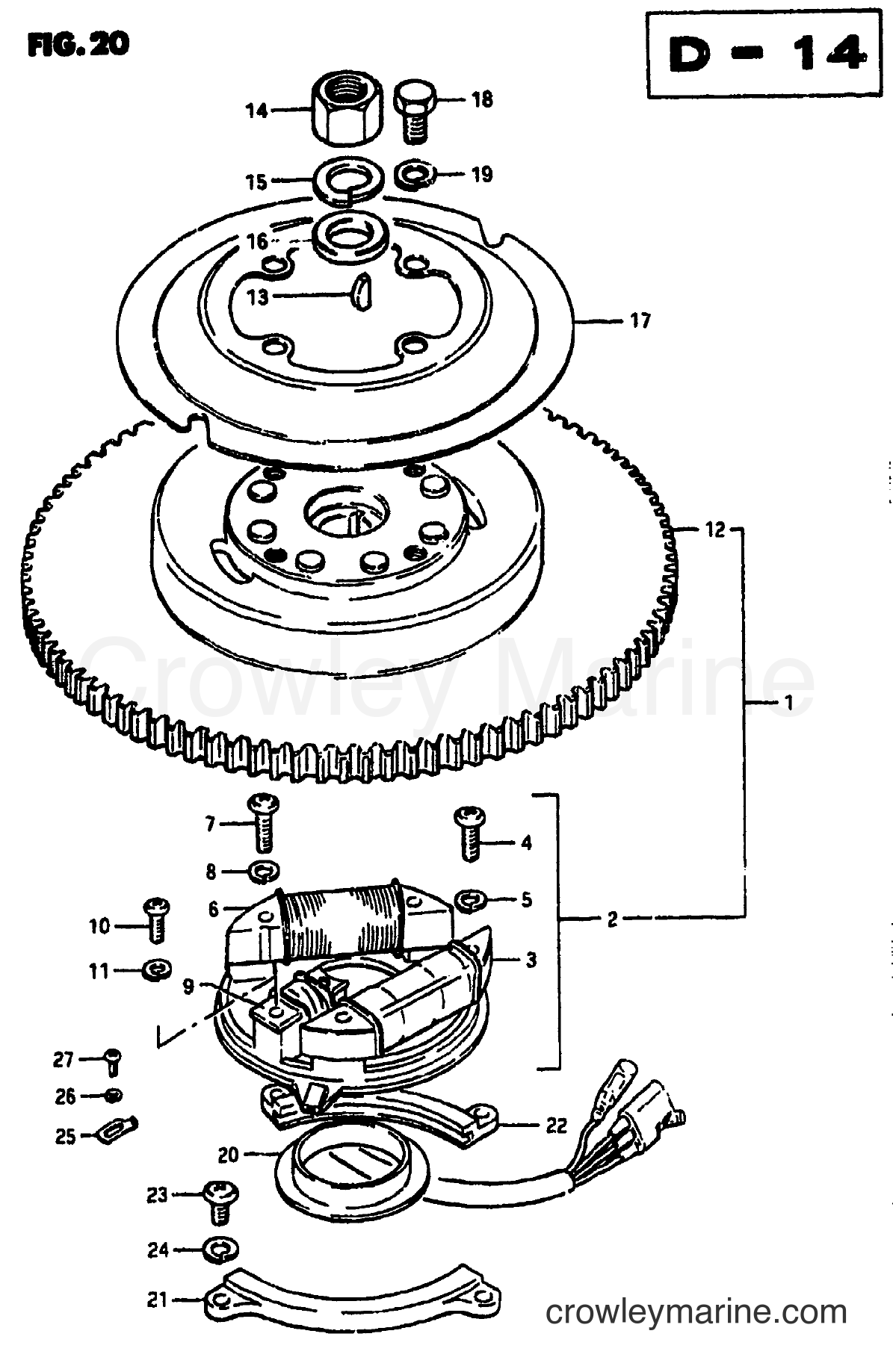

1977 Two-Stroke Outboard 65 - DT65 MAGNETO (DT65F) diagram
1
Suzuki Marine
Supersedes to 32101-9533432100-95331
Required: 1
MAGNETO ASSY
Supersedes: 32100-95330
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
2
Suzuki Marine
Obsolete Suzuki Part32101-95335
Required: 1
.STATOR ASSY
Supersedes: 32101-95331
No longer availableSearch Nationwide Inventory
$277.02
You save $48.88
-15%
3
Suzuki Marine
COIL PRIMARY32140-93502
Required: 1
..COIL, BATTERY CHARGING
Supersedes: 32140-93232
No longer availableSearch Nationwide Inventory
$79.65
You save $14.06
-15%
4
Suzuki Marine
Screw (M8 X 40)02112-05207
Required: 2
..SCREW
Supersedes: 02112-05208
$2.09
You save $0.37
-15%
5
Suzuki Marine
Supersedes to 08321-0105708321-21057
Required: 2
..LOCK WASHER
Supersedes: 08321-21058
No longer availableSearch Nationwide Inventory
$0.40
You save $0.07
-15%
6
Suzuki Marine
Obsolete Suzuki Part32120-95301
Required: 1
..COIL, LIGHTING
Supersedes: 32120-95330
No longer availableSearch Nationwide Inventory
$33.80
You save $5.96
-15%
7
Suzuki Marine
SCREW 5X2502112-05257
Required: 2
..SCREW
Supersedes: 02112-05258
$1.60
You save $0.28
-15%
8
Suzuki Marine
Supersedes to 08321-0105708321-21057
Required: 2
..LOCK WASHER
Supersedes: 08321-21058
No longer availableSearch Nationwide Inventory
$0.40
You save $0.07
-15%
9
Suzuki Marine
Obsolete Suzuki Part32150-95331
Required: 1
..SENSOR, IGNITION TIMING
No longer availableSearch Nationwide Inventory
$97.54
You save $17.21
-15%
10
Suzuki Marine
Supersedes to 02112-0416302112-04167
Required: 2
..SCREW
Supersedes: 02112-04168
No longer availableSearch Nationwide Inventory
$0.37
You save $0.06
-15%
11
Suzuki Marine
Supersedes to 08321-0104308321-21047
Required: 2
..LOCK WASHER
Supersedes: 08321-21048
No longer availableSearch Nationwide Inventory
$0.47
You save $0.08
12
Suzuki Marine
.ROTOR32102-95330
Required: 1
.ROTOR
Price unavailable
No longer availableSearch Nationwide Inventory
Price unavailable
-20%
$2.49
You save $0.62
-15%
14
Suzuki Marine
Nut08310-0018A
Required: 1
NUT
Supersedes: 08310-12188
$3.05
You save $0.54
-15%
$3.53
You save $0.62
-15%
No longer availableSearch Nationwide Inventory
$2.44
You save $0.43
-15%
17
Suzuki Marine
Obsolete Suzuki Part32725-95310
Required: 1
INSULATOR, MAGNETO
Supersedes: 32725-95300
No longer availableSearch Nationwide Inventory
$9.91
You save $1.75
-15%
No longer availableSearch Nationwide Inventory
$0.59
You save $0.10
-50%
19
Suzuki Marine
Lock Washer08321-01087
Required: 4
LOCK WASHER
Supersedes: 08321-21088
In stock
5+ in stock
$1.15
You save $1.15
-15%
20
Suzuki Marine
Obsolete Suzuki Part32395-95302
Required: 1
RETAINER, MAGNETO BACE 1
Supersedes: 32395-95301
No longer availableSearch Nationwide Inventory
$2.80
You save $0.49
-15%
21
Suzuki Marine
Obsolete Suzuki Part32396-95302
Required: 1
RETAINER, MAGNETO BACE 2
Supersedes: 32396-95301
No longer availableSearch Nationwide Inventory
$3.14
You save $0.55
22
Suzuki Marine
Obsolete Suzuki Part32397-95301
Required: 1
RETAINER, MAGNETO BASE 3
No longer availableSearch Nationwide Inventory
Price unavailable
-15%
23
Suzuki Marine
Screw (M8 X 40)02112-06127
Required: 4
SCREW
Supersedes: 02112-06128
$1.95
You save $0.34
-15%
24
Suzuki Marine
Supersedes to 08321-0106708321-21067
Required: 4
LOCK WASHER
Supersedes: 08321-21068
No longer availableSearch Nationwide Inventory
$0.40
You save $0.07
-15%
25
Suzuki Marine
Obsolete Suzuki Part32398-95300
Required: 1
STOPPER, MAGNETO STATER
No longer availableSearch Nationwide Inventory
$1.52
You save $0.27
-15%
No longer availableSearch Nationwide Inventory
$0.83
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
