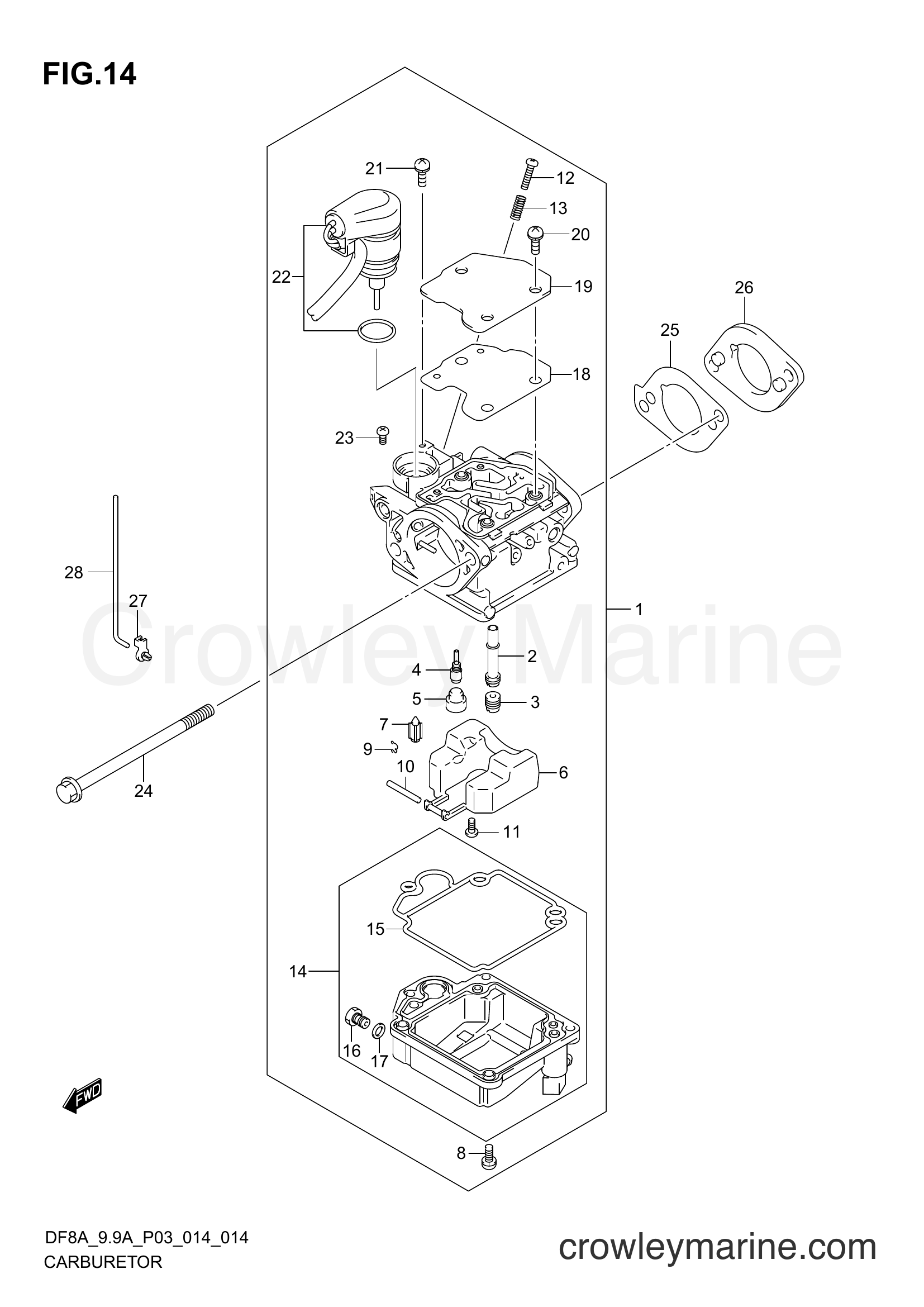

Serial Range Four-Stroke Outboard 9.9 - DF9.9A 410001~ CARBURETOR (DF8AR P03) diagram
1
Suzuki Marine
CARBURETOR ASSY13200-99J10
Required: 1
CARBURETOR ASSY
Price unavailable
-15%
2
Suzuki Marine
NOZZLE,MAINE13236-99J00
Required: 1
.NOZZLE, MAIN
No longer availableSearch Nationwide Inventory
$19.92
You save $3.52
3
Suzuki Marine
.JET, MAIN (70)09491-70020
Required: 1
.JET, MAIN (70)
Price unavailable
-15%
3
Suzuki Marine
JET,MAIN (68)09491-68008
Required: 1
.JET, MAIN (68)
No longer availableSearch Nationwide Inventory
$8.76
You save $1.54
-20%
4
Suzuki Marine
PILOT JET, (38)09492-38011
Required: 1
.JET, PILOT (38)
$12.86
You save $3.22
-15%
4
Suzuki Marine
JET, PILOT (35)09492-35033
Required: 1
.JET, PILOT (35)
$12.90
You save $2.28
-15%
5
Suzuki Marine
Rubber Cap13239-94J00
Required: 1
.CAP, RUBBER
$6.70
You save $1.18
-15%
$35.26
You save $6.22
-20%
7
Suzuki Marine
VALVE COMP,FLOA13370-94J00
Required: 1
.VALVE, FLOAT
$19.60
You save $4.90
-15%
No longer availableSearch Nationwide Inventory
$8.62
You save $1.52
-20%
$5.62
You save $1.40
-15%
$2.98
You save $0.53
-15%
$3.22
You save $0.57
-15%
12
Suzuki Marine
Stop Screw13534-94J00
Required: 1
.SCREW, STOP
In stock
Only 1 remaining
$7.41
You save $1.31
-15%
In stock
Only 1 remaining
$4.27
You save $0.75
14
Suzuki Marine
.CHAMBER ASSY, FLOAT13240-99J10
Required: 1
.CHAMBER ASSY, FLOAT
Price unavailable
-20%
15
Suzuki Marine
GASKET,FRONT13251-99J00
Required: 1
..GASKET, FLOAT CHAMBER
$10.24
You save $2.56
-15%
16
Suzuki Marine
SCREW,DRAIN13279-99J00
Required: 1
..SCREW, DRAIN
$5.25
You save $0.93
-15%
17
Suzuki Marine
WASHER,PLANE13275-99J00
Required: 1
..WASHER, PLANE
$5.46
You save $0.96
-15%
$7.56
You save $1.33
-15%
No longer availableSearch Nationwide Inventory
$12.10
You save $2.13
-50%
In stock
Only 2 remaining
$2.51
You save $2.51
-50%
In stock
Only 2 remaining
$2.51
You save $2.51
-20%
22
Suzuki Marine
Starter Motor Assembly13368-99J01
Required: 1
.STARTER ASSY
Supersedes: 13368-99J00
$134.95
You save $33.28
-15%
$4.61
You save $0.81
-15%
24
Suzuki Marine
BOLT09103-06276
Required: 2
BOLT (6X100)
$4.00
You save $0.71
-20%
25
Suzuki Marine
GASKET,CARBURET13125-99J00
Required: 2
GASKET, CARBURETOR
$4.44
You save $1.11
-15%
$36.23
You save $6.39
-20%
27
Suzuki Marine
CONNECTOR,CHOKE13436-91J00
Required: 1
CONNECTOR, THROTTLE ROD
In stock
Only 1 remaining
$2.82
You save $0.70
-15%
No longer availableSearch Nationwide Inventory
$4.65
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
