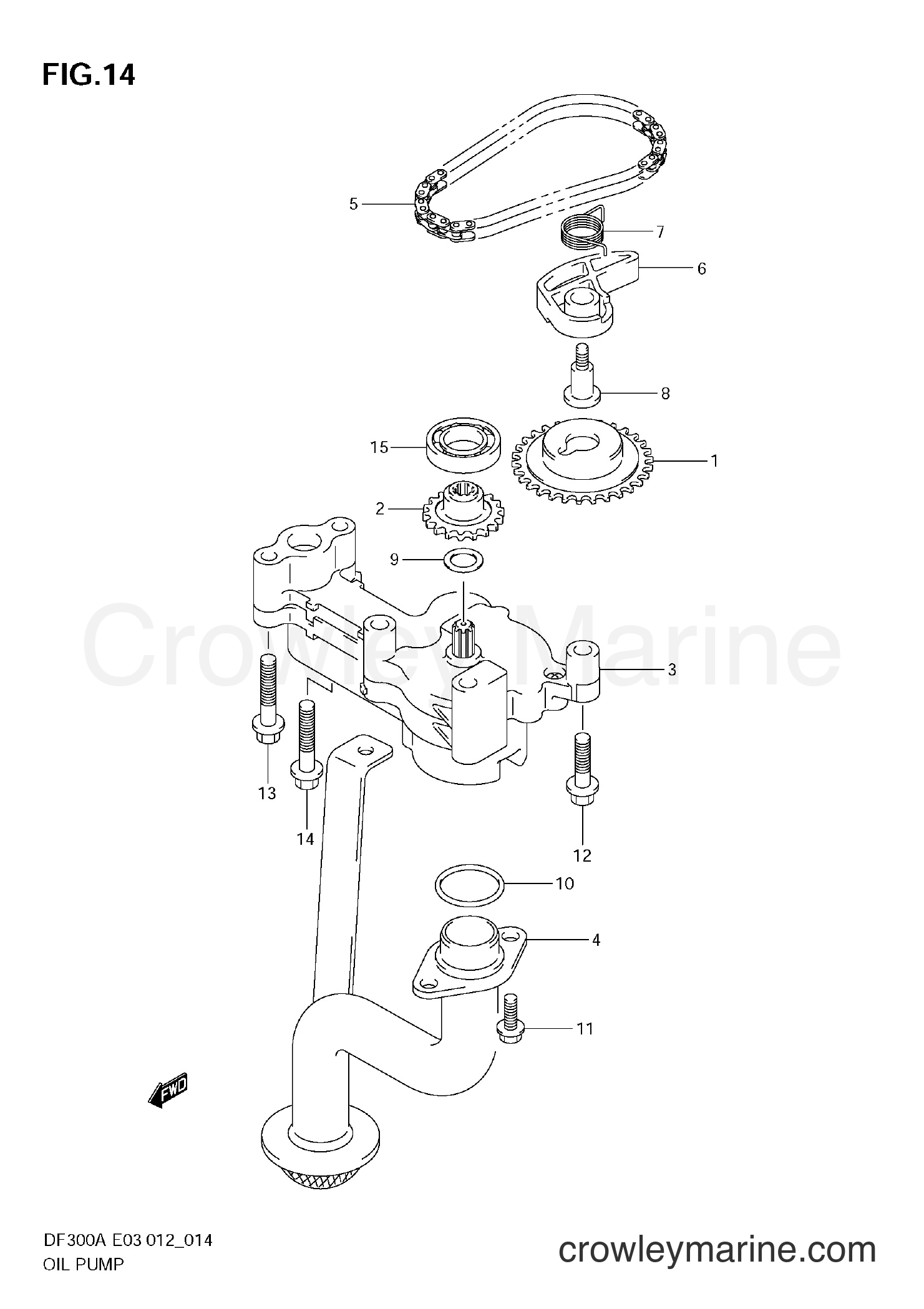

Serial Range Four-Stroke Outboard 300 - DF300AP 30002 OIL PUMP diagram
-15%
1
Suzuki Marine
SPROCKET,OIL PU12632-93J11
Required: 1
SPROCKET, OIL PUMP DRIVE
$56.16
You save $9.91
-15%
2
Suzuki Marine
SPROCKET,OIL PU16113-93J10
Required: 1
SPROCKET, OIL PUMP DRIVEN
$31.86
You save $5.62
-15%
3
Suzuki Marine
PUMP ASSY,OIL16400-93J10
Required: 1
PUMP ASSY, OIL
Supersedes: 16400-93J02
No longer availableSearch Nationwide Inventory
$124.39
You save $21.95
-15%
4
Suzuki Marine
STRAINER COMP,O16520-93J00
Required: 1
STRAINER, OIL PUMP
$43.47
You save $7.67
-15%
5
Suzuki Marine
CHAIN,OIL PUMP16760-93J00
Required: 1
CHAIN, OIL PUMP DRIVE
$39.66
You save $7.00
-15%
6
Suzuki Marine
TENSIONER,OIL P16781-93J00
Required: 1
TENSIONER, OIL PUMP CHAIN
$21.54
You save $3.80
-15%
7
Suzuki Marine
SPRING,OIL PUMP16782-93J00
Required: 1
SPRING, OIL PUMP TENSIONER
$7.81
You save $1.38
-15%
8
Suzuki Marine
BOLT,OIL PUMP T16783-93J01
Required: 1
BOLT, OIL PUMP TENSIONER
$5.64
You save $0.99
-15%
9
Suzuki Marine
SHIM,12X20X0.509181-12158
Required: 1
SHIM (12X20X0.5)
$2.38
You save $0.42
-20%
10
Suzuki Marine
ORING PLUG RESE09280-22020
Required: 2
O RING (D:2.4,ID:21.8)
In stock
Only 3 remaining
$3.34
You save $0.84
-15%
$2.08
You save $0.37
-15%
$3.43
You save $0.60
-15%
$3.81
You save $0.67
-15%
$3.87
You save $0.68
-15%
$17.07
You save $3.01
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
