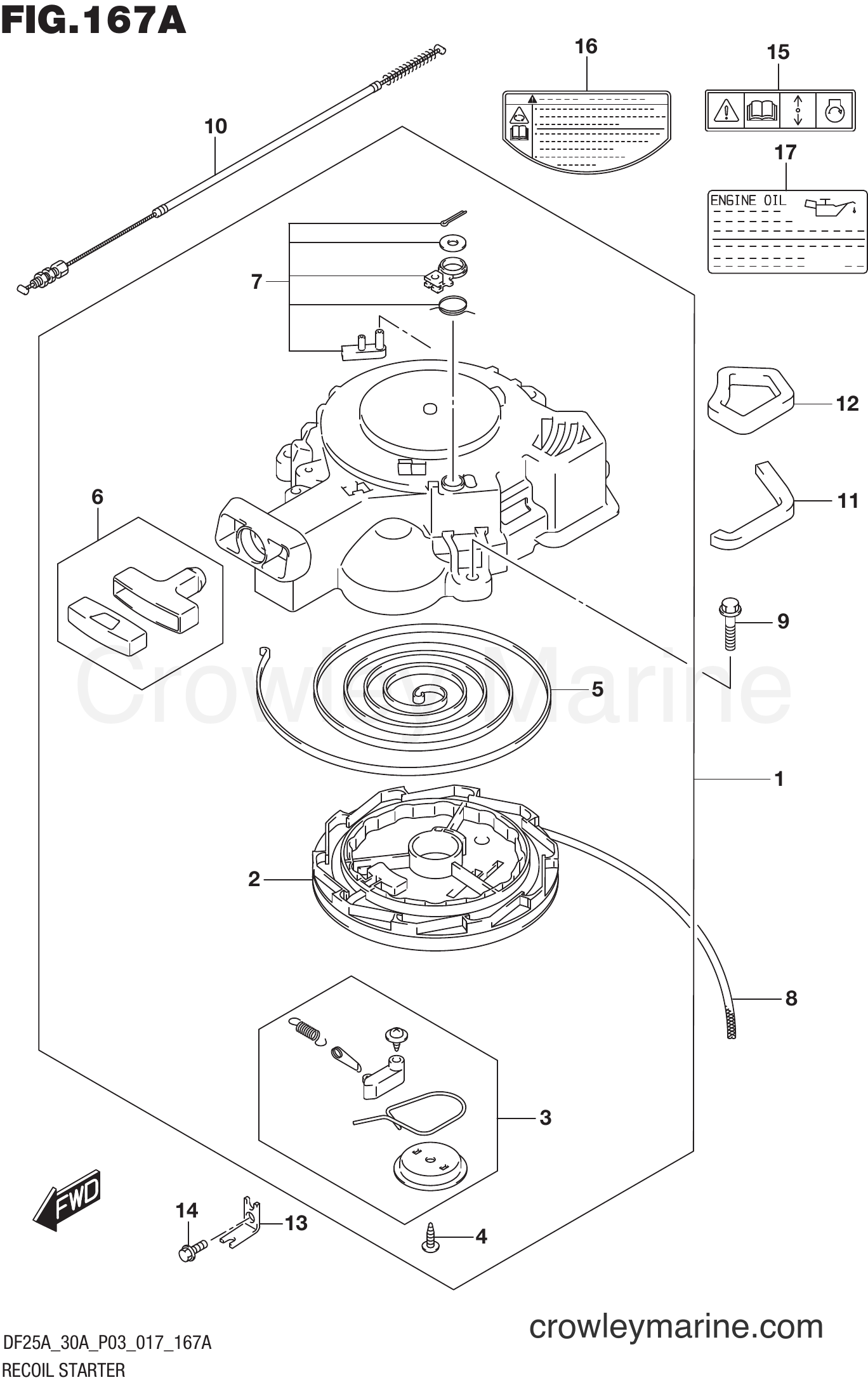

Serial Range Four-Stroke Outboard 25 - DF25A 710001~ RECOIL STARTER diagram
-15%
1
Suzuki Marine
STARTER ASSY,RE18100-94L00
Required: 1
STARTER ASSY, RECOIL
$293.88
You save $51.86
-15%
$64.44
You save $11.37
-15%
3
Suzuki Marine
RATCHET SET18130-93E01
Required: 1
.RATCHET SET
$16.74
You save $2.96
-15%
$2.19
You save $0.39
-20%
5
Suzuki Marine
Spiral Spring18142-93E00
Required: 1
.SPRING, SPIRAL
$25.21
You save $6.30
-20%
$11.42
You save $2.86
-20%
$9.06
You save $2.26
-15%
8
Suzuki Marine
STARTER ROPE 5M99000-81158-50M
Required: 1
STARTER ROPE 5MMDIA, 50M ROLE
$261.02
You save $46.06
9
Suzuki Marine
BOLT01550-0630C
Required: 3
BOLT
Price unavailable
-15%
10
Suzuki Marine
CABLE ASSY,NSI18290-94L00
Required: 1
CABLE ASSY, NSI
$14.43
You save $2.55
-15%
11
Suzuki Marine
SEAL,AIR RECOIL18193-94L00
Required: 1
SEAL, AIR RECOIL LOWER
$1.75
You save $0.31
-15%
12
Suzuki Marine
SEAL,AIR RECOIL18194-94L00
Required: 1
SEAL, AIR RECOIL UPPER
$2.37
You save $0.42
-15%
13
Suzuki Marine
BRACKET,NSI CAB18295-94L00
Required: 1
BRACKET, NSI CABLE
$3.20
You save $0.57
-20%
$1.74
You save $0.44
-15%
15
Suzuki Marine
LABEL,S.I.G.P69711-93E10
Required: 1
LABEL, S.I.G.P.
No longer availableSearch Nationwide Inventory
$3.96
You save $0.70
16
Suzuki Marine
LABEL, RECOIL, STARTER61472-97J00
Required: 1
LABEL, RECOIL, STARTER
Price unavailable
-15%
17
Suzuki Marine
LABEL,OIL CL61494-94L01
Required: 1
LABEL, OIL / CLEARANCE
$1.61
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
