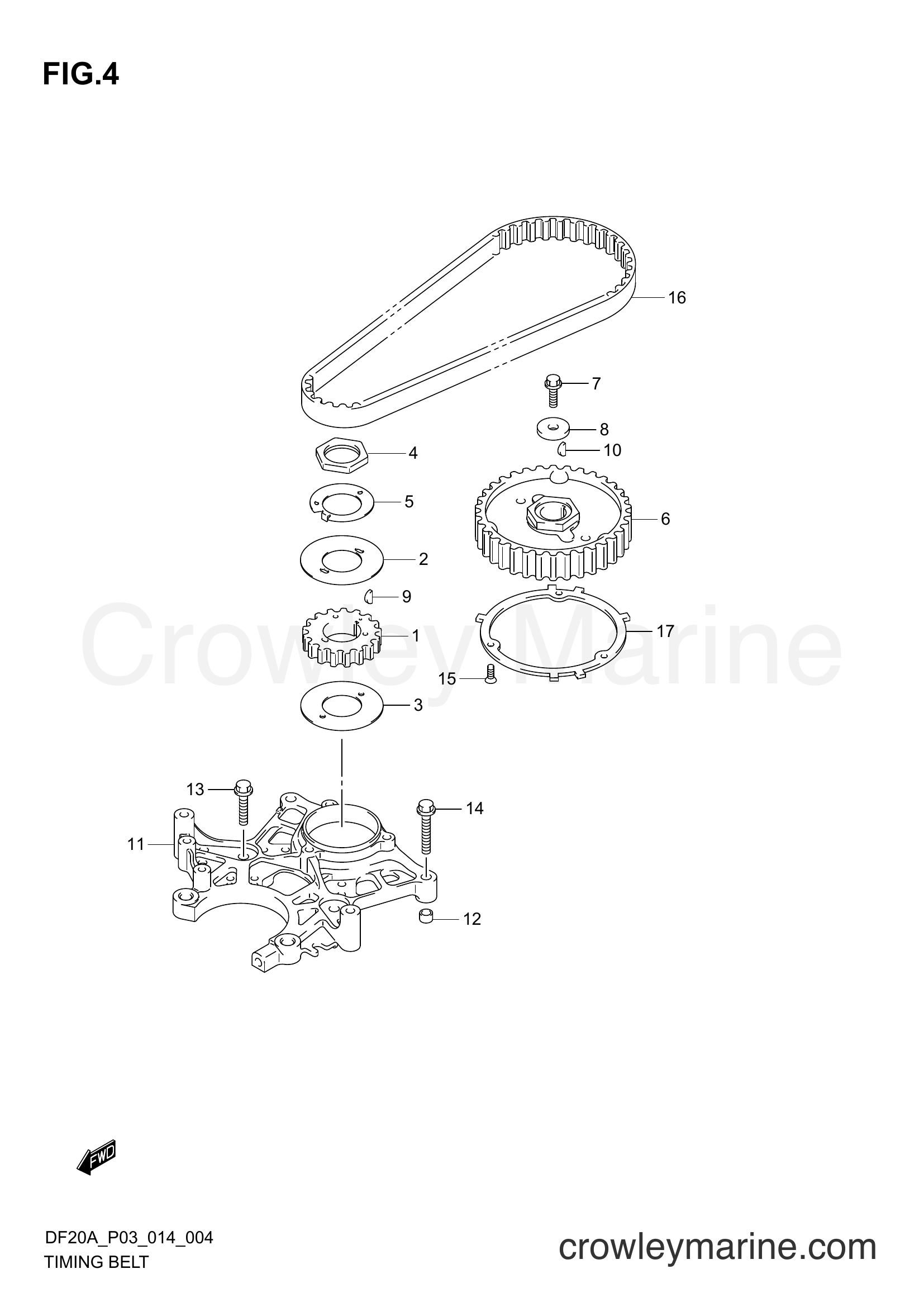

Serial Range Four-Stroke Outboard 15 - DF15A 02002F-410001~ TIMING BELT diagram
-15%
1
Suzuki Marine
PULLEY,CRANKSHA12631-89L10
Required: 1
PULLEY, CRANKSHAFT (NT:17)
No longer availableSearch Nationwide Inventory
$56.00
You save $9.88
-15%
2
Suzuki Marine
GUIDE,TIMING BE12635-89L00
Required: 1
GUIDE, TIMING BELT
$7.62
You save $1.34
-15%
3
Suzuki Marine
GUIDE,TIMING BE12636-89L00
Required: 1
GUIDE, TIMING BELT (LOWER)
No longer availableSearch Nationwide Inventory
$7.13
You save $1.26
-15%
4
Suzuki Marine
NUT,TIMING PULL12637-89L00
Required: 1
NUT, TIMING PULLEY
$8.93
You save $1.58
-15%
5
Suzuki Marine
WASHER,PULLEY N12638-89L00
Required: 1
WASHER, PULLEY NUT LOCK
$3.93
You save $0.69
-15%
6
Suzuki Marine
PULLEY,CAMSHAFT12741-89L00
Required: 1
PULLEY, CAMSHAFT (NT:34)
No longer availableSearch Nationwide Inventory
$68.73
You save $12.13
-15%
No longer availableSearch Nationwide Inventory
$2.81
You save $0.50
8
Suzuki Marine
WASHER09160-06171
Required: 1
WASHER
Price unavailable
-20%
$1.90
You save $0.47
-20%
$1.90
You save $0.47
-15%
11
Suzuki Marine
BASE,STATOR12625-89L01
Required: 1
BASE, STATOR
$27.95
You save $4.93
-15%
$1.74
You save $0.31
-20%
In stock
Only 5 remaining
$2.30
You save $0.58
-15%
$3.02
You save $0.53
-15%
$2.09
You save $0.37
-20%
16
Suzuki Marine
BELT,TIMING12761-93EL0
Required: 1
BELT, TIMING
PartX Recommends:Suzuki Marine 12761-93EL0
In stock
Only 1 remaining
$45.16
You save $11.29
-50%
17
Suzuki Marine
PLATE,SENSING12744-89L00
Required: 1
PLATE, SENSING
In stock
Only 1 remaining
$20.77
You save $20.77
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
