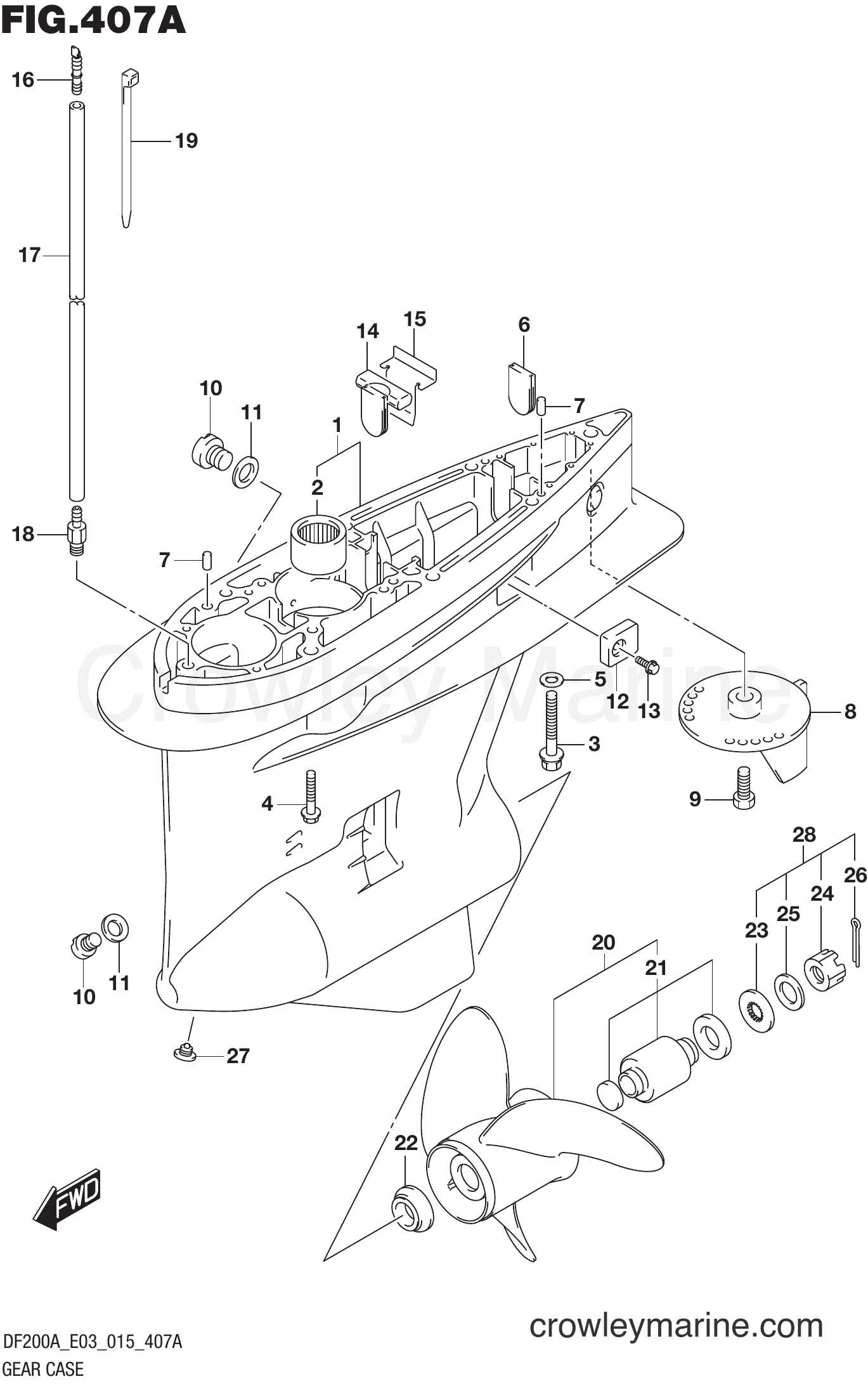

Serial Range Four-Stroke Outboard 200 - DF200AT 510001~ GEAR CASE (DF200AT E03) diagram
-15%
1
Suzuki Marine
CASE COMP,GEAR55110-93J20-0EP
Required: 1
CASE, GEAR (BLACK)
$1989.66
You save $351.12
-15%
1
Suzuki Marine
CASE,GEAR55110-93J20-Y5S
Required: 1
CASE, GEAR (WHITE)
$1959.10
You save $345.72
-15%
2
Suzuki Marine
BEARING,PINION09263-32017
Required: 1
.BEARING (32X48X30)
$179.59
You save $31.69
-20%
$10.82
You save $2.70
-20%
4
Suzuki Marine
BOLT,10X5509116-10150
Required: 6
BOLT (10X55)
$15.73
You save $3.93
-20%
5
Suzuki Marine
WASHER09160-12066
Required: 1
WASHER (12.5X22X2.5)
In stock
Only 2 remaining
$1.78
You save $0.45
-15%
6
Suzuki Marine
GROMMET, WATER TUBE (UPPER)17566-87D12
Required: 1
GROMMET, GEAR CASE
Supersedes: 17566-87D11
In stock
Only 1 remaining
$6.49
You save $1.14
-15%
7
Suzuki Marine
PIN09202-08006
Required: 2
PIN (8X12)
$2.69
You save $0.47
-20%
8
Suzuki Marine
TAB,TRIM55125-98J00-0EP
Required: 1
TAB, TRIM (BLACK)
$111.95
You save $27.64
-15%
8
Suzuki Marine
TAB,TRIM (WHITE55125-98J00-Y5S
Required: 1
TAB, TRIM (WHITE)
$129.95
You save $22.92
-20%
In stock
Only 2 remaining
$7.34
You save $1.83
-20%
In stock
Only 3 remaining
$5.42
You save $1.35
-20%
11
Suzuki Marine
GASKET,DRAIN PL09168-10038
Required: 3
GASKET (9.5X16.5X2)
Supersedes: 09168-10034
In stock
5+ in stock
$2.21
You save $0.55
-20%
12
Suzuki Marine
ANODE,PROTECTIO55321-93J50
Required: 2
ANODE, PROTECTION
Supersedes: 55321-93J00
In stock
Only 2 remaining
$7.76
You save $1.94
-20%
$1.62
You save $0.41
-15%
14
Suzuki Marine
RUBBER,EXHAUST55332-87D11
Required: 1
RUBBER, EXHAUST SEAL
No longer availableSearch Nationwide Inventory
$5.85
You save $1.03
-15%
15
Suzuki Marine
PLATE,EXHAUST S55333-87D10
Required: 1
PLATE, EXHAUST SEAL
$10.64
You save $1.88
-20%
16
Suzuki Marine
UNION,SPEEDOMET55127-87D00
Required: 1
UNION, SPEEDOMETER HOSE
$3.50
You save $0.88
-20%
17
Suzuki Marine
Hose09355-40805-600
Required: 1
HOSE (4X8X600)
$9.73
You save $2.43
-20%
In stock
Only 2 remaining
$2.67
You save $0.67
-15%
19
Suzuki Marine
Clamp09407-10404
Required: 2
CLAMP (L:100)
$2.69
You save $0.48
20
Suzuki Marine
PROPELLER (3X16X17)58200-93L00
Required: 1
PROPELLER (3X16X17)
Price unavailable
20
Suzuki Marine
PROPELLER (4X15.25X18)58300-93J00
Required: 1
PROPELLER (4X15.25X18)
Price unavailable
-15%
20
Suzuki Marine
Supersedes to 990C0-00510-20P990C0-00500-20P
Required: 1
PROPELLER (4X15.25X20)
Supersedes: 58300-93J10
No longer availableSearch Nationwide Inventory
$623.01
You save $109.94
-15%
20
Suzuki Marine
4B15.25D22P SS58300-93J20
Required: 1
PROPELLER (4X15.25X22)
$773.84
You save $136.56
-15%
20
Suzuki Marine
4B15.25D24P SS58300-93J30
Required: 1
PROPELLER (4X15.25X24)
$900.35
You save $158.88
-15%
20
Suzuki Marine
4B 15.25 X 26 P990C0-00500-26P
Required: 1
PROPELLER (4X15.25X26)
Supersedes: 58300-93J40
No longer availableSearch Nationwide Inventory
$636.16
You save $112.26
20
Suzuki Marine
PROPELLER (3X15.5X17)58200-96J00
Required: 1
PROPELLER (3X15.5X17)
Price unavailable
-15%
20
Suzuki Marine
Supersedes to 990C0-00840-19P990C0-00830-19P
Required: 1
PROPELLER (3X15.25X19)
Supersedes: 58200-96J10
No longer availableSearch Nationwide Inventory
$509.11
You save $89.84
20
Suzuki Marine
PROPELLER (3X15X21)58200-96J20
Required: 1
PROPELLER (3X15X21)
Price unavailable
20
Suzuki Marine
PROPELLER (3X14.75X23)58200-96J30
Required: 1
PROPELLER (3X14.75X23)
Price unavailable
-15%
20
Suzuki Marine
SSPROP 3/X14.75990C0-00840-25P
Required: 1
PROPELLER (3X14.5X25)
Supersedes: 58200-96J40
$657.25
You save $115.98
-15%
20
Suzuki Marine
Supersedes to 990C0-00800-18558200-93L10
Required: 1
PROPELLER (3X16X18.5)
No longer availableSearch Nationwide Inventory
$665.33
You save $117.41
20
Suzuki Marine
PROPELLER (3X14.5X27)58200-96J50
Required: 1
PROPELLER (3X14.5X27)
Price unavailable
-15%
20
Suzuki Marine
SS PROP 3X16X20990C0-00810-20P
Required: 1
PROPELLER (3X16X20)
Supersedes: 58200-93L20
$609.77
You save $107.61
-20%
20
Suzuki Marine
SS PROP 3X16X21990C0-00810-215
Required: 1
PROPELLER (3X16X21.5)
Supersedes: 58200-93L30
$573.95
You save $143.43
20
Suzuki Marine
PROPELLER (3X16X23)58200-93L40
Required: 1
PROPELLER (3X16X23)
Price unavailable
20
Suzuki Marine
PROPELLER (3X16X24.5)58200-93L50
Required: 1
PROPELLER (3X16X24.5)
Price unavailable
20
Suzuki Marine
PROPELLER (3X16X26)58200-93L60
Required: 1
PROPELLER (3X16X26)
Price unavailable
-15%
20
Suzuki Marine
SS PROP 3X16X27990C0-00810-275
Required: 1
PROPELLER (3X16X27.5)
Supersedes: 58200-93L70
$609.77
You save $107.61
20
Suzuki Marine
PROPELLER (3X16X15)58200-93L80
Required: 1
PROPELLER (3X16X15)
Price unavailable
-15%
21
Suzuki Marine
BUSH SET,PROP58105-93J10
Required: 1
.BUSH SET, PROPELLER
$159.69
You save $28.18
-15%
22
Suzuki Marine
STOPPER,PROP BU57632-93L01
Required: 1
STOPPER, PROPELLER BUSH
$57.77
You save $10.20
-15%
23
Suzuki Marine
SPACER,NUT(T:6.57633-87D40
Required: 1
SPACER, PROPELLER NUT
Supersedes: 57633-87D30
$20.44
You save $3.61
-20%
In stock
Only 1 remaining
$9.46
You save $2.36
-20%
25
Suzuki Marine
WASHER09160-18028
Required: 1
WASHER (18.5X31X1)
In stock
Only 2 remaining
$3.64
You save $0.91
-20%
26
Suzuki Marine
COTTER PIN,PROP09204-03003
Required: 1
COTTER PIN (D:3.6,L:25)
In stock
5+ in stock
$2.41
You save $0.60
-20%
In stock
Only 1 remaining
$11.88
You save $2.97
-20%
28
Suzuki Marine
PROP HDWR V-6 M57630-92E10
Required: 1
KIT, PROPELLER NUT
Supersedes: 57630-92E00
$29.37
You save $7.34
-20%
29
Suzuki Marine
LU SEALKIT DF V25700-93J00
Required: 1
KIT, GEAR CASE SEALING
In stock
Only 1 remaining
$27.64
You save $6.91
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
