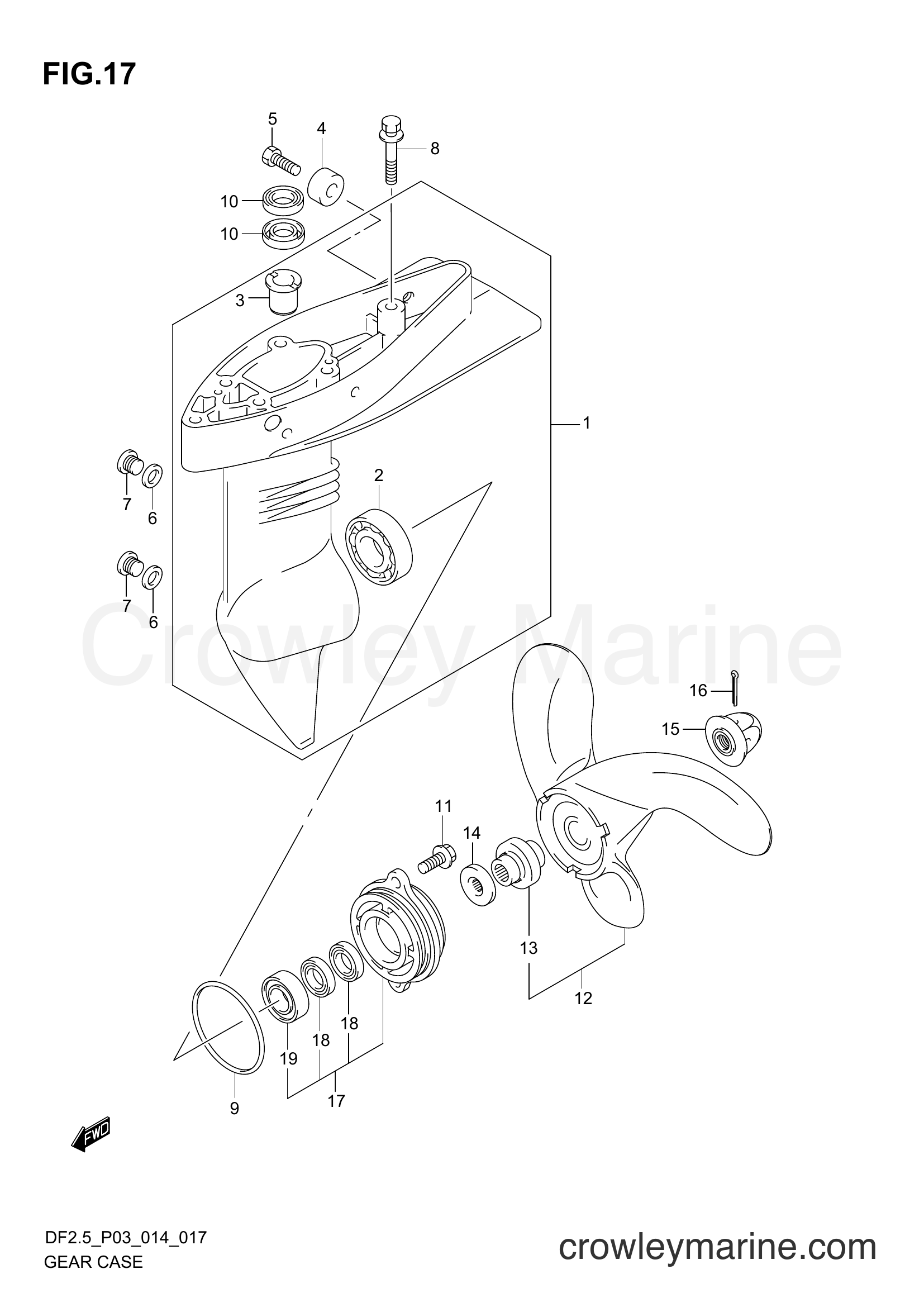

Serial Range Four-Stroke Outboard 2.5 - DF2.5 00252F-410001~ GEAR CASE diagram
-6%
1
Suzuki Marine
CASE,GEAR(BLACK55110-97J50-0EP
Required: 1
CASE, GEAR (BLACK)
$254.19
You save $16.46
-20%
2
Suzuki Marine
B1 17X35X8 BEAR09262-17019
Required: 1
.BEARING (17X35X8)
$19.41
You save $4.85
-15%
3
Suzuki Marine
BUSH,PINION59311-97J20
Required: 2
.BUSH, PINION
No longer availableSearch Nationwide Inventory
$24.27
You save $4.28
-20%
4
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 1
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.29
You save $1.57
-20%
In stock
5+ in stock
$2.96
You save $0.74
-20%
6
Suzuki Marine
GASKET,DRAIN PL59178-97J00
Required: 2
GASKET, DRAIN PLUG
In stock
5+ in stock
$1.86
You save $0.46
-20%
$2.42
You save $0.61
-15%
8
Suzuki Marine
BOLT09116-06099
Required: 2
BOLT (6X35)
$2.29
You save $0.40
-20%
9
Suzuki Marine
O-Ring59291-97J00
Required: 1
O RING, PROP SFT BRG HOUSING
In stock
Only 1 remaining
$7.64
You save $1.91
-20%
10
Suzuki Marine
Oil Seal09282-10008
Required: 2
OIL SEAL (10X21X4.5)
In stock
Only 2 remaining
$3.27
You save $0.82
-20%
$2.38
You save $0.59
-50%
12
Suzuki Marine
PROP 3 X 71/2 X58110-97JA0-019
Required: 1
PROPELLER (9-1/4X10) (BLACK)
In stock
5+ in stock
$64.06
You save $64.06
13
Suzuki Marine
BUSH,PROPELLER58120-97JA0
Required: 1
.BUSH, PROPELLER
$95.55
-15%
14
Suzuki Marine
STOPPER,PROPELL57635-91JL0
Required: 1
STOPPER, PROPELLER BUSH
$42.87
You save $7.56
-20%
15
Suzuki Marine
NUT COMP,PROPEL58130-91JL0
Required: 1
NUT, PROPELLER
$34.70
You save $8.68
-20%
In stock
5+ in stock
$2.41
You save $0.60
-15%
17
Suzuki Marine
HSNG,PROP SHAFT56120-97J50-0EP
Required: 1
HOUSING, PROP SFT BRG (BLACK)
$159.48
You save $28.14
-20%
18
Suzuki Marine
SEAL,OIL,12X24X09282-12L05
Required: 2
.OIL SEAL (12X24X4.5)
In stock
Only 2 remaining
$6.66
You save $1.67
-15%
19
Suzuki Marine
B1 12X28X8 BEAR09262-12001
Required: 1
.BEARING (12X28X8)
$19.97
You save $3.52
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
