All diagrams for this model

Serial Range Four-Stroke Outboard 2.5 - DF2.5 00252F-410001~ CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

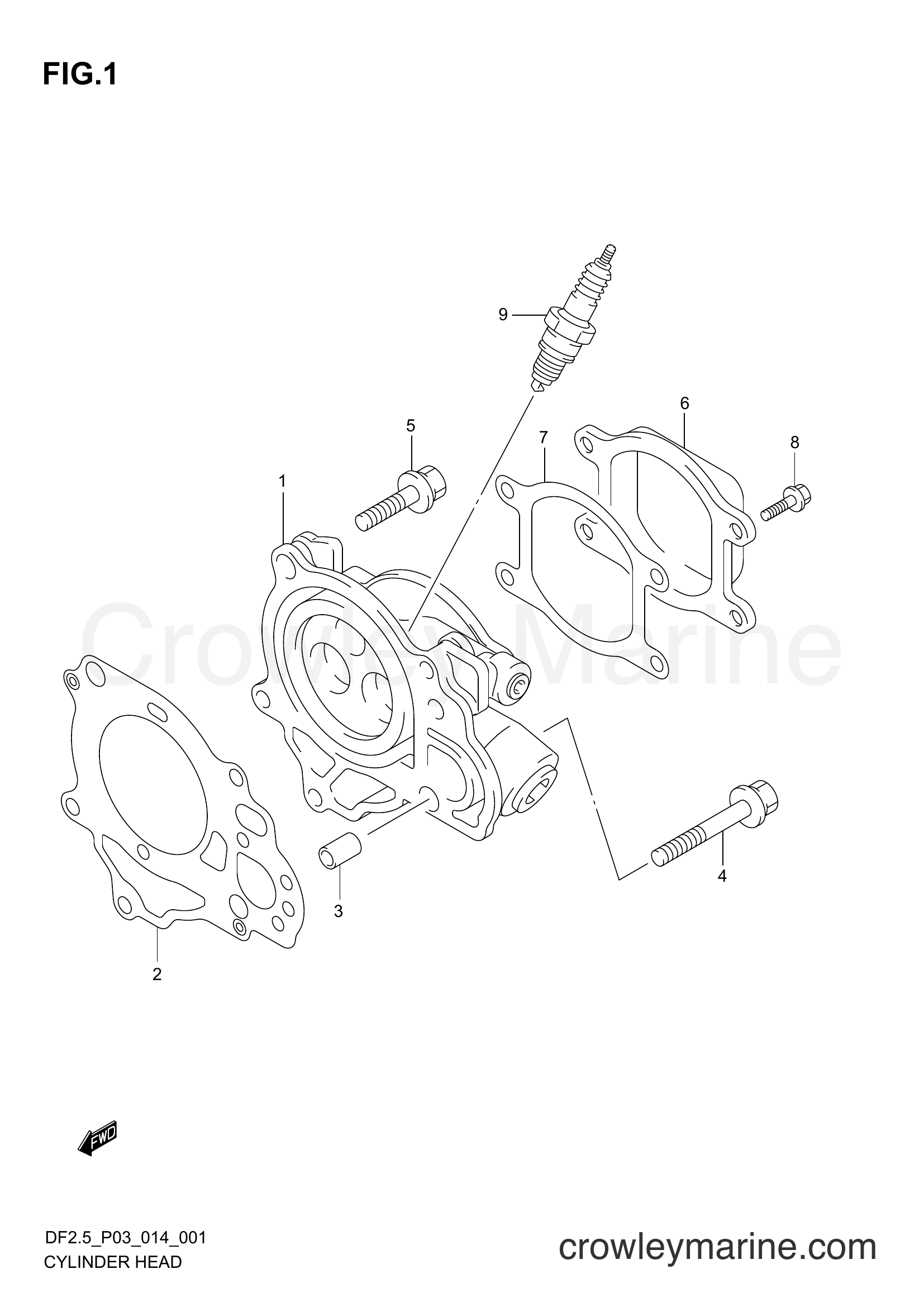

Suzuki Marine DF2.5 00252F-410001~ - CYLINDER HEAD
Change View:
-15%
HEAD COMP,CYLIN
1
Suzuki Marine
HEAD COMP,CYLIN11110-97J30
Required: 1
HEAD, CYLINDER
Supersedes: 11110-97J20
Cross Ship
Leaves in 2-5 days
$255.53
$217.20
You save $38.33
More details
-15%
BOLT,CYLINDER H
4
Suzuki Marine
BOLT,CYLINDER H11118-97JL0
Required: 1
BOLT, CYLINDER HEAD NO.2
Cross Ship
Leaves in 2-5 days
$3.53
$3.00
You save $0.53
More details
-15%
BOLT,CYLINDER H
5
Suzuki Marine
BOLT,CYLINDER H11119-97JL0
Required: 4
BOLT, CYLINDER HEAD
Cross Ship
Leaves in 2-5 days
$3.79
$3.22
You save $0.57
More details
-15%
COVER, CYLINDER
6
Suzuki Marine
COVER, CYLINDER11171-97J10
Required: 1
COVER, CYLINDER HEAD
Cross Ship
Leaves in 2-5 days
$28.78
$24.46
You save $4.32
More details
-20%
Cylinder Head Gasket
7
Suzuki Marine
Cylinder Head Gasket11189-97JL0
Required: 1
GASKET, CYLINDER HEAD COVER
Cross Ship
Leaves in 2-5 days
$6.55
$5.24
You save $1.31
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
