All diagrams for this model

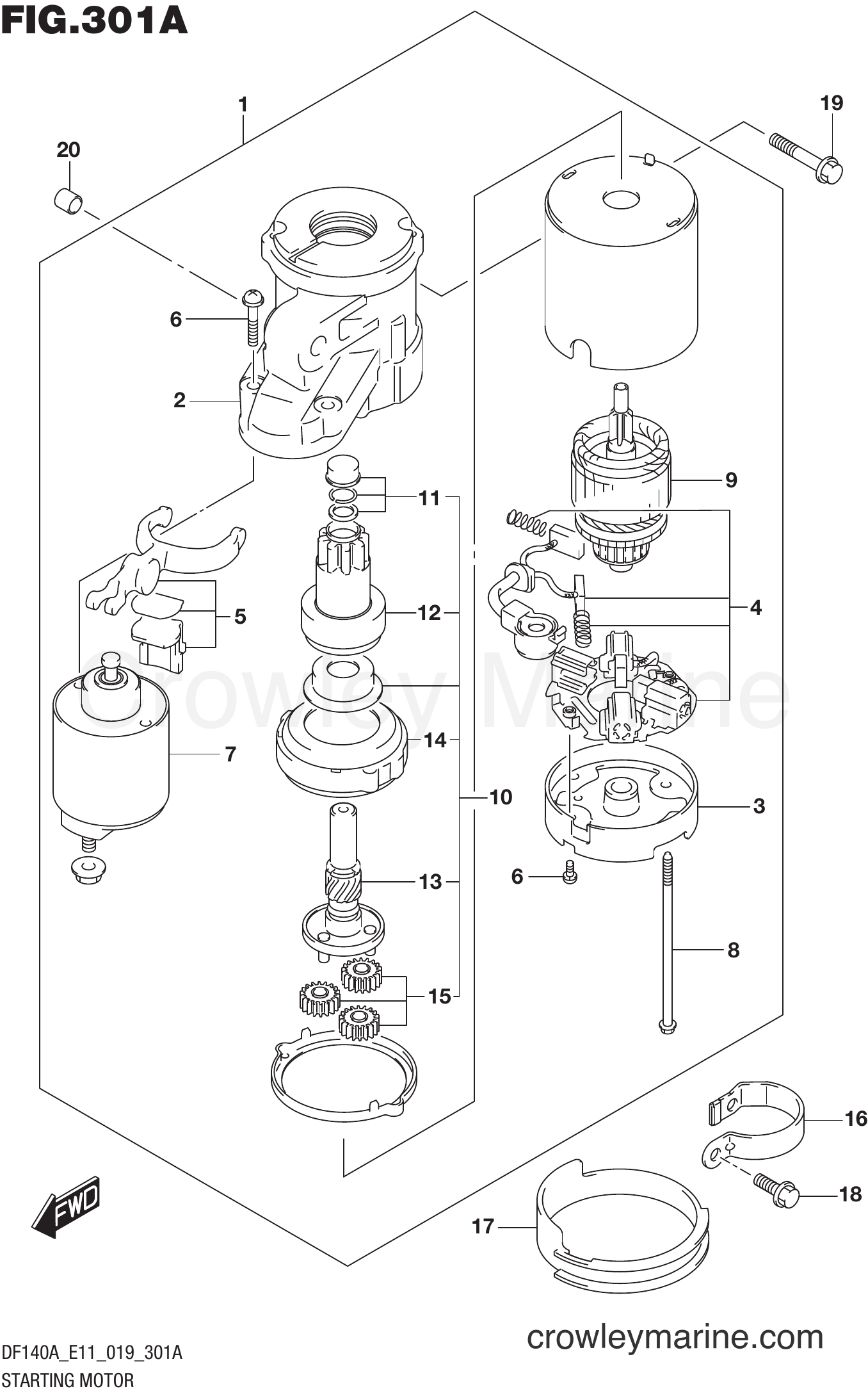

Serial Range Four-Stroke Outboard 140 - DF140AZ 910001~ STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF140AZ 910001~ - STARTING MOTOR
Change View:
-15%
MOTOR ASSY,STAR
1
Suzuki Marine
MOTOR ASSY,STAR31100-92J00
Required: 1
STARTING MOTOR
2 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$1061.33
$902.13
You save $159.20
More details
.HOUSING, FRONT
2
Suzuki Marine
.HOUSING, FRONT31150-92J00
Required: 1
.HOUSING, FRONT
Price unavailable
.HOUSING, REAR
3
Suzuki Marine
.HOUSING, REAR31170-92J00
Required: 1
.HOUSING, REAR
Price unavailable
.HOLDER ASSY, BRUSH
4
Suzuki Marine
.HOLDER ASSY, BRUSH31173-92J00
Required: 1
.HOLDER ASSY, BRUSH
Price unavailable
.LEVER, SHIFT
5
Suzuki Marine
.LEVER, SHIFT31191-92J00
Required: 1
.LEVER, SHIFT
Price unavailable
.SCREW SET
6
Suzuki Marine
.SCREW SET31192-92J00
Required: 1
.SCREW SET
Price unavailable
-15%
SWTICH ASSY
7
Suzuki Marine
SWTICH ASSY31220-92J00
Required: 1
.SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$258.50
$219.95
You save $38.55
More details
.BOLT
8
Suzuki Marine
.BOLT31261-75F10
Required: 2
.BOLT
Price unavailable
.ARMATURE
9
Suzuki Marine
.ARMATURE31311-63J00
Required: 1
.ARMATURE
Price unavailable
.CLUTCH SET, STARTING MOTOR
10
Suzuki Marine
.CLUTCH SET, STARTING MOTOR31340-92J00
Required: 1
.CLUTCH SET, STARTING MOTOR
Price unavailable
..SET, PINION STOPPER
11
Suzuki Marine
..SET, PINION STOPPER31312-92J00
Required: 1
..SET, PINION STOPPER
Price unavailable
..PINION
12
Suzuki Marine
..PINION31320-92J00
Required: 1
..PINION
Price unavailable
..SHAFT, PINION
13
Suzuki Marine
..SHAFT, PINION31341-92J00
Required: 1
..SHAFT, PINION
Price unavailable
..INTERNAL GEAR
14
Suzuki Marine
..INTERNAL GEAR31343-63J00
Required: 1
..INTERNAL GEAR
Price unavailable
..PLANETARY GEAR
15
Suzuki Marine
..PLANETARY GEAR31344-63J00
Required: 3
..PLANETARY GEAR
Price unavailable
-15%
BAND,STARTING M
16
Suzuki Marine
BAND,STARTING M31912-90J00
Required: 1
BAND, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$8.70
$7.40
You save $1.31
More details
-20%
DAMPER,LOWER
17
Suzuki Marine
DAMPER,LOWER31918-92J01
Required: 1
DAMPER, LOWER
Cross Ship
Leaves in 2-5 days
$8.84
$7.07
You save $1.77
More details
-15%
BOLT
19
Suzuki Marine
BOLT01550-10507
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.17
$4.39
You save $0.78
More details
-15%
PIN
20
Suzuki Marine
PIN04211-13149
Required: 2
PIN
Cross Ship
Leaves in 2-5 days
$2.89
$2.46
You save $0.43
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
