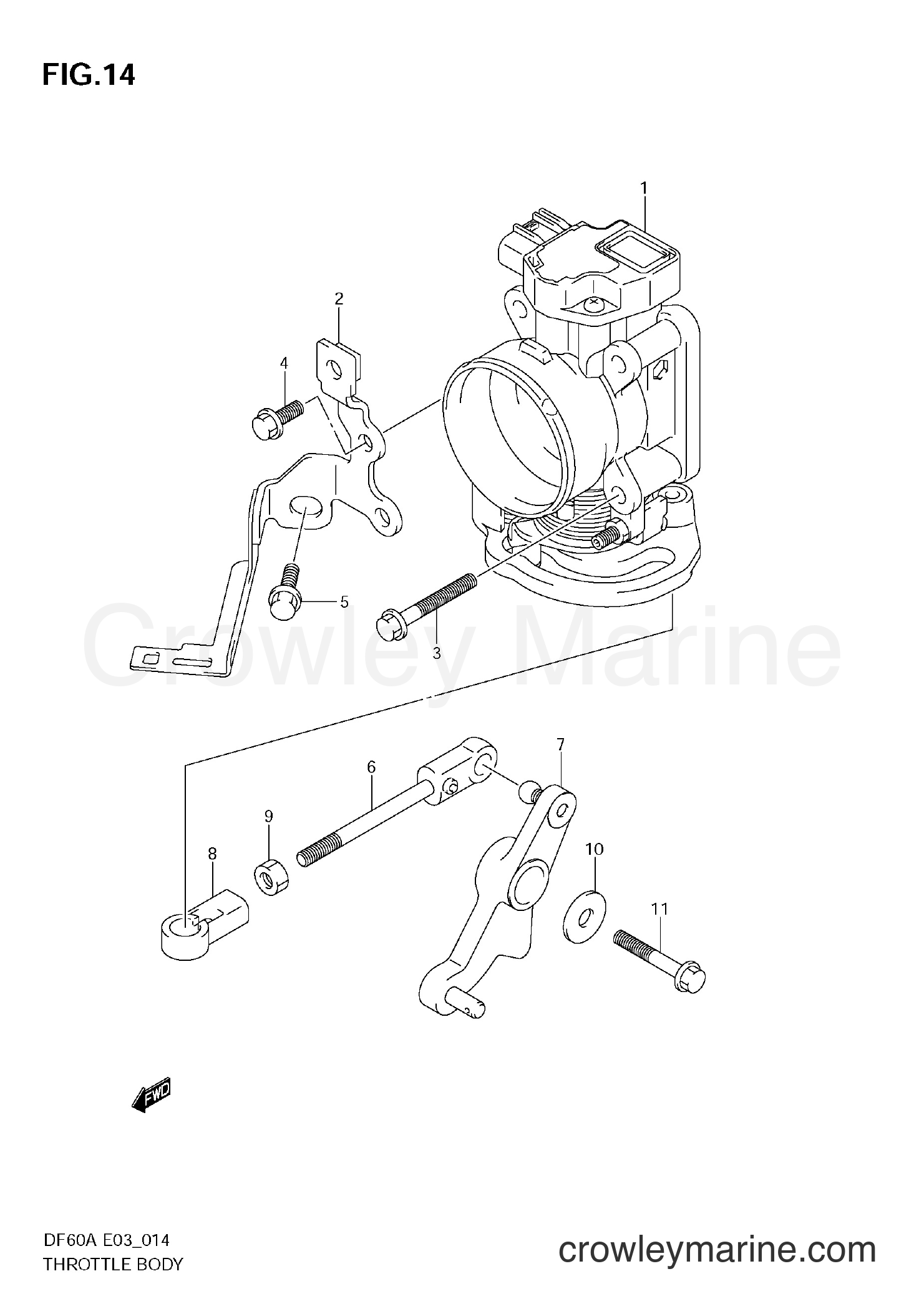

2010 Four-Stroke Outboard 60 - DF60A THROTTLE BODY diagram
-15%
1
Suzuki Marine
BODY ASSY,THROT13300-88L02
Required: 1
BODY ASSY, THROTTLE
Supersedes: 13300-88L00
$564.60
You save $99.63
-15%
2
Suzuki Marine
Obsolete Suzuki Part13315-88L00
Required: 1
BRACKET, THROTTLE BODY
$15.10
You save $2.66
-20%
3
Suzuki Marine
BOLT01550-06457
Required: 4
BOLT, THROTTLE BODY
$2.72
You save $0.68
-20%
4
Suzuki Marine
BOLT01550-06167
Required: 2
BOLT, THROTTLE BODY BRKT
In stock
Only 4 remaining
$2.30
You save $0.58
-20%
5
Suzuki Marine
BOLT01550-08207
Required: 1
BOLT, THROTTLE BODY BRKT
In stock
Only 3 remaining
$2.70
You save $0.68
-15%
6
Suzuki Marine
ROD,THROTTLE13510-88L00
Required: 1
ROD, THROTTLE
$19.34
You save $3.41
-15%
7
Suzuki Marine
Throttle Lever19120-88L01
Required: 1
LEVER, THROTTLE
Supersedes: 19120-88L00
$26.65
You save $4.70
-20%
8
Suzuki Marine
SHIFT SHAFT CONNECTOR19131-95502
Required: 1
CONNECTOR, THROTTLE ROD
In stock
5+ in stock
$4.14
You save $1.03
-20%
9
Suzuki Marine
Nut09140-05005
Required: 1
NUT, THROTTLE ROD
In stock
Only 1 remaining
$2.43
You save $0.61
-20%
10
Suzuki Marine
WASHER09160-06046
Required: 1
WASHER (6.5X20X1.5)
$2.01
You save $0.50
-20%
11
Suzuki Marine
BOLT01550-06407
Required: 1
BOLT, THROTTLE LEVER
$2.70
You save $0.68
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
