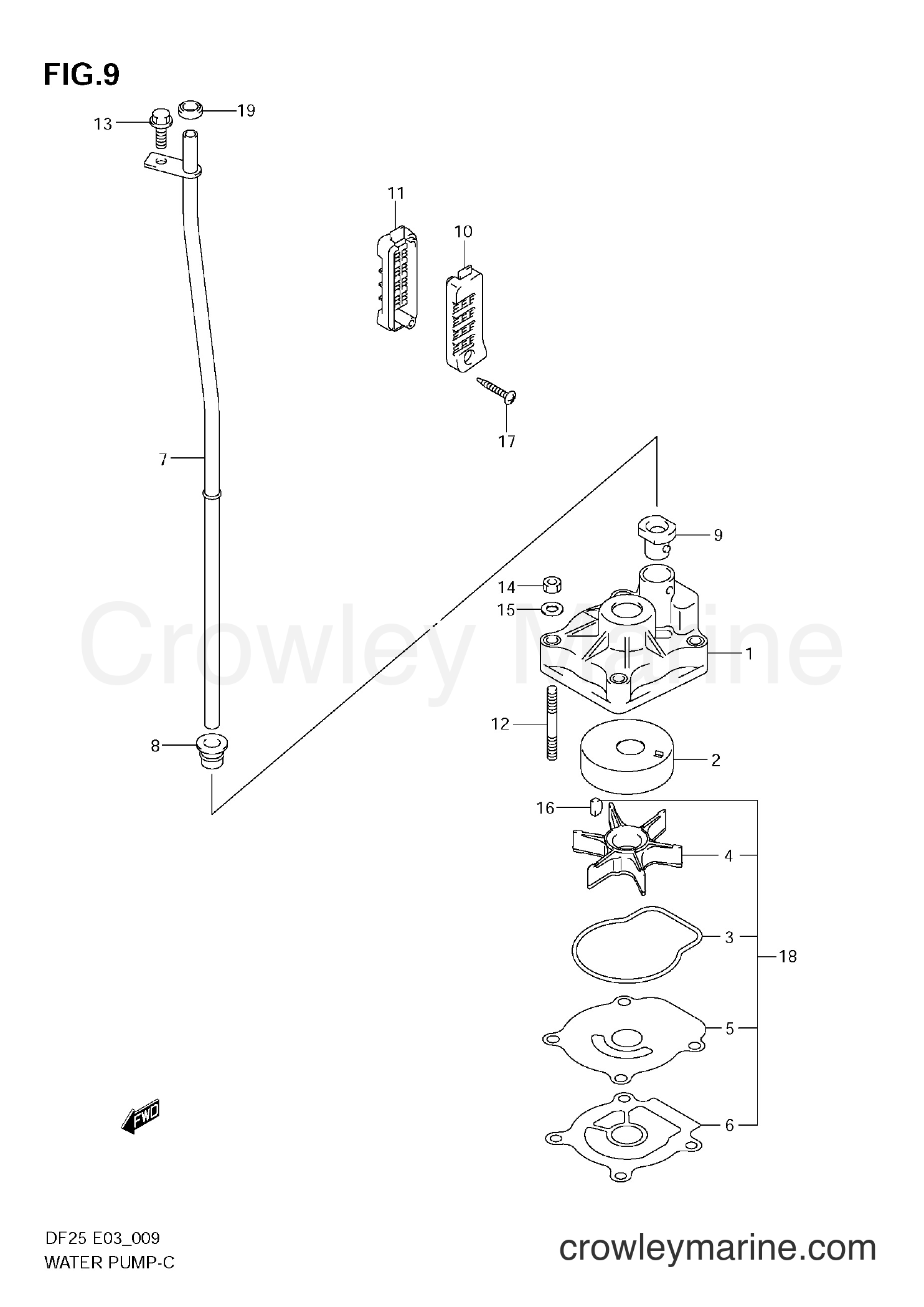

2008 Four-Stroke Outboard 25 - DF25 WATER PUMP diagram
-20%
1
Suzuki Marine
CASE COMP,WATER17410-95J00
Required: 1
CASE, WATER PUMP
In stock
Only 1 remaining
$28.66
You save $7.17
-20%
In stock
Only 1 remaining
$20.89
You save $5.22
-20%
3
Suzuki Marine
SEALING,WATER P17416-95J00
Required: 1
SEALING, CASE
$6.42
You save $1.60
-20%
4
Suzuki Marine
IMPELLER, WATER17461-96312
Required: 1
IMPELLER, WATER PUMP
In stock
Only 2 remaining
$26.49
You save $6.62
-20%
5
Suzuki Marine
PANEL,PUMP CASE17471-95J01
Required: 1
PANEL, PUMP CASE UNDER
$7.94
You save $1.98
-20%
6
Suzuki Marine
GASKET,PUMP CAS17472-96304
Required: 1
GASKET, PUMP CASE PANEL
Supersedes: 17472-96303
In stock
Only 5 remaining
$2.09
You save $0.52
-15%
7
Suzuki Marine
Obsolete Suzuki Part17560-95J00
Required: 1
TUBE, WATER (S)
No longer availableSearch Nationwide Inventory
$16.63
You save $2.94
-15%
7
Suzuki Marine
Obsolete Suzuki Part17560-95J10
Required: 1
TUBE, WATER (L)
No longer availableSearch Nationwide Inventory
$20.60
You save $3.64
-20%
8
Suzuki Marine
GROMMET, WATER TUBE (UPPER)17565-91L00
Required: 2
GROMMET, WATER TUBE
Supersedes: 17565-96300
In stock
Only 2 remaining
$3.16
You save $0.79
-20%
9
Suzuki Marine
GROMMET,WATER T17566-96303
Required: 1
GROMMET, WATER TUBE LOWER
Supersedes: 17566-96302
In stock
Only 2 remaining
$2.06
You save $0.52
-15%
10
Suzuki Marine
FILTER,WATER PO17631-95J00
Required: 1
FILTER, WATER PORT SIDE
$6.48
You save $1.14
-15%
11
Suzuki Marine
FILTER,WATER ST17632-95J00
Required: 1
FILTER, WATER STBD SIDE
$6.48
You save $1.14
-20%
12
Suzuki Marine
Stud Bolt09108-06146
Required: 4
BOLT, CASE STUD
In stock
Only 2 remaining
$3.90
You save $0.97
-20%
13
Suzuki Marine
BOLT,6X1509116-06094
Required: 1
BOLT, WATER TUBE (6X15)
In stock
Only 2 remaining
$2.09
You save $0.52
-20%
14
Suzuki Marine
Nut29141-93J00
Required: 4
NUT, PUMP CASE (M6)
In stock
Only 4 remaining
$1.64
You save $0.41
-20%
15
Suzuki Marine
WASHER09160-06082
Required: 4
WASHER, PUMP CASE LOCK (6.5X13X1)
In stock
Only 1 remaining
$1.42
You save $0.36
-20%
16
Suzuki Marine
Impeller Key09420-04006
Required: 1
KEY, IMPELLER
In stock
Only 1 remaining
$3.59
You save $0.90
-15%
17
Suzuki Marine
Screw (M8 X 40)03142-04259
Required: 1
SCREW, FILTER TAPPING
$2.35
You save $0.42
-20%
18
Suzuki Marine
W/P KIT DF25 V-17400-95J03
Required: 1
WATER PUMP REPAIR KIT
Supersedes: 17400-95J02
In stock
Only 2 remaining
$23.91
You save $5.98
-20%
19
Suzuki Marine
Cushion09320-08062
Required: 1
CUSHION, WATER TUBE UPPER
$13.46
You save $3.37
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
