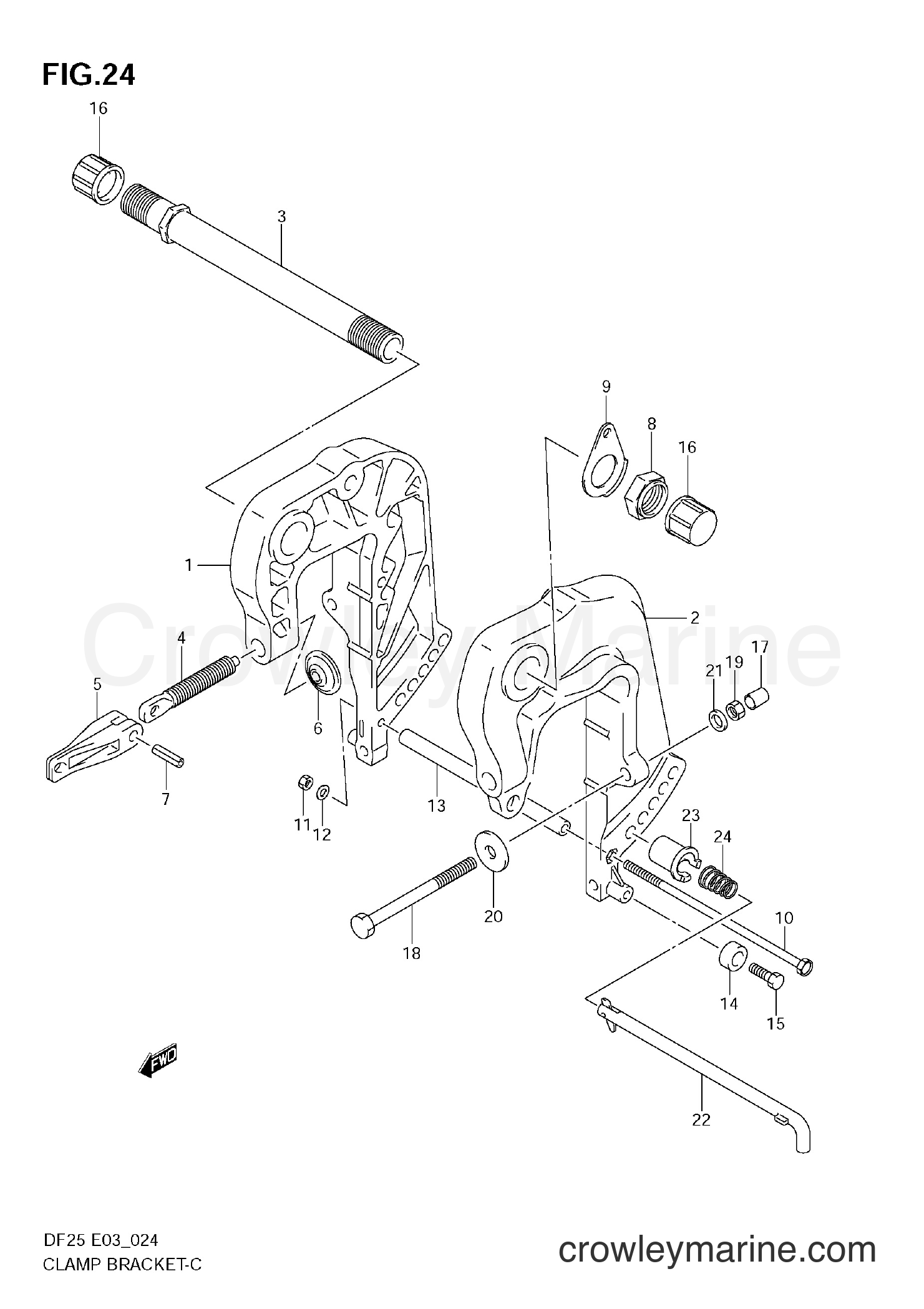

2009 Four-Stroke Outboard 25 - DF25 CLAMP BRACKET diagram
-15%
1
Suzuki Marine
BRACKET,CLAMP S41111-95J01-0EP
Required: 1
BRACKET, CLAMP STBD (BLACK)
No longer availableSearch Nationwide Inventory
$256.67
You save $45.29
-15%
2
Suzuki Marine
BRACKET,CLAMP P41121-95J00-0EP
Required: 1
BRACKET, CLAMP PORT (BLACK)
$284.20
You save $50.15
3
Suzuki Marine
SHAFT, CLAMP BRKT41130-95J01
Required: 1
SHAFT, CLAMP BRKT
Price unavailable
-15%
4
Suzuki Marine
SCREW,CLAMP41211-95J00
Required: 2
SCREW, CLAMP
$23.06
You save $4.07
-50%
5
Suzuki Marine
HANDLE,CLAMP41212-91J00
Required: 2
HANDLE, CLAMP
Supersedes: 41212-98602
In stock
Only 2 remaining
$8.72
You save $8.72
-20%
6
Suzuki Marine
PLATE,CLAMP41213-94J01
Required: 2
PLATE, CLAMP
Supersedes: 41213-98100
In stock
Only 2 remaining
$3.38
You save $0.85
-15%
7
Suzuki Marine
PIN09205-06007
Required: 2
PIN, CLAMP HANDLE
$2.44
You save $0.43
-20%
8
Suzuki Marine
Nut09159-22006
Required: 1
NUT, CLAMP BRACKET SHAFT
$25.86
You save $6.47
-15%
9
Suzuki Marine
WASHER,CLAMP BR41135-93J00
Required: 1
WASHER, CLAMP BRACKET SHAFT
$6.48
You save $1.14
-15%
10
Suzuki Marine
Obsolete Suzuki Part09100-06165
Required: 1
BOLT, CLAMP BRACKET LOWER
No longer availableSearch Nationwide Inventory
$6.03
You save $1.07
-20%
11
Suzuki Marine
Nut29141-93J00
Required: 1
NUT, CLAMP BRACKET LOWER
In stock
Only 4 remaining
$1.64
You save $0.41
-20%
12
Suzuki Marine
WASHER09160-06082
Required: 1
WASHER, CLAMP BRACKET LOWER
In stock
Only 1 remaining
$1.42
You save $0.36
-15%
13
Suzuki Marine
Obsolete Suzuki Part09180-06342
Required: 1
SPACER, CLAMP BRACKET LOWER
No longer availableSearch Nationwide Inventory
$11.83
You save $2.09
-20%
14
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 2
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.29
You save $1.57
-20%
In stock
5+ in stock
$2.96
You save $0.74
-20%
16
Suzuki Marine
CAP BRACKET SHA41151-94500
Required: 2
CAP, CLAMP BRACKET SHAFT
$2.61
You save $0.65
-15%
17
Suzuki Marine
Obsolete Suzuki Part41153-95J00
Required: 2
CAP, TRANSOM BOLT
No longer availableSearch Nationwide Inventory
$4.31
You save $0.76
-15%
18
Suzuki Marine
Obsolete Suzuki Part09100-10309
Required: 2
BOLT, TRANSOM (10X110)
No longer availableSearch Nationwide Inventory
$9.61
You save $1.70
-20%
19
Suzuki Marine
Nut09159-10050
Required: 2
NUT, TRANSOM BOLT
$2.37
You save $0.59
-15%
20
Suzuki Marine
Obsolete Suzuki Part09160-10139
Required: 2
WASHER, TRANSOM (10.5X35X3)
$3.63
You save $0.64
-15%
21
Suzuki Marine
WASHER,UPR MT B09160-10140
Required: 2
WASHER, TRANSOM (10.5X18X3)
No longer availableSearch Nationwide Inventory
$2.44
You save $0.43
-15%
22
Suzuki Marine
PIN COMP,TILT L45420-95J01
Required: 1
PIN, TILT LOCK
No longer availableSearch Nationwide Inventory
$46.51
You save $8.21
-15%
23
Suzuki Marine
Obsolete Suzuki Part45425-95J00
Required: 1
STOPPER, TILT LOCK PIN
No longer availableSearch Nationwide Inventory
$3.87
You save $0.68
-15%
24
Suzuki Marine
SPRING,TILT LOC09441-17004
Required: 1
SPRING, TILT LOCK PIN
No longer availableSearch Nationwide Inventory
$2.36
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
