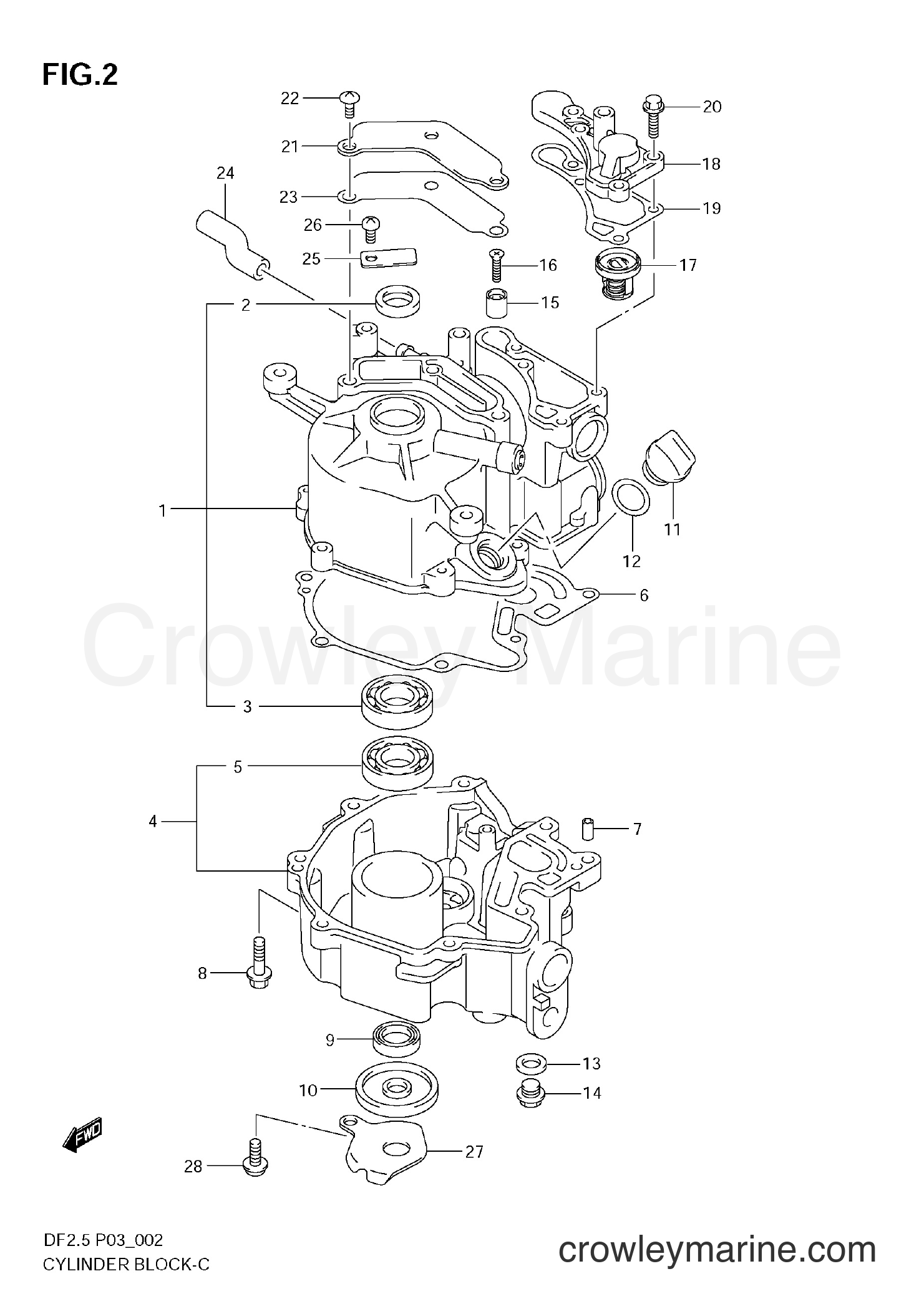

2006 Four-Stroke Outboard 2.5 - DF2.5 CYLINDER BLOCK diagram
-15%
1
Suzuki Marine
BLOCK ASSY,CYLI11200-97J11
Required: 1
BLOCK ASSY, CYLINDER
Supersedes: 11200-97J00
$269.31
You save $47.53
-15%
2
Suzuki Marine
Crankshaft Seal59295-97J00
Required: 1
.SEAL, CRANKSHAFT OIL
$25.17
You save $4.44
-50%
3
Suzuki Marine
B1 17X40X12 BEA09262-17023
Required: 1
.BEARING, CRANKSHAFT UPPER
In stock
Only 2 remaining
$10.51
You save $10.51
-15%
4
Suzuki Marine
CASE ASSY,CRANK11300-97J21
Required: 1
CASE ASSY, CRANKSHAFT
Supersedes: 11300-97J00
$225.00
You save $39.71
-50%
5
Suzuki Marine
B1 17X40X12 BEA09262-17023
Required: 1
.BEARING, CRANKSHAFT LOWER
In stock
Only 2 remaining
$10.51
You save $10.51
-20%
6
Suzuki Marine
GASKET,CRANKCAS11351-97JL0
Required: 1
GASKET, CRANKCASE
Supersedes: 11351-97J01
$28.93
You save $7.23
-20%
6
Suzuki Marine
GASKET,CRANKCAS11351-97JL0
Required: 1
GASKET, CRANKCASE
$28.93
You save $7.23
-15%
7
Suzuki Marine
PIN04221-05109
Required: 2
PIN, DOWEL
$1.60
You save $0.28
-20%
8
Suzuki Marine
BOLT01550-06257
Required: 8
BOLT, CRANKCASE
In stock
Only 5 remaining
$2.30
You save $0.58
-20%
9
Suzuki Marine
SEAL,DRIVE SHAF59295-97J10
Required: 1
SEAL, DRIVE SHAFT OIL
$17.22
You save $4.31
-20%
10
Suzuki Marine
Crankshaft Seal59295-97J20
Required: 1
SEAL, CRANKSHAFT OIL LOWER
In stock
Only 2 remaining
$35.32
You save $8.83
-15%
11
Suzuki Marine
Oil Filler Cap11382-97J00
Required: 1
CAP, OIL FILLER
$5.53
You save $0.98
-20%
12
Suzuki Marine
O-RING D:2.4 ID09280-15007
Required: 1
O RING, CAP (D:2.4 ID:15.8)
In stock
Only 1 remaining
$1.70
You save $0.43
-20%
13
Suzuki Marine
GASKET, DRAIN P09168-10022
Required: 1
GASKET, DRAIN PLUG
In stock
5+ in stock
$1.46
You save $0.37
-20%
14
Suzuki Marine
PLUG,DRAIN,10X709248-10008
Required: 1
PLUG, DRAIN (10X7.5)
PartX Recommends:Recmar REC09248-10008
In stock
5+ in stock
$6.51
You save $1.63
-15%
15
Suzuki Marine
ANODE,PROTECTIO55321-95J00
Required: 1
ANODE, PROTECTION
In stock
Only 1 remaining
$9.78
You save $1.73
-15%
16
Suzuki Marine
SCREW,PROTECTIO09126-05011
Required: 1
SCREW, PROTECTION ANODE
In stock
Only 1 remaining
$2.27
You save $0.40
-20%
17
Suzuki Marine
THERMOSTAT COMP17670-91J02
Required: 1
THERMOSTAT
Supersedes: 17670-91J00
PartX Recommends:Suzuki Marine 17670-91J02
In stock
Only 2 remaining
$35.03
You save $8.76
-15%
18
Suzuki Marine
Obsolete Suzuki Part17681-97J00
Required: 1
COVER, THERMOSTAT
No longer availableSearch Nationwide Inventory
$15.66
You save $2.76
18
Suzuki Marine
COVER, THERMOSTAT17681-97J20
Required: 1
COVER, THERMOSTAT
Price unavailable
-20%
19
Suzuki Marine
GASKET,THERMOST17685-97J01
Required: 1
GASKET, THERMOSTAT COVER
Supersedes: 17685-97J00
In stock
Only 2 remaining
$2.41
You save $0.60
-20%
20
Suzuki Marine
BOLT01550-06207
Required: 4
BOLT, THERMOSTAT COVER
In stock
5+ in stock
$2.30
You save $0.58
-15%
21
Suzuki Marine
Obsolete Suzuki Part11173-97J00
Required: 1
PLATE, BREATHER
No longer availableSearch Nationwide Inventory
$6.26
You save $1.10
-15%
22
Suzuki Marine
SCREW 6X1202142-06127
Required: 3
BOLT, BREATHER PLATE
$1.48
You save $0.26
-20%
23
Suzuki Marine
GASKET,BREATHER11179-97J00
Required: 1
GASKET, BREATHER PLATE
$3.75
You save $0.94
-15%
No longer availableSearch Nationwide Inventory
$3.54
You save $0.62
-15%
$2.92
You save $0.51
-15%
26
Suzuki Marine
Screw (M8 X 40)02112-0612A
Required: 1
SCREW, REED VALVE
$1.51
You save $0.27
-15%
27
Suzuki Marine
PLATE,UNDER OIL11431-97J11
Required: 1
PLATE, UNDER OIL SEAL
$7.18
You save $1.27
-15%
28
Suzuki Marine
Obsolete Suzuki Part11432-97J00
Required: 1
BOLT, UNDER OIL SEAL PLATE
No longer availableSearch Nationwide Inventory
$2.15
You save $0.38
-15%
28
Suzuki Marine
BOLT,UNDER OIL11432-97JL0
Required: 1
BOLT, UNDER OIL SEAL PLATE
$2.69
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
