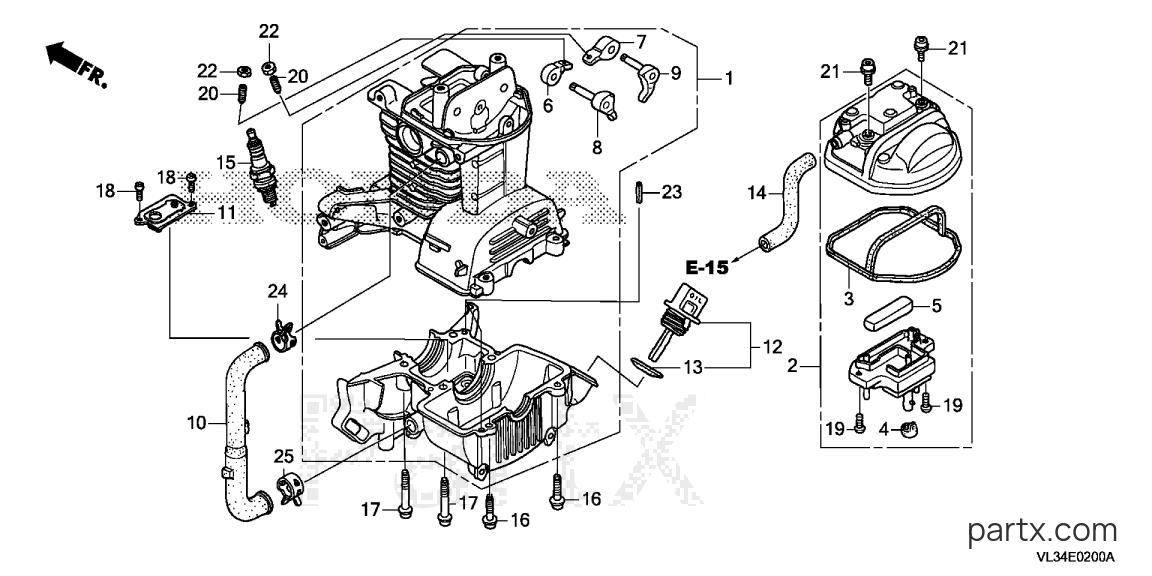

All Years Trimmers HHT - HHT35S LTAT CRANKCASE SET diagram
-15%
001
Honda
CRANKCASE SET10100-Z3F-405
Required: 1
CRANKCASE SET
$179.35
You save $31.65
-15%
002
Honda
COVER, CYLINDER HEAD12310-Z0Z-000
Required: 1
COVER, CYLINDER HEAD
$15.98
You save $2.82
-15%
003
Honda
SEAL, HEAD COVER12312-Z0Z-300
Required: 1
SEAL, HEAD COVER
$4.51
You save $0.79
-15%
004
Honda
GROMMET, HEAD COVER12314-Z0H-300
Required: 1
GROMMET, HEAD COVER
$1.00
You save $0.18
-15%
005
Honda
FILTER, BREATHER12367-Z0H-000
Required: 1
FILTER, BREATHER
$2.75
You save $0.49
-20%
006
Honda
ARM, IN VLV ROCKER14431-Z0H-003
Required: 1
ARM, IN. VALVE ROCKER
$7.50
You save $1.88
-15%
007
Honda
ARM, EX. VLV ROCKER14441-Z0H-003
Required: 1
ARM, EX. VALVE ROCKER
$13.07
You save $2.31
-15%
008
Honda
LIFTER, IN. VALVE14730-Z0Z-000
Required: 1
LIFTER, IN. VALVE
$13.40
You save $2.36
-15%
009
Honda
LIFTER, EX. VALVE14740-Z0Z-000
Required: 1
LIFTER, EX. VALVE
$18.24
You save $3.22
-15%
$9.33
You save $1.65
-15%
011
Honda
PLATE ASSY.15510-Z3E-000
Required: 1
PLATE ASSY., OIL OUTLET VALVE
$7.67
You save $1.35
-15%
012
Honda
CAP, OIL FILLER15600-Z3F-000
Required: 1
CAP ASSY., OIL FILLER
$5.78
You save $1.02
-15%
013
Honda
GSKT, OIL FILLER CAP15625-Z0T-800
Required: 1
GASKET, OIL FILLER CAP
$4.18
You save $0.74
-15%
014
Honda
TUBE, BREATHER15721-Z0Z-000
Required: 1
TUBE, BREATHER
$6.38
You save $1.13
-15%
015
Honda
SPARK PLUG (CMR4H)31914-Z0H-003
Required: 1
SPARK PLUG (CMR4H) (NGK)
$7.41
You save $1.31
-15%
015
Honda
SPARK PLUG (CMR5H)31915-Z0H-003
Required: 1
SPARK PLUG (CMR5H) (NGK)
$4.22
You save $0.74
-15%
015
Honda
SPARK PLUG (CMR6H)31916-Z0H-003
Required: 1
SPARK PLUG (CMR6H) (NGK)
$7.62
You save $1.34
-15%
016
Honda
BOLT, SOCKET (5X20)90009-Z0H-003
Required: 2
BOLT, SOCKET (5X20)
$0.70
You save $0.12
-15%
016
Honda
BOLT, SOCKET (5X20)90009-Z3E-901
Required: 2
BOLT, SOCKET (5X20)
$3.11
You save $0.55
-15%
017
Honda
BOLT, SOCKET (5X32)90010-Z0Z-003
Required: 4
BOLT, SOCKET (5X32)
$1.07
You save $0.19
-15%
018
Honda
SCREW, PAN (4X8)90013-Z3E-003
Required: 2
SCREW, PAN (4X8)
$0.88
You save $0.16
-15%
019
Honda
SCREW, PAN (4X8)90013-Z3F-003
Required: 2
SCREW, PAN (4X8)
$0.53
You save $0.09
-15%
020
Honda
SCREW, TAPPET ADJ90017-Z0H-000
Required: 2
SCREW, TAPPET ADJUSTING
$2.26
You save $0.40
-15%
021
Honda
BOLT, SOCKET (5X12)90019-Z0H-003
Required: 2
BOLT, SOCKET (5X12)
$0.68
You save $0.12
-15%
022
Honda
NUT, TAPPET ADJ90206-ZM3-000
Required: 2
NUT, TAPPET ADJUSTING
$1.17
You save $0.21
-15%
023
Honda
PIN, SPRING (4X10)94305-40102
Required: 2
PIN, SPRING (4X10)
$2.21
You save $0.39
-15%
024
Honda
CLAMP, TUBE (D12)95002-41200-08
Required: 1
CLAMP, TUBE (D12)
$2.62
You save $0.46
-15%
025
Honda
CLAMP, TUBE (D13)95002-41300-04
Required: 1
CLAMP, TUBE (D13)
$3.64
You save $0.64
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
