All Years Trimmers HHT - HHT31S UNBA FRAME PIPE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

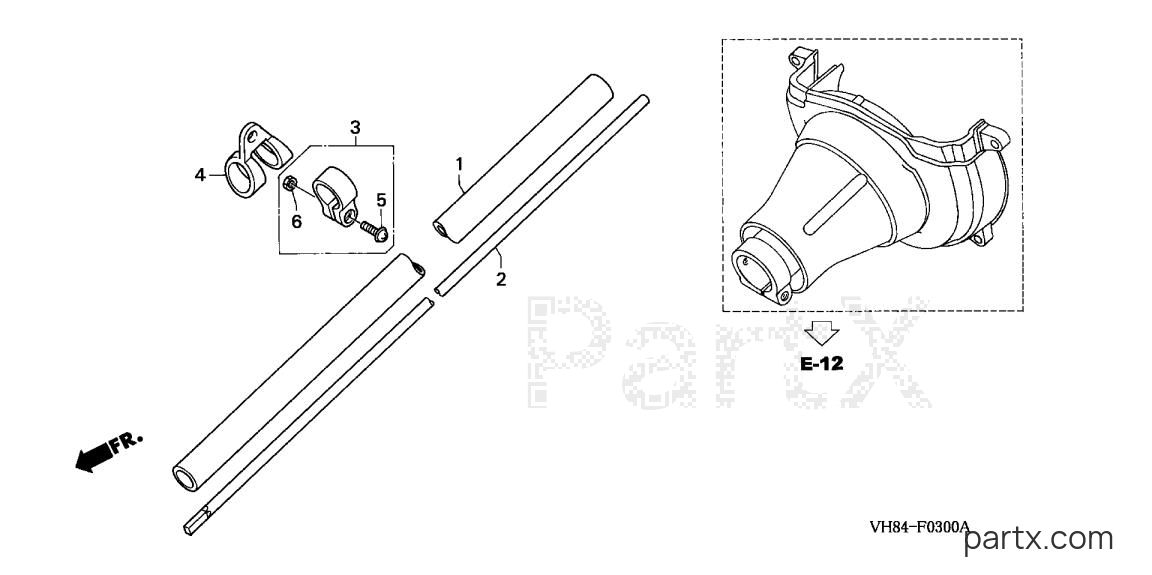

Honda HHT31S UNBA - FRAME PIPE
Change View:
PIPE ASSY., FRAME
001
Honda
PIPE ASSY., FRAME40230-VH8-640
Required: 1
PIPE ASSY., FRAME
Price unavailable
-15%
SHAFT, DRIVE
002
Honda
SHAFT, DRIVE41411-VH8-640
Required: 1
SHAFT, DRIVE
Cross Ship
Leaves in 2-5 days
$17.76
$15.10
You save $2.66
More details
-15%
HOLDER A, HANGER
003
Honda
HOLDER A, HANGER50374-VH8-641
Required: 1
HOLDER A, HANGER
Cross Ship
Leaves in 2-5 days
$10.92
$9.28
You save $1.64
More details
-15%
HOLDER B, HANGER
004
Honda
HOLDER B, HANGER50376-VF9-701
Required: 1
HOLDER B, HANGER
Cross Ship
Leaves in 2-5 days
$11.34
$9.64
You save $1.70
More details
-15%
SCREW-WASHER (5X25)
005
Honda
SCREW-WASHER (5X25)93892-05025-00
Required: 1
SCREW-WASHER (5X25)
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details
-15%
NUT, HEX. (5MM)
006
Honda
NUT, HEX. (5MM)94001-05000-0S
Required: 1
NUT, HEX. (5MM)
Cross Ship
Leaves in 2-5 days
$3.34
$2.84
You save $0.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
