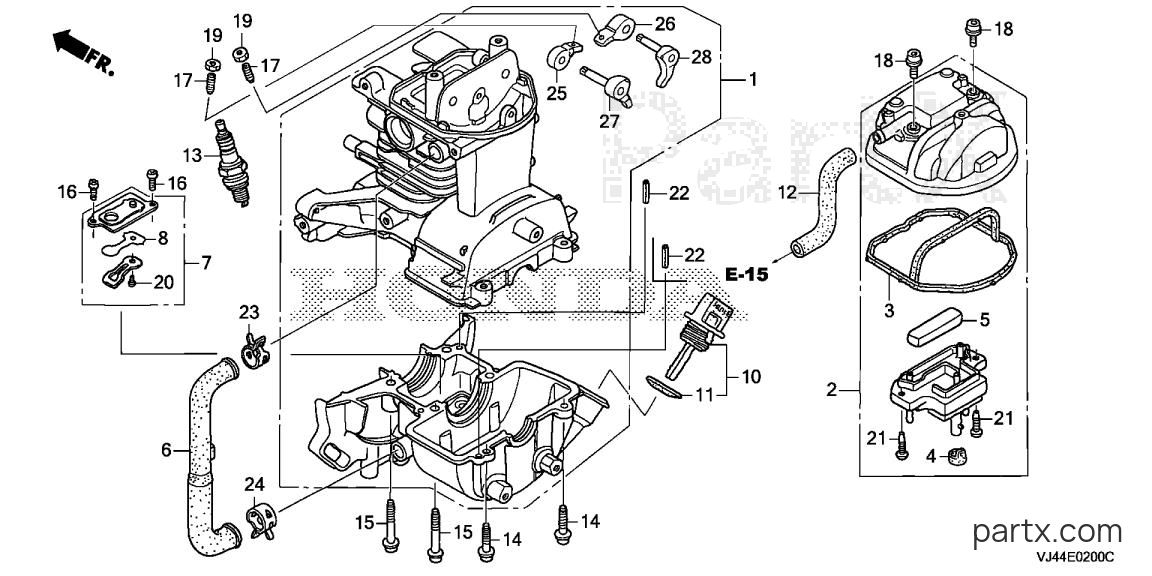

All Years Trimmers HHT - HHT25S LTA CRANKCASE SET diagram
-15%
001
Honda
CASE SET ASSY,CRA10100-Z3E-406
Required: 1
CASE SET ASSY,CRA
$161.33
You save $28.47
002
Honda
COVER, CYLINDER HEAD12310-Z0H-000
Required: 1
COVER, CYLINDER HEAD
Price unavailable
-15%
002
Honda
COVER, CYLINDER HEAD12310-Z0H-010
Required: 1
COVER, CYLINDER HEAD
$40.32
You save $7.12
-15%
003
Honda
SEAL, HEAD COVER12312-Z0H-300
Required: 1
SEAL, HEAD COVER
$9.11
You save $1.61
-15%
004
Honda
GROMMET, HEAD COVER12314-Z0H-300
Required: 1
GROMMET, HEAD COVER
$1.00
You save $0.18
-15%
005
Honda
FILTER, BREATHER12367-Z0H-000
Required: 1
FILTER, BREATHER
$2.75
You save $0.49
-15%
$9.10
You save $1.61
-15%
007
Honda
PLATE ASSY.15510-Z0H-000
Required: 1
PLATE ASSY., OIL OUTLET VALVE
$6.24
You save $1.10
-15%
008
Honda
VALVE, OIL OUTLET15571-ZM3-003
Required: 1
VALVE, OIL OUTLET
$3.42
You save $0.60
-15%
010
Honda
CAP, OIL FILLER15600-ZF0-003
Required: 1
CAP ASSY., OIL FILLER
$7.82
You save $1.38
-15%
011
Honda
GSKT, OIL FILLER CAP15625-ZE1-003
Required: 1
GASKET, OIL FILLER CAP
In stock
Only 1 remaining
$2.74
You save $0.48
-15%
012
Honda
TUBE, BREATHER15721-Z0H-000
Required: 1
TUBE, BREATHER
$5.17
You save $0.91
-15%
013
Honda
SPARK PLUG (CMR4H)31914-Z0H-003
Required: 1
SPARK PLUG (CMR4H) (NGK)
$7.41
You save $1.31
-15%
013
Honda
SPARK PLUG (CMR5H)31915-Z0H-003
Required: 1
SPARK PLUG (CMR5H) (NGK)
$4.22
You save $0.74
-15%
013
Honda
SPARK PLUG (CMR6H)31916-Z0H-003
Required: 1
SPARK PLUG (CMR6H) (NGK)
$7.62
You save $1.34
-15%
014
Honda
BOLT, SOCKET (5X20)90009-Z0H-003
Required: 2
BOLT, SOCKET (5X20)
$0.70
You save $0.12
-15%
015
Honda
BOLT, SOCKET (5X30)90010-Z0H-003
Required: 4
BOLT, SOCKET (5X30)
$0.88
You save $0.16
-15%
016
Honda
SCREW, PAN (4X8)90013-Z0H-004
Required: 2
SCREW, PAN (4X8)
$0.54
You save $0.10
-15%
017
Honda
SCREW, TAPPET ADJ90017-Z0H-000
Required: 2
SCREW, TAPPET ADJUSTING
$2.26
You save $0.40
-15%
018
Honda
BOLT, SOCKET (5X12)90019-Z0H-003
Required: 2
BOLT, SOCKET (5X12)
$0.68
You save $0.12
-15%
019
Honda
NUT, TAPPET ADJ90206-ZM3-000
Required: 2
NUT, TAPPET ADJUSTING
$1.17
You save $0.21
-15%
020
Honda
SCREW, PAN (3X5)93500-03005-0A
Required: 1
SCREW, PAN (3X5)
$0.85
You save $0.15
-15%
021
Honda
SCREW, TAP (4X12)93901-34320
Required: 2
SCREW, TAPPING (4X12)
$0.95
You save $0.17
-15%
022
Honda
PIN, SPRING (4X10)94305-40102
Required: 1
PIN, SPRING (4X10)
$2.21
You save $0.39
-15%
023
Honda
CLAMP, TUBE (D12)95002-41200-08
Required: 1
CLAMP, TUBE (D12)
$2.62
You save $0.46
-15%
024
Honda
CLAMP, TUBE (D13)95002-41300-04
Required: 1
CLAMP, TUBE (D13)
$3.64
You save $0.64
-20%
025
Honda
ARM, IN VLV ROCKER14431-Z0H-003
Required: 1
ARM, IN. VALVE ROCKER
$7.50
You save $1.88
-15%
026
Honda
ARM, EX. VLV ROCKER14441-Z0H-003
Required: 1
ARM, EX. VALVE ROCKER
$13.07
You save $2.31
-15%
027
Honda
LIFTER, IN. VALVE14730-Z0H-000
Required: 1
LIFTER, IN. VALVE
$12.48
You save $2.20
-15%
028
Honda
LIFTER, EX. VALVE14740-Z0H-000
Required: 1
LIFTER, EX. VALVE
$17.46
You save $3.08
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
