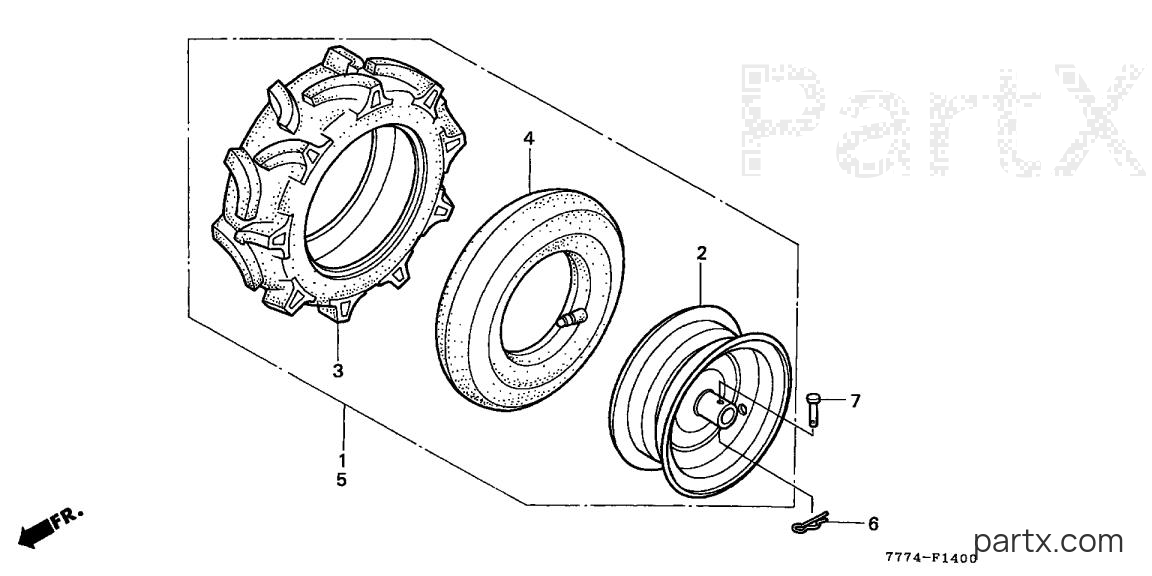

All Years Tillers FR - FR650 AC WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

WHEEL ASSY., R. (3.50-7) (NOT AVAILABLE)

001

Honda

WHEEL ASSY., R. (3.50-7) (NOT AVAILABLE)42700-777-003

Required: 1

WHEEL ASSY., R. (3.50-7) (NOT AVAILABLE)

Price unavailable

002

Honda

WHEEL (NOT AVAILABLE)42710-777-003

Required: 2

WHEEL (NOT AVAILABLE)

Price unavailable

-15%

003

Honda

TIRE (3.50-7)42751-777-003

Required: 2

TIRE (3.50-7)

~~$162.94~~

$138.50

You save $24.44

More details

004

Honda

TUBE, TIRE (NOT AVAILABLE)42752-777-003

Required: 2

TUBE, TIRE (NOT AVAILABLE)

Price unavailable

WHEEL ASSY., L. (3.50-7) (NOT AVAILABLE)

005

Honda

WHEEL ASSY., L. (3.50-7) (NOT AVAILABLE)42800-777-003

Required: 1

WHEEL ASSY., L. (3.50-7) (NOT AVAILABLE)

Price unavailable

-15%

006

Honda

PIN, LOCK (8MM)90651-777-000

Required: 2

PIN, LOCK (8MM)

~~$2.26~~

$1.92

You save $0.34

More details

-15%

007

Honda

PIN (8X32)90755-777-000

Required: 2

PIN (8X32)

~~$2.50~~

$2.13

You save $0.38

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
