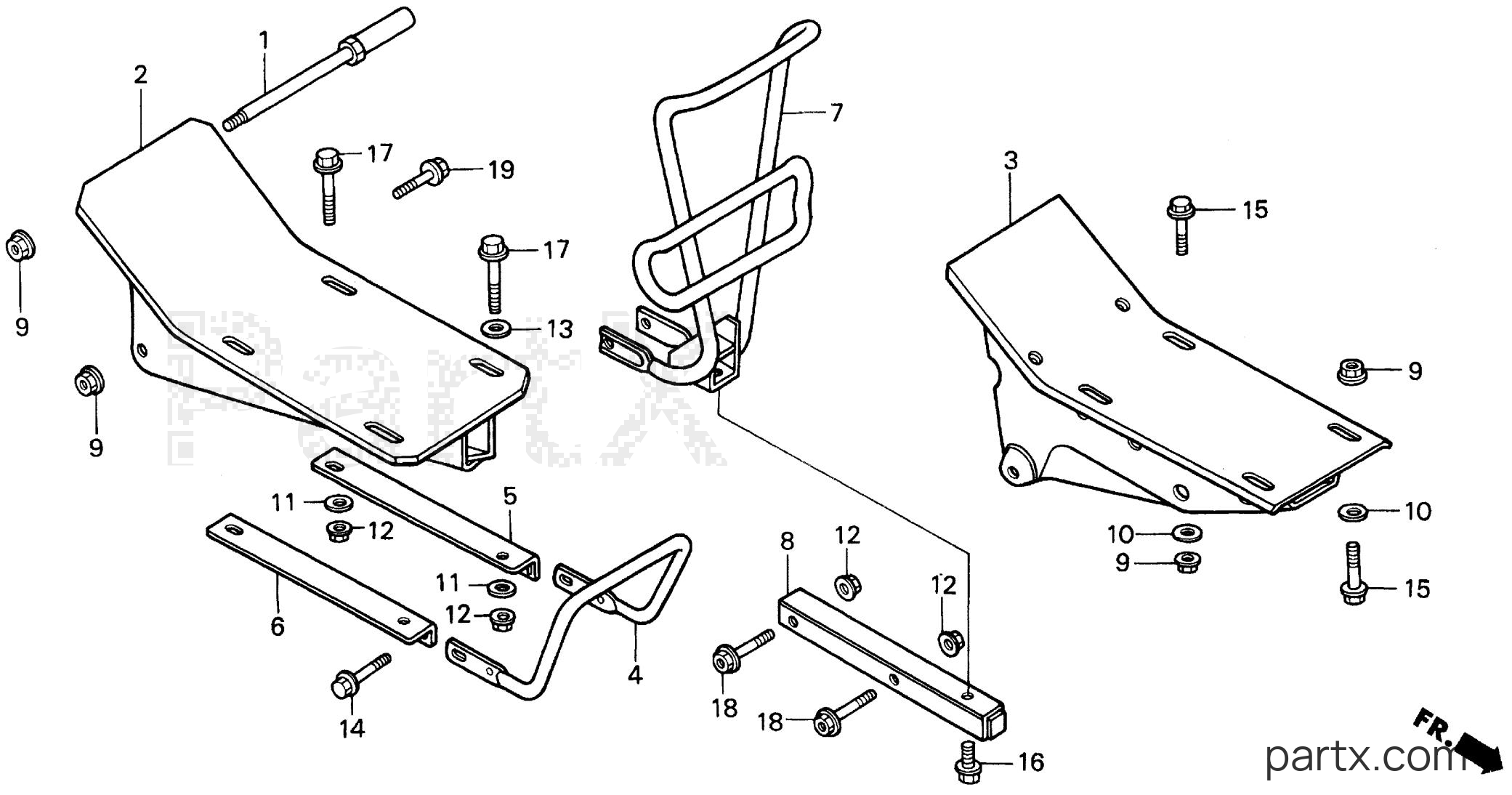

Honda FR700 A - ENGINE BED
Change View:
-15%
BOLT, TENSIONER ARM
001
Honda
BOLT, TENSIONER ARM22551-723-000
Required: 1
BOLT, TENSIONER ARM
Cross Ship
Leaves in 2-5 days
$26.64
$22.64
You save $4.00
More details
BED, ENGINE (NOT AVAILABLE)
003
Honda
BED, ENGINE (NOT AVAILABLE)51120-723-750
Required: 1
BED, ENGINE (NOT AVAILABLE)
Price unavailable
GUARD, FR. (NOT AVAILABLE)
007
Honda
GUARD, FR. (NOT AVAILABLE)51510-723-810
Required: 1
GUARD, FR. (NOT AVAILABLE)
Price unavailable
-15%
BEAM, WEIGHT
008
Honda
BEAM, WEIGHT59431-723-810
Required: 1
BEAM, WEIGHT
Cross Ship
Leaves in 2-5 days
$27.92
$23.73
You save $4.19
More details
-15%
WASHER (8X22)
010
Honda
WASHER (8X22)90402-344-820
Required: 4
WASHER (8X22)
Cross Ship
Leaves in 2-5 days
$2.28
$1.94
You save $0.34
More details
-15%
NUT, FLANGE (10MM)
012
Honda
NUT, FLANGE (10MM)94050-10000
Required: 2
NUT, FLANGE (10MM)
Cross Ship
Leaves in 2-5 days
$1.94
$1.65
You save $0.29
More details
-15%
BOLT, FLANGE (10X25)
016
Honda
BOLT, FLANGE (10X25)95701-10025-08
Required: 1
BOLT, FLANGE (10X25)
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
-15%
BOLT, FLANGE (10X50)
018
Honda
BOLT, FLANGE (10X50)95701-10050-08
Required: 2
BOLT, FLANGE (10X50)
Cross Ship
Leaves in 2-5 days
$3.16
$2.69
You save $0.47
More details
BOLT, FLANGE (8X45)
019
Honda
BOLT, FLANGE (8X45)95801-08045-00
Required: 1
BOLT, FLANGE (8X45)
Price unavailable
