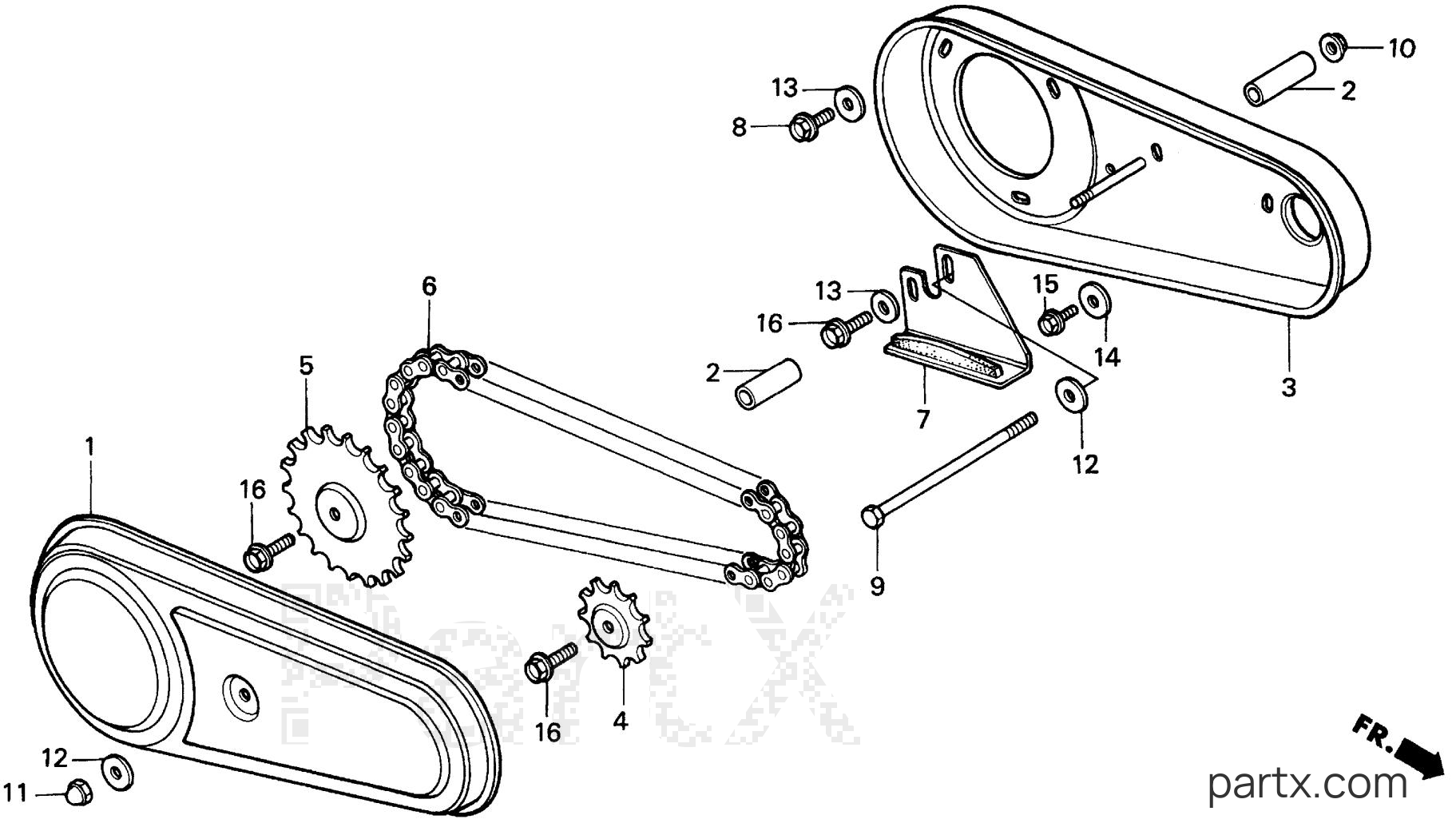

All Years Tillers FR - FR700K1 A PRIMARY CASE diagram
001
Honda
COVER, PRIMARY (NOT AVAILABLE)71111-723-750
Required: 1
COVER, PRIMARY (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
COLLAR, DISTANCE71115-723-750
Required: 2
COLLAR, DISTANCE
$7.04
You save $1.24
003
Honda
CASE, PRIMARY (NOT AVAILABLE)71121-723-750
Required: 1
CASE, PRIMARY (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
SPROCKET (11T)73511-723-750
Required: 1
SPROCKET, PRIMARY DRIVE (11T)
$23.65
You save $4.17
005
Honda
SPROCKET, PRIMARY DRIVEN (22T) (NOT AVAILABLE)73520-723-750
Required: 1
SPROCKET, PRIMARY DRIVEN (22T) (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
CHAIN, PRIMARY73531-723-751
Required: 1
CHAIN, PRIMARY
$109.94
You save $19.40
007
Honda
TENSIONER, PRIMARY CHAIN (NOT AVAILABLE)73615-723-750
Required: 1
TENSIONER, PRIMARY CHAIN (NOT AVAILABLE)
Price unavailable
-15%
008
Honda
BOLT, FLANGE (8MM)90105-952-720
Required: 3
BOLT, FLANGE (8MM)
$4.69
You save $0.83
009
Honda
BOLT, HEX. (8X115) (NOT AVAILABLE)90156-437-000
Required: 1
BOLT, HEX. (8X115) (NOT AVAILABLE)
Price unavailable
-20%
010
Honda
NUT, FLANGE (8MM)94050-08000
Required: 1
NUT, FLANGE (8MM)
In stock
Only 5 remaining
$0.94
You save $0.24
-15%
011
Honda
NUT, CAP (8MM)94021-08000-0S
Required: 1
NUT, CAP (8MM)
$1.68
You save $0.30
-15%
012
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 2
WASHER, PLAIN (8MM)
$0.85
You save $0.15
-15%
013
Honda
WASHER, PLAIN (8MM)94101-08800
Required: 3
WASHER, PLAIN (8MM)
$2.01
You save $0.35
-15%
014
Honda
WASHER, PLAIN (6MM)94103-06800
Required: 2
WASHER, PLAIN (6MM)
$0.82
You save $0.14
-15%
015
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 2
BOLT, FLANGE (6X12)
$1.73
You save $0.31
-15%
016
Honda
BOLT, FLANGE (8X16)95701-08016-08
Required: 3
BOLT, FLANGE (8X16)
$1.87
You save $0.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
