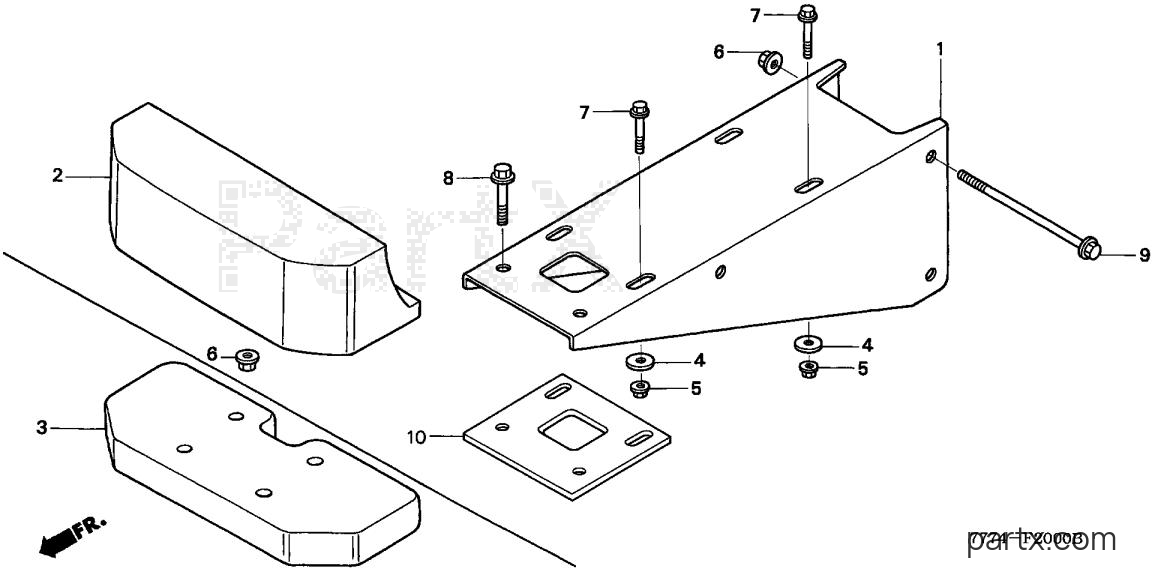

Honda FR650 AC - ENGINE BED
Change View:
-15%
BED, ENGINE
001
Honda
BED, ENGINE51111-777-000
Required: 1
BED, ENGINE (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$148.24
$126.00
You save $22.24
More details
WEIGHT, FR. (NOT AVAILABLE)
002
Honda
WEIGHT, FR. (NOT AVAILABLE)59301-777-000
Required: 1
WEIGHT, FR. (NOT AVAILABLE)
Price unavailable
-15%
WASHER (8X22)
004
Honda
WASHER (8X22)90402-344-820
Required: 4
WASHER (8X22)
Cross Ship
Leaves in 2-5 days
$2.28
$1.94
You save $0.34
More details
-15%
NUT, FLANGE (10MM)
006
Honda
NUT, FLANGE (10MM)94050-10080
Required: 4
NUT, FLANGE (10MM)
Cross Ship
Leaves in 2-5 days
$4.74
$4.03
You save $0.71
More details
-15%
BOLT, FLANGE (8X35)
007
Honda
BOLT, FLANGE (8X35)95701-08035-08
Required: 4
BOLT, FLANGE (8X35)
Cross Ship
Leaves in 2-5 days
$1.76
$1.50
You save $0.26
More details
-15%
BOLT, FLANGE (8X40)
007
Honda
BOLT, FLANGE (8X40)95701-08040-08
Required: 4
BOLT, FLANGE (8X40)
Cross Ship
Leaves in 2-5 days
$2.78
$2.36
You save $0.42
More details
-15%
BOLT, FLANGE (10X45)
008
Honda
BOLT, FLANGE (10X45)95701-10045-08
Required: 2
BOLT, FLANGE (10X45)
Cross Ship
Leaves in 2-5 days
$3.42
$2.91
You save $0.51
More details
-15%
BOLT, FLG (10X130)
009
Honda
BOLT, FLG (10X130)95701-10130-08
Required: 2
BOLT, FLANGE (10X130)
Cross Ship
Leaves in 2-5 days
$6.38
$5.42
You save $0.96
More details
PLATE, ENGINE BED (NOT AVAILABLE)
010
Honda
PLATE, ENGINE BED (NOT AVAILABLE)51113-777-000
Required: 1
PLATE, ENGINE BED (NOT AVAILABLE)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
