All diagrams for this model

All Years Tillers FG - FG500 A2 TOOLS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

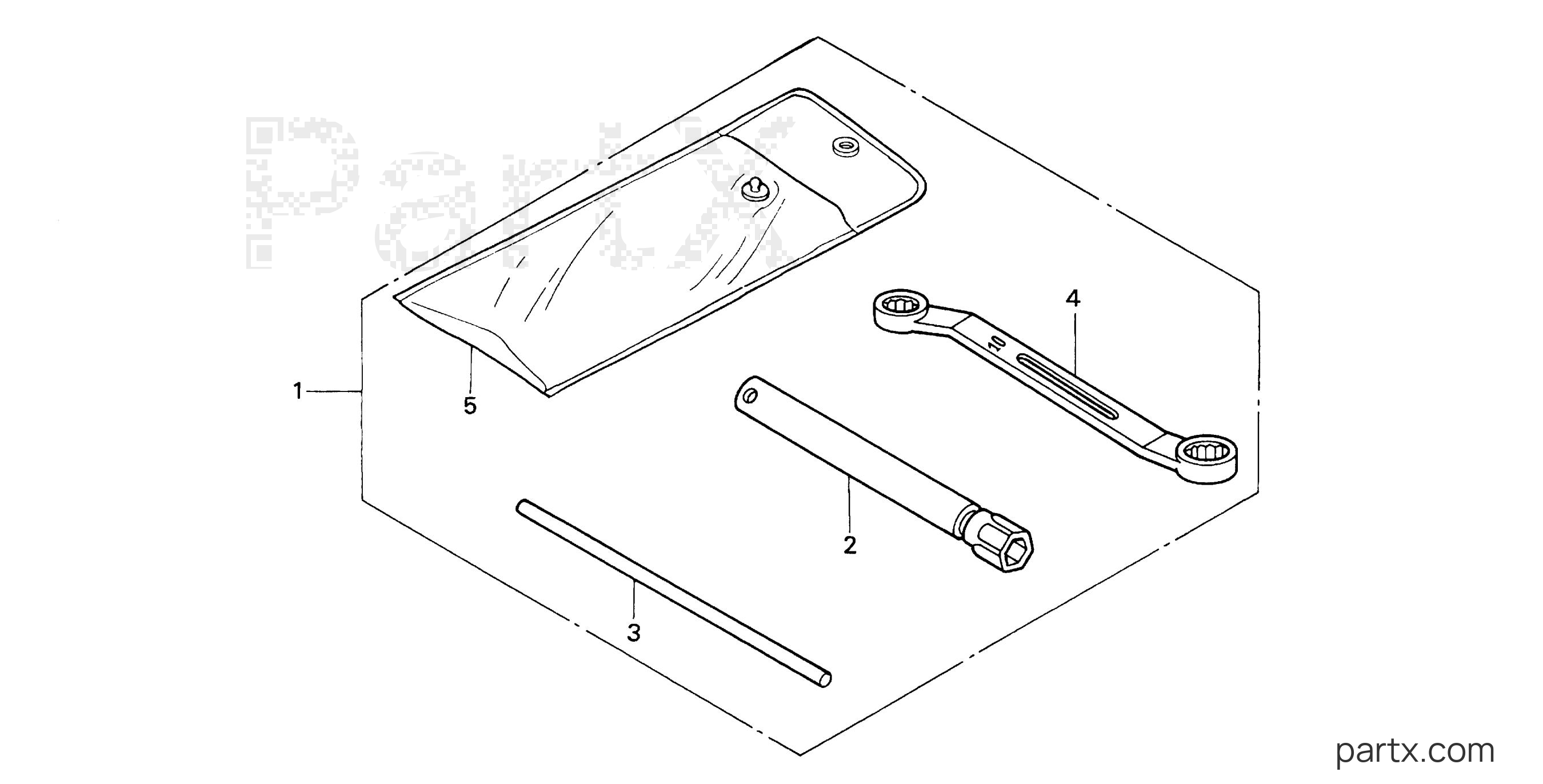

Honda FG500 A2 - TOOLS
Change View:
-15%
TOOL KIT
001
Honda
TOOL KIT89000-733-J00
Required: 1
TOOL KIT
Cross Ship
Leaves in 2-5 days
$67.34
$57.24
You save $10.10
More details
-15%
WRENCH, SPARK PLUG
002
Honda
WRENCH, SPARK PLUG89218-ZE1-000
Required: 1
WRENCH, SPARK PLUG
Cross Ship
Leaves in 2-5 days
$20.56
$17.48
You save $3.08
More details
-15%
HANDLE, BOX WRENCH
003
Honda
HANDLE, BOX WRENCH89219-805-000
Required: 1
HANDLE, BOX WRENCH
Cross Ship
Leaves in 2-5 days
$3.62
$3.08
You save $0.54
More details
-15%
WRENCH, EYE (10X12)
004
Honda
WRENCH, EYE (10X12)89227-461-000
Required: 1
WRENCH, EYE (10X12)
Cross Ship
Leaves in 2-5 days
$32.88
$27.95
You save $4.93
More details
-15%
BAG, TOOL (230MM)
005
Honda
BAG, TOOL (230MM)99008-02300
Required: 1
BAG, TOOL (230MM)
Cross Ship
Leaves in 2-5 days
$5.62
$4.78
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
