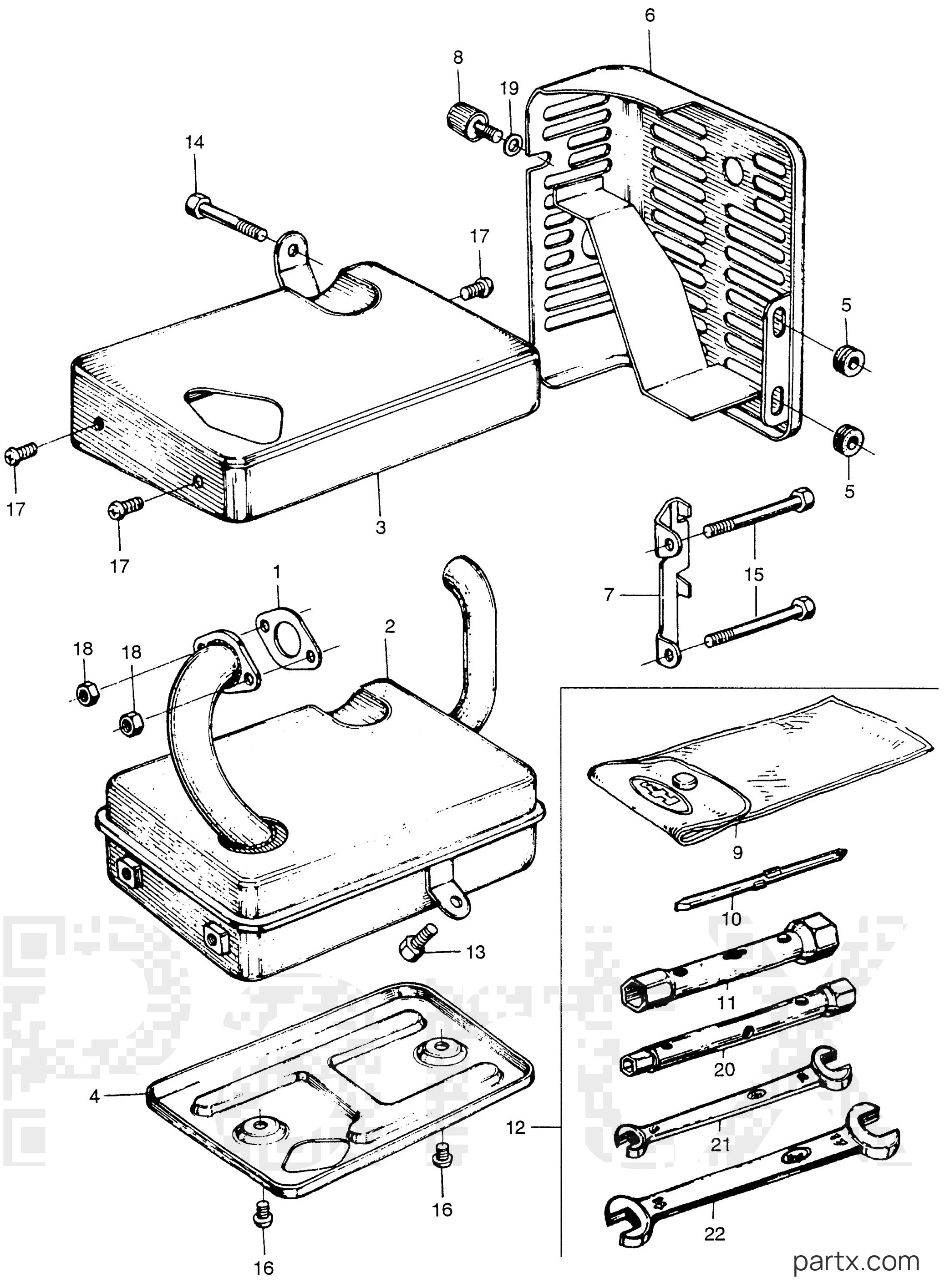

All Years Tillers F - F28 A MUFFLER - TOOLS diagram
001
Honda
GASKET, EX. PIPE (NOT AVAILABLE)18232-816-020
Required: 1
GASKET, EX. PIPE (NOT AVAILABLE)
Price unavailable
002
Honda
MUFFLER (NOT AVAILABLE)18300-844-000
Required: 1
MUFFLER (NOT AVAILABLE)
Price unavailable
003
Honda
PROTECTOR A (NOT AVAILABLE)18330-816-010
Required: 1
PROTECTOR A (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
PROTECTOR B18340-816-010
Required: 1
PROTECTOR B
$30.96
You save $5.46
005
Honda
GROMMET A, SIDE COVER (NOT AVAILABLE)36151-805-641
Required: 2
GROMMET A, SIDE COVER (NOT AVAILABLE)
Price unavailable
006
Honda
COVER, R. SIDE *R8*(BRIGHT RED) (NOT AVAILABLE)63501-844-740H
Required: 1
COVER, R. SIDE *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
007
Honda
STAY, SIDE COVER (NOT AVAILABLE)63502-844-000
Required: 1
STAY, SIDE COVER (NOT AVAILABLE)
Price unavailable
008
Honda
LATCH, SIDE COVER (NOT AVAILABLE)63505-844-000
Required: 1
LATCH, SIDE COVER (NOT AVAILABLE)
Price unavailable
009
Honda
BAG, TOOL83151-805-000
Required: 1
BAG, TOOL
Price unavailable
-15%
$4.33
You save $0.77
011
Honda
WRENCH, SPARK PLUG (NOT AVAILABLE)83517-044-000
Required: 1
WRENCH, SPARK PLUG (NOT AVAILABLE)
Price unavailable
012
Honda
TOOL ASSY. (N/A: SEE ASSEMBLY)89000-715-010
Required: 1
TOOL ASSY. (N/A: SEE ASSEMBLY)
Price unavailable
-15%
013
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 1
BOLT, HEX. (6X12)
$1.46
You save $0.26
-15%
014
Honda
BOLT, HEX. (6X45)92101-06045-0A
Required: 2
BOLT, HEX. (6X45)
$1.38
You save $0.24
-15%
015
Honda
BOLT, HEX. (6X25)92101-06025-0A
Required: 2
BOLT, HEX. (6X25)
$1.68
You save $0.30
016
Honda
SCREW, PAN (5X6) (NOT AVAILABLE)93500-05006-0B
Required: 2
SCREW, PAN (5X6) (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
SCREW, PAN (5X6)93500-05006-0A
Required: 3
SCREW, PAN (5X6)
$1.04
You save $0.18
018
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 2
NUT, HEX. (6MM)
Price unavailable
-15%
018
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 2
NUT, HEX. (6MM)
$1.36
You save $0.24
-20%
019
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-15%
020
Honda
SPANNER (8X12)99001-08120
Required: 1
SPANNER (8X12)
$3.08
You save $0.54
-15%
021
Honda
SPANNER (10X12)99001-10120
Required: 1
SPANNER (10X12)
$5.83
You save $1.03
-15%
022
Honda
SPANNER (14X17)99001-14170
Required: 1
SPANNER (14X17)
$9.32
You save $1.64
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
