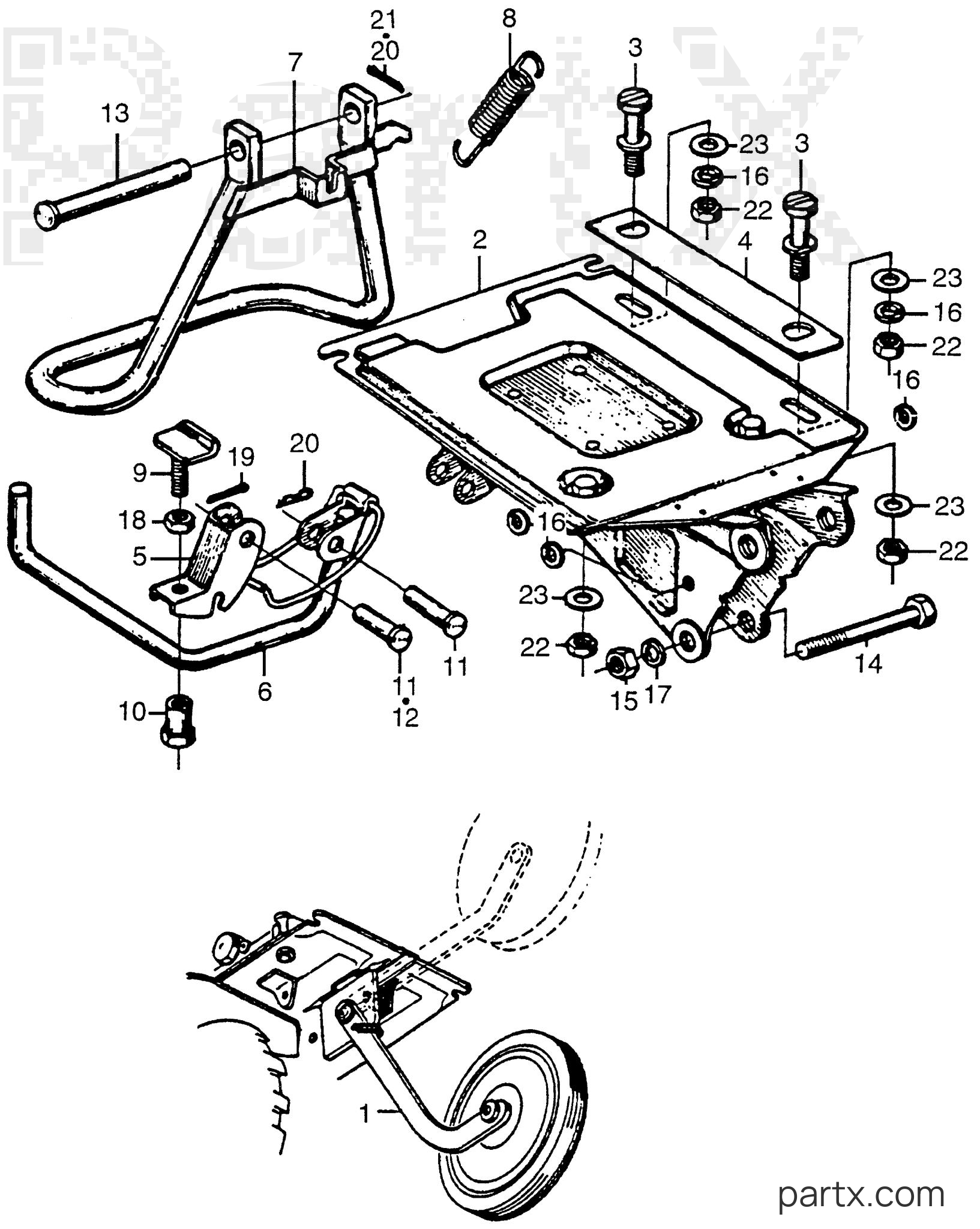

All Years Tillers F - F28K1 A ENGINE FRAME - FRONT WHEEL diagram
002
Honda
FRAME, ENGINE (NOT AVAILABLE)51110-715-010
Required: 1
FRAME, ENGINE (NOT AVAILABLE)
Price unavailable
003
Honda
PIN, STOPPER (NOT AVAILABLE)51121-715-000
Required: 2
PIN, STOPPER (NOT AVAILABLE)
Price unavailable
004
Honda
SPACER, ENGINE BED (NOT AVAILABLE)51122-715-000
Required: 1
SPACER, ENGINE BED (NOT AVAILABLE)
Price unavailable
005
Honda
ARM, ENGINE CLAMP (NOT AVAILABLE)51140-708-010
Required: 1
ARM, ENGINE CLAMP (NOT AVAILABLE)
Price unavailable
006
Honda
LEVER, SETTING (NOT AVAILABLE)51150-708-020
Required: 1
LEVER, SETTING (NOT AVAILABLE)
Price unavailable
007
Honda
PIPE, STAND (NOT AVAILABLE)51510-708-010
Required: 1
PIPE, STAND (NOT AVAILABLE)
Price unavailable
-15%
008
Honda
SPRING, LOCK51521-715-000
Required: 1
SPRING, LOCK
$5.54
You save $0.98
009
Honda
BOLT, ADJUST (NOT AVAILABLE)90102-715-000
Required: 1
BOLT, ADJUST (NOT AVAILABLE)
Price unavailable
010
Honda
NUT, ADJUST (8MM) (NOT AVAILABLE)90311-715-000
Required: 1
NUT, ADJUST (8MM) (NOT AVAILABLE)
Price unavailable
011
Honda
PIN, ARM (NOT AVAILABLE)90753-708-010
Required: 2
PIN, ARM (NOT AVAILABLE)
Price unavailable
012
Honda
PIN, STAND (NOT AVAILABLE)90754-708-000
Required: 1
PIN, STAND (NOT AVAILABLE)
Price unavailable
013
Honda
PIN, SETTING LEVER (NOT AVAILABLE)90757-708-000
Required: 1
PIN, SETTING LEVER (NOT AVAILABLE)
Price unavailable
-15%
014
Honda
BOLT, HEX. (10X50)92101-10050-0A
Required: 1
BOLT, HEX. (10X50)
$3.13
You save $0.55
-15%
015
Honda
NUT, HEX. (10MM)94001-10000-0S
Required: 1
NUT, HEX. (10MM)
$1.50
You save $0.26
-15%
016
Honda
WASHER, SPRING (8MM)94111-08000
Required: 4
WASHER, SPRING (8MM)
$1.02
You save $0.18
-15%
017
Honda
WASHER (10MM)94111-10000
Required: 1
WASHER, SPRING (10MM)
$1.39
You save $0.25
-15%
018
Honda
NUT, HEX. (8MM)94031-08000
Required: 1
NUT, HEX. (8MM)
$1.10
You save $0.20
-15%
019
Honda
PIN, SPLIT (2.0X15)94201-20150
Required: 1
PIN, SPLIT (2.0X15)
$1.07
You save $0.19
-15%
020
Honda
PIN, SPLIT (3.0X18)94201-30180
Required: 1
PIN, SPLIT (3.0X18)
$1.07
You save $0.19
-15%
021
Honda
PIN, LOCK (8MM)94251-08000
Required: 1
PIN, LOCK (8MM)
In stock
Only 2 remaining
$1.27
You save $0.23
-15%
022
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 4
NUT, HEX. (8MM)
$1.36
You save $0.24
-15%
023
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 4
WASHER, PLAIN (8MM)
$0.85
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
