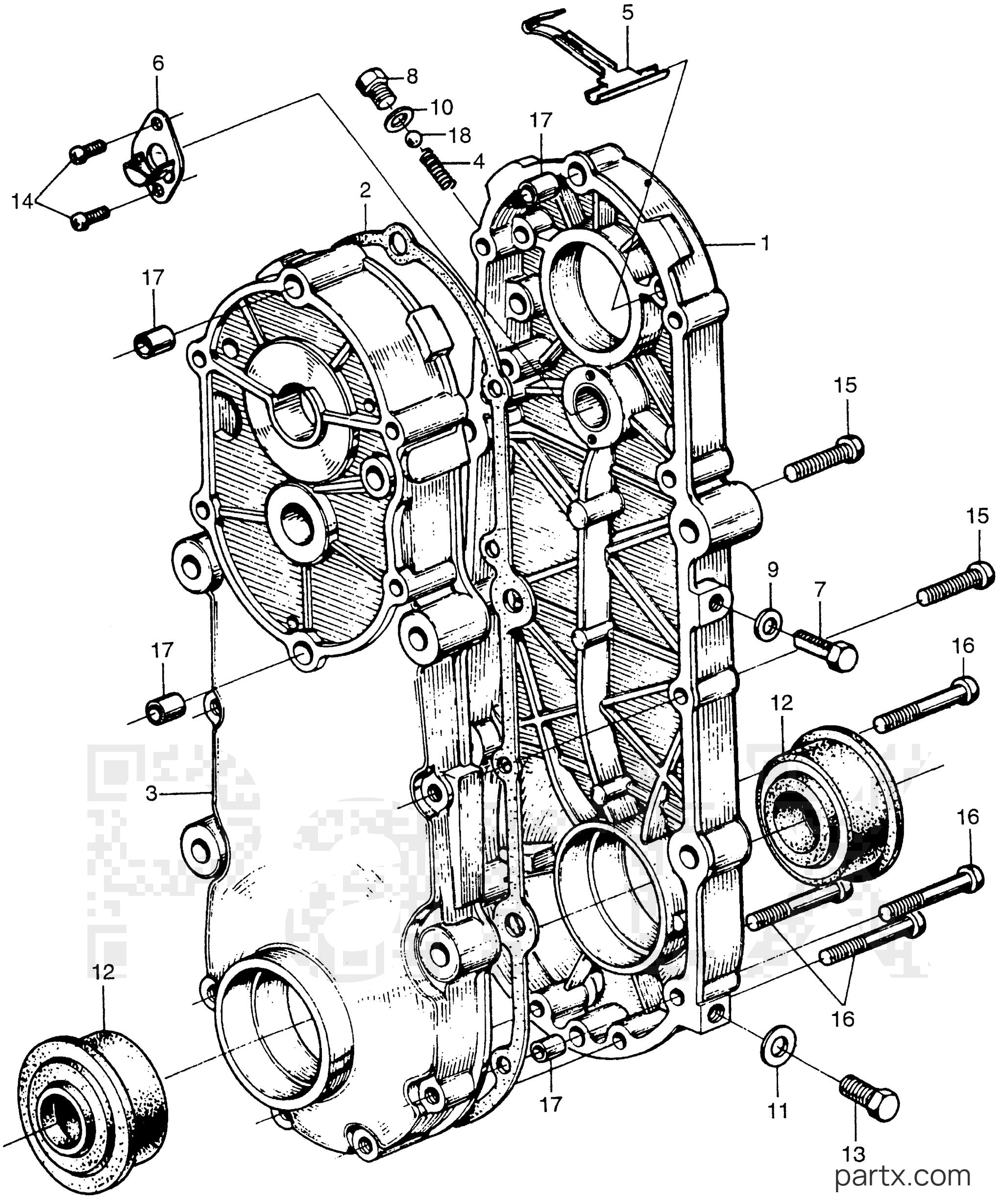

Honda F28K1 A - CASE
Change View:
CASE, R. (NOT AVAILABLE)
001
Honda
CASE, R. (NOT AVAILABLE)21110-708-040
Required: 1
CASE, R. (NOT AVAILABLE)
Price unavailable
GASKET, CASE (NOT AVAILABLE)
002
Honda
GASKET, CASE (NOT AVAILABLE)21191-708-010
Required: 1
GASKET, CASE (NOT AVAILABLE)
Price unavailable
CASE, L. (NOT AVAILABLE)
003
Honda
CASE, L. (NOT AVAILABLE)21210-708-040
Required: 1
CASE, L. (NOT AVAILABLE)
Price unavailable
SPRING, BALL SETTING (NOT AVAILABLE)
004
Honda
SPRING, BALL SETTING (NOT AVAILABLE)24271-700-000
Required: 1
SPRING, BALL SETTING (NOT AVAILABLE)
Price unavailable
GUIDE, OIL (NOT AVAILABLE)
005
Honda
GUIDE, OIL (NOT AVAILABLE)25431-715-010
Required: 1
GUIDE, OIL (NOT AVAILABLE)
Price unavailable
RECEIVER, OIL (NOT AVAILABLE)
006
Honda
RECEIVER, OIL (NOT AVAILABLE)25441-708-020
Required: 1
RECEIVER, OIL (NOT AVAILABLE)
Price unavailable
BOLT, OIL CHECK (NOT AVAILABLE)
007
Honda
BOLT, OIL CHECK (NOT AVAILABLE)25911-700-000
Required: 1
BOLT, OIL CHECK (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (8X8) (NOT AVAILABLE)
008
Honda
BOLT, HEX. (8X8) (NOT AVAILABLE)90086-700-000
Required: 1
BOLT, HEX. (8X8) (NOT AVAILABLE)
Price unavailable
-15%
WASHER A (6MM)
009
Honda
WASHER A (6MM)90478-700-000
Required: 1
WASHER A (6MM)
Cross Ship
Leaves in 2-5 days
$0.94
$0.80
You save $0.14
More details
-15%
WASHER A (8MM)
010
Honda
WASHER A (8MM)90488-700-000
Required: 1
WASHER A (8MM)
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
GASKET, DRAIN PLUG
011
Honda
GASKET, DRAIN PLUG90501-500-000
Required: 1
GASKET, DRAIN PLUG
Price unavailable
SEAL, WATER (25X46X18) (NOT AVAILABLE)
012
Honda
SEAL, WATER (25X46X18) (NOT AVAILABLE)91205-708-000
Required: 2
SEAL, WATER (25X46X18) (NOT AVAILABLE)
Price unavailable
-15%
BOLT, DRAIN (12MM)
013
Honda
BOLT, DRAIN (12MM)92800-12000
Required: 1
BOLT, DRAIN PLUG (12MM)
Cross Ship
Leaves in 2-5 days
$4.72
$4.01
You save $0.71
More details
-15%
SCREW, PAN (5X8)
014
Honda
SCREW, PAN (5X8)93500-05008-0A
Required: 2
SCREW, PAN (5X8)
Cross Ship
Leaves in 2-5 days
$1.06
$0.90
You save $0.16
More details
-15%
SCREW, PAN (6X25)
015
Honda
SCREW, PAN (6X25)93500-06025-0A
Required: 2
SCREW, PAN (6X25)
Cross Ship
Leaves in 2-5 days
$1.46
$1.24
You save $0.22
More details
-15%
SCREW, PAN (6X32)
016
Honda
SCREW, PAN (6X32)93500-06032-0A
Required: 4
SCREW, PAN (6X32)
Cross Ship
Leaves in 2-5 days
$1.52
$1.29
You save $0.23
More details
-15%
PIN, DOWEL (8X10)
017
Honda
PIN, DOWEL (8X10)94301-08100
Required: 4
PIN, DOWEL (8X10)
Cross Ship
Leaves in 2-5 days
$2.74
$2.33
You save $0.41
More details
-15%
BALL (#8) (1/4)
018
Honda
BALL (#8) (1/4)96211-08000
Required: 1
BALL, STEEL (#8) (1/4)
Cross Ship
Leaves in 2-5 days
$1.56
$1.33
You save $0.23
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
