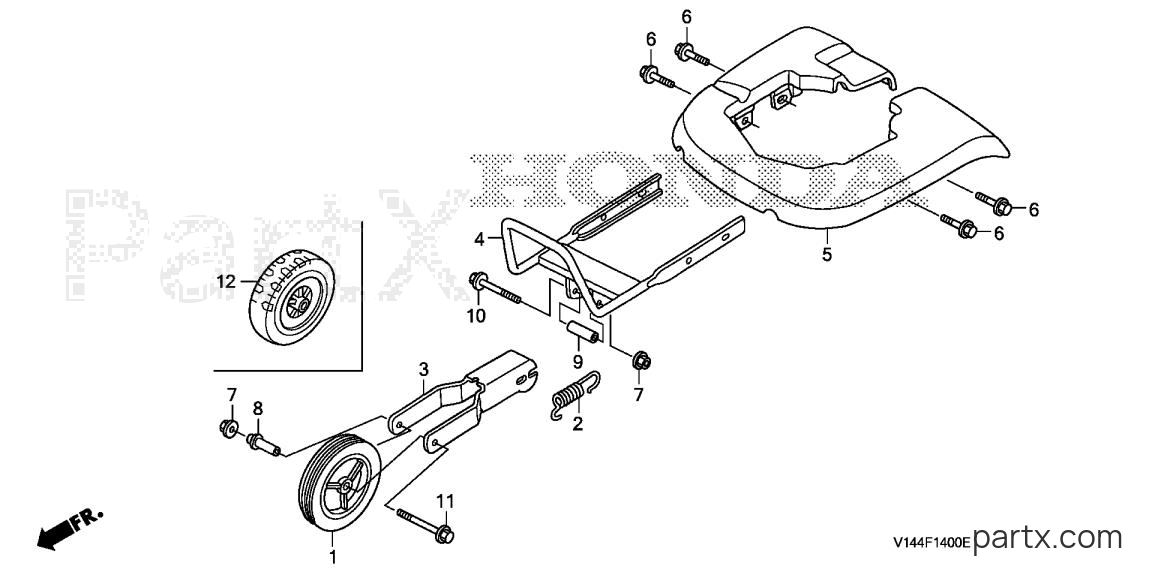

All Years Tillers F - F220K1 AT FENDER diagram
001
Honda
7"X15"" WHEEL112H62-CP
Required: 1
7"X15" WHEEL,RIB CRE
$8.85
-15%
002
Honda
SPRING, RETURN43151-V14-640
Required: 1
SPRING, RETURN
$6.31
You save $1.11
-15%
003
Honda
BEAM, FR. WHEEL44761-V14-641
Required: 1
BEAM, FR. WHEEL
$25.84
You save $4.56
-15%
004
Honda
PIPE, FR. GUARD51120-V14-640
Required: 1
PIPE, FR. GUARD
$103.72
You save $18.30
-15%
005
Honda
FENDER, MAIN *R280*65141-V14-000ZC
Required: 1
FENDER, MAIN *R280*(POWER RED)
$33.14
You save $5.85
-15%
006
Honda
BOLT (6X20) (CT200)90101-V14-000
Required: 4
BOLT, FLANGE (6X20) (CT200)
$3.18
You save $0.56
-20%
007
Honda
NUT, FLG (M8X1.25)90309-428-731
Required: 2
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.58
You save $0.90
-15%
008
Honda
COLLAR, FR. WHEEL91553-V08-010
Required: 1
COLLAR, FR. WHEEL
$7.55
You save $1.33
-15%
009
Honda
COLLAR, ENGINE BED91554-V08-000
Required: 1
COLLAR, ENGINE BED
$4.84
You save $0.86
-15%
010
Honda
BOLT, FLANGE (8X55)95701-08055-00
Required: 1
BOLT, FLANGE (8X55)
$2.55
You save $0.45
-15%
011
Honda
BOLT, FLANGE (8X70)95701-08070-00
Required: 1
BOLT, FLANGE (8X70)
$2.99
You save $0.53
-15%
$31.11
You save $5.49
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
