All diagrams for this model

All Years Tillers F - F220K1 AC CONTROL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

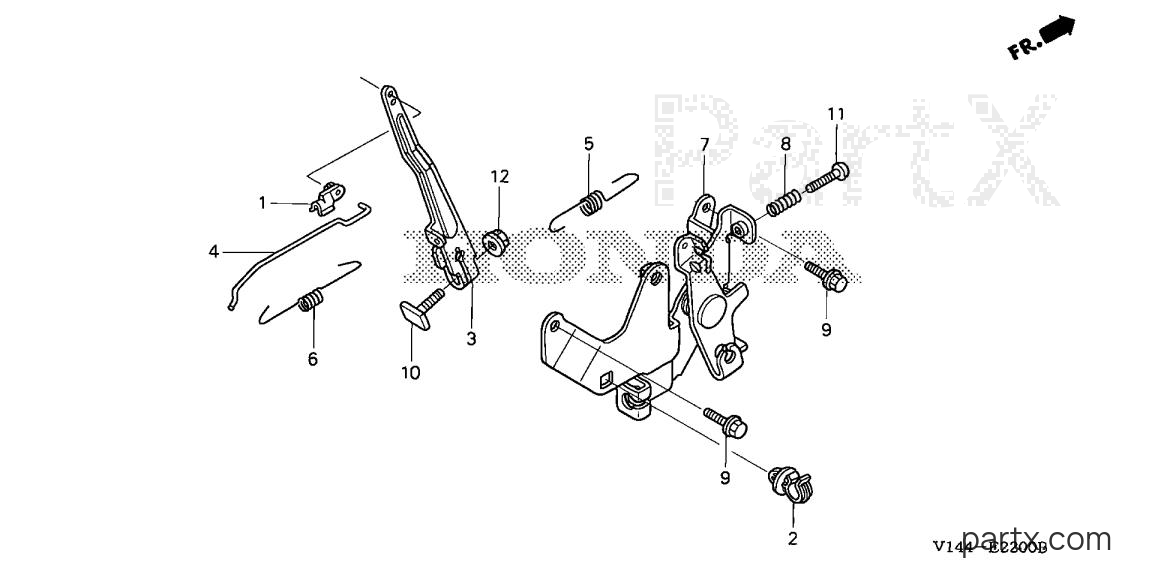

Honda F220K1 AC - CONTROL

Change View:

-15%

JOINT, ROD

JOINT, ROD16263-Z0G-010

JOINT, ROD

~~$3.42~~

$2.91

You save $0.51

-15%

CLAMP, FUEL TUBE

CLAMP, FUEL TUBE16446-Z0G-003

CLAMP, FUEL TUBE

~~$1.68~~

$1.43

You save $0.25

-15%

ARM, GOVERNOR

ARM, GOVERNOR16551-Z0G-000

ARM, GOVERNOR

~~$8.02~~

$6.82

You save $1.20

-15%

ROD, GOVERNOR

ROD, GOVERNOR16555-Z0G-010

ROD, GOVERNOR

~~$4.14~~

$3.52

You save $0.62

-50%

SPRING, GOVERNOR

SPRING, GOVERNOR16561-Z0G-000

SPRING, GOVERNOR

In stock

Only 1 remaining

~~$3.98~~

$1.99

You save $1.99

-50%

SPRING

SPRING16562-Z0G-000

SPRING, THROTTLE RETURN

In stock

Only 1 remaining

~~$3.30~~

$1.65

You save $1.65

-15%

BASE, CONTROL

BASE, CONTROL16580-Z0G-000

BASE, CONTROL

~~$30.00~~

$25.50

You save $4.50

-15%

SPRING

SPRING16584-883-300

SPRING, CONTROL ADJUSTING

~~$4.86~~

$4.13

You save $0.73

-15%

BOLT, FLANGE (5X12)

BOLT, FLANGE (5X12)90003-892-000

BOLT, FLANGE (5X12)

~~$1.50~~

$1.27

You save $0.23

-50%

BOLT, GOVERNOR ARM

BOLT, GOVERNOR ARM90015-ZE5-010

BOLT, GOVERNOR ARM

In stock

Only 1 remaining

~~$3.06~~

$1.53

You save $1.53

-15%

SCREW, PAN (5X20)

SCREW, PAN (5X20)93500-05020-0A

SCREW, PAN (5X20)

~~$1.00~~

$0.85

You save $0.15

-20%

NUT, FLANGE (6MM)

NUT, FLANGE (6MM)94050-06000

NUT, FLANGE (6MM)

~~$0.82~~

$0.66

You save $0.16

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
