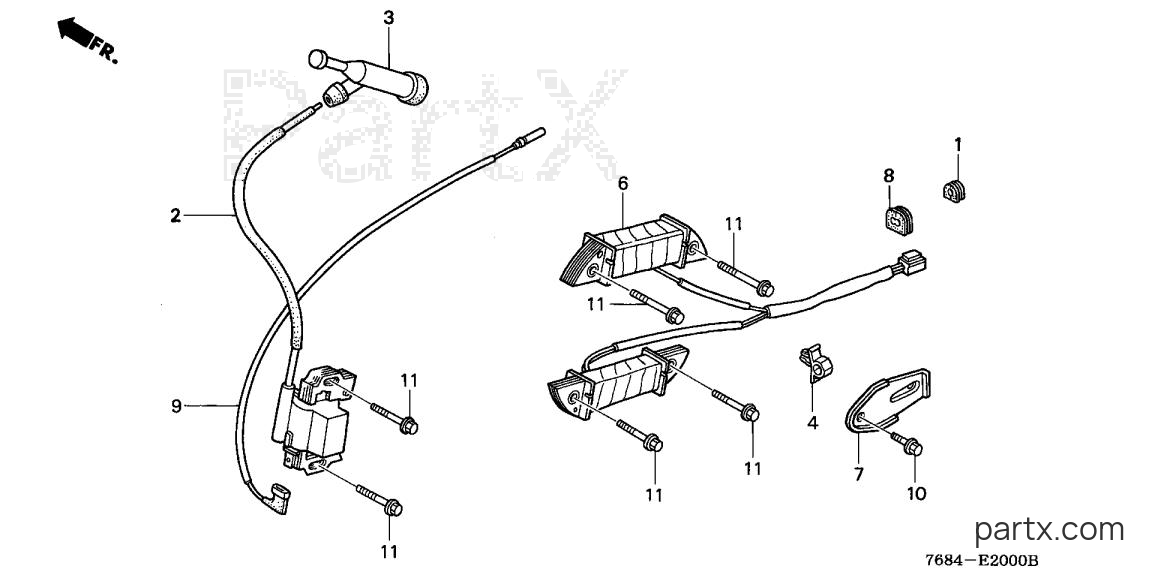

All Years Snowblower HS - HS928 WAS IGNITION COIL diagram
-15%
001
Honda
GROMMET15532-KM1-000
Required: 1
GROMMET, OIL PIPE HOLDER
$2.04
You save $0.36
-15%
002
Honda
COIL ASSY., IGNITION30500-ZE2-023
Required: 1
COIL ASSY., IGNITION
$47.12
You save $8.32
002
Honda
COIL ASSY., IGNITION (NOT AVAILABLE)30500-ZE2-781
Required: 1
COIL ASSY., IGNITION (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
COIL ASSY., IGNITION30500-ZF6-W02
Required: 1
COIL ASSY., IGNITION
$47.12
You save $8.32
-20%
003
Honda
CAP ASSY.30700-ZE1-013
Required: 1
CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)
$18.50
You save $4.62
-15%
006
Honda
COIL, LAMP (12V/50W)31510-ZE2-P31
Required: 1
COIL ASSY., LAMP (12V/50W)
$139.01
You save $24.53
-15%
007
Honda
CLAMP, WIRE31511-ZE2-000
Required: 1
CLAMP, WIRE
$5.32
You save $0.94
-15%
008
Honda
GROMMET, WIRE31512-ZE2-000
Required: 1
GROMMET, WIRE
$3.25
You save $0.57
-15%
009
Honda
WIRE (370MM)36101-ZE1-010
Required: 1
WIRE, STOP SWITCH (370MM)
$9.38
You save $1.66
-15%
010
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
011
Honda
BOLT (6X28) (CT200)90015-883-000
Required: 6
BOLT, FLANGE (6X28) (CT200)
$2.99
You save $0.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
