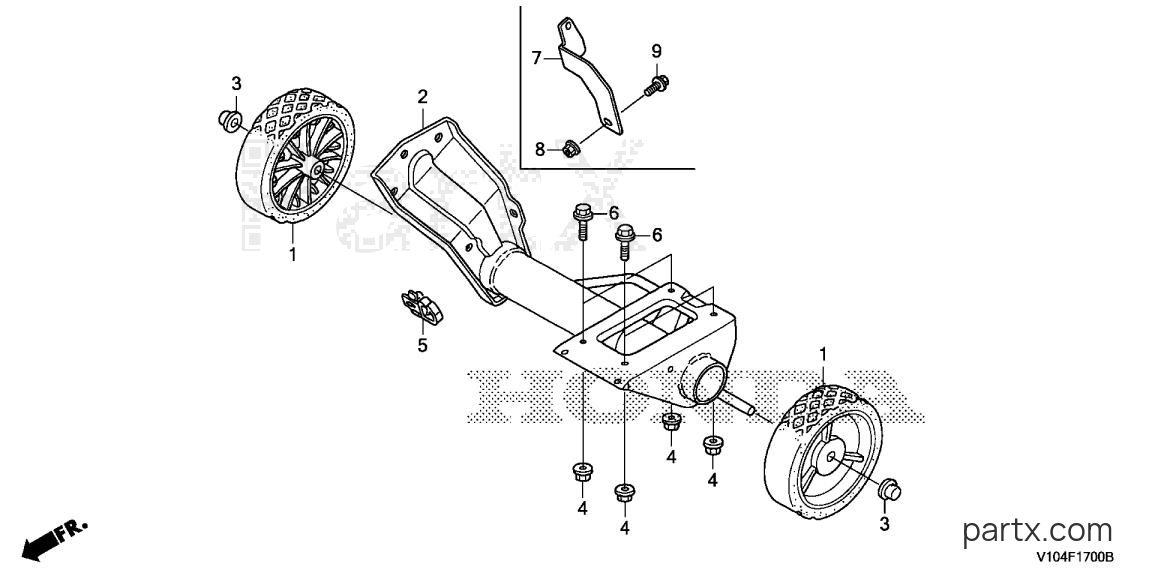

Honda HS720 AMA - ENGINE BED - WHEEL
Change View:
-15%
WHEEL ASSY. *R280*
001
Honda
WHEEL ASSY. *R280*42700-V10-S11ZA
Required: 2
WHEEL ASSY. *R280*(POWER RED)
Cross Ship
Leaves in 2-5 days
$6.51
$5.53
You save $0.98
More details
-15%
BED, ENGINE
002
Honda
BED, ENGINE51110-V10-000
Required: 1
BED, ENGINE
Cross Ship
Leaves in 2-5 days
$65.26
$55.47
You save $9.79
More details
-15%
NUT, FLANGE (8MM)
004
Honda
NUT, FLANGE (8MM)90351-SB2-003
Required: 4
NUT, FLANGE (8MM)
Cross Ship
Leaves in 2-5 days
$4.38
$3.72
You save $0.66
More details
-15%
CLIP (5MM-15MM)
005
Honda
CLIP (5MM-15MM)90678-ZA0-601
Required: 1
CLIP, HARNESS (5MM-15MM) (BLACK)
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
