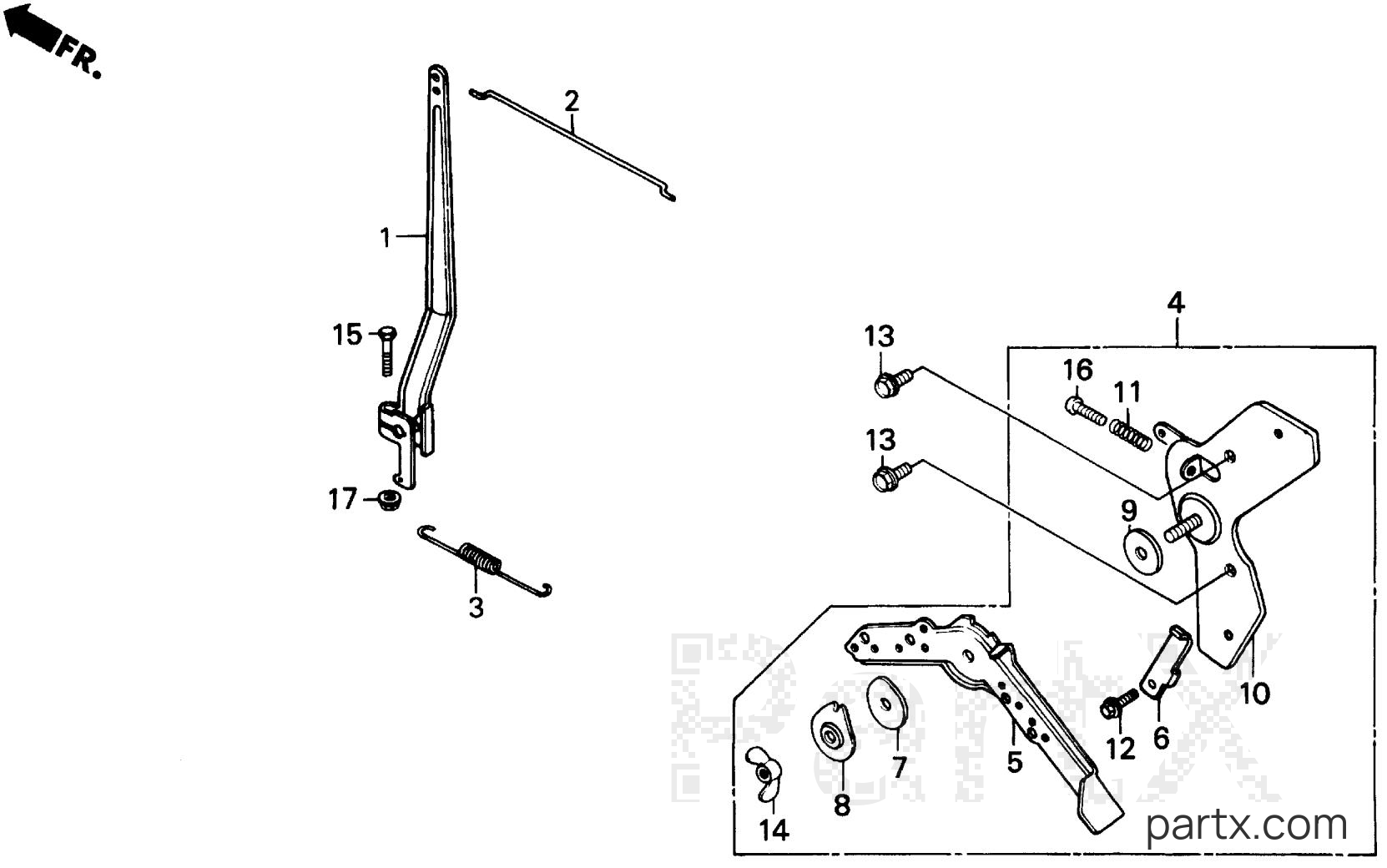

All Years Snowblower HS - HS70 TA HS70 CONTROL diagram
001
Honda
ARM, GOVERNOR (NOT AVAILABLE)16551-889-010
Required: 1
ARM, GOVERNOR (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
ROD, GOVERNOR16555-889-010
Required: 1
ROD, GOVERNOR
$4.17
You save $0.74
003
Honda
SPRING, GOVERNOR (NOT AVAILABLE)16561-890-601
Required: 1
SPRING, GOVERNOR (NOT AVAILABLE)
Price unavailable
004
Honda
CONTROL ASSY. (STD) (NOT AVAILABLE)16570-889-630
Required: 1
CONTROL ASSY. (STD) (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
LEVER, CONTROL16571-883-300
Required: 1
LEVER, CONTROL
$19.02
You save $3.36
006
Honda
STAY, IDLE STOPPER (NOT AVAILABLE)16572-732-020
Required: 1
STAY, IDLE STOPPER (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
SPRING, LEVER16574-883-300
Required: 1
SPRING, LEVER
$3.60
You save $0.64
-15%
008
Honda
WASHER16575-883-300
Required: 1
WASHER, CONTROL LEVER
$3.52
You save $0.62
-15%
009
Honda
SPACER16576-883-300
Required: 1
SPACER, CONTROL LEVER
$4.83
You save $0.85
010
Honda
BASE, CONTROL LEVER (NOT AVAILABLE)16581-883-320
Required: 1
BASE, CONTROL LEVER (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
SPRING16584-883-300
Required: 1
SPRING, CONTROL ADJUSTING
$4.13
You save $0.73
-15%
012
Honda
BOLT, FLANGE (5X10)90002-892-000
Required: 1
BOLT, FLANGE (5X10)
$1.46
You save $0.26
-15%
013
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 2
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
014
Honda
WINGNUT (6MM) (NOT AVAILABLE)90352-883-003
Required: 1
WINGNUT (6MM) (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
BOLT, HEX. (6X25)92101-06025-0H
Required: 1
BOLT, HEX. (6X25)
$1.84
You save $0.32
-15%
016
Honda
SCREW, PAN (5X22)93500-05022-0A
Required: 1
SCREW, PAN (5X22)
$0.70
You save $0.12
-50%
017
Honda
NUT, FLANGE (6MM)94050-06080
Required: 1
NUT, FLANGE (6MM)
In stock
Only 5 remaining
$0.41
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
