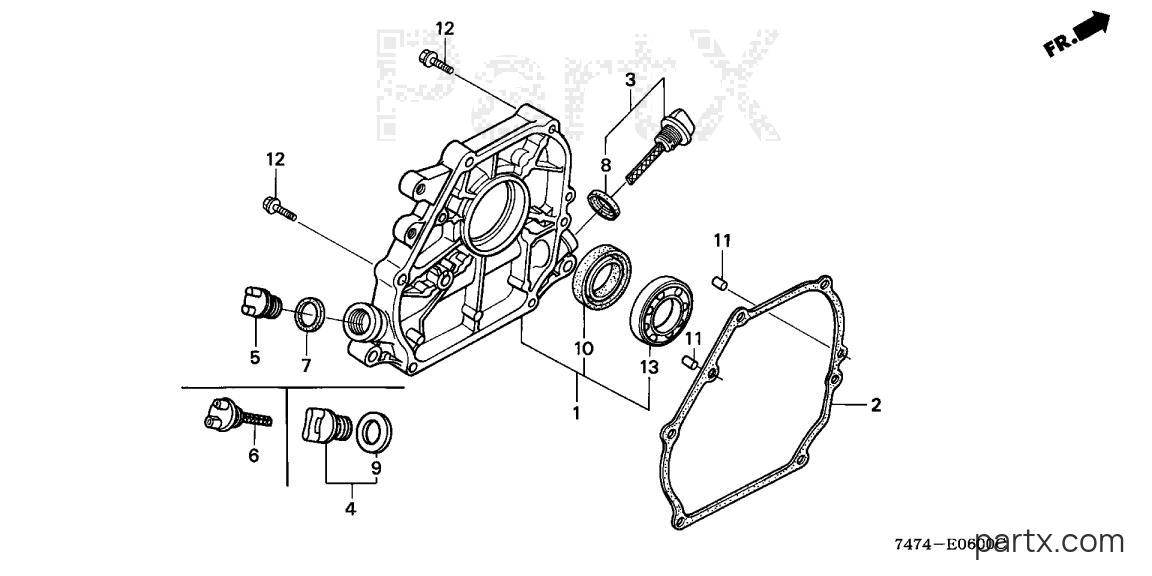

All Years Snowblower HS - HS521K1 AS CRANKCASE COVER diagram
001
Honda
COVER ASSY., CRANKCASE11300-ZE1-000
Required: 1
COVER ASSY., CRANKCASE
Price unavailable
-20%
002
Honda
GASKET, CASE COVER11381-ZH8-801
Required: 1
GASKET, CASE COVER (NON-ASBESTOS)
In stock
Only 1 remaining
$5.74
You save $1.44
-15%
003
Honda
CAP, OIL FILLER15600-Z0T-810
Required: 1
CAP ASSY., OIL FILLER (GAUGE)(GRAY)
$0.97
You save $0.17
003
Honda
CAP ASSY., OIL FILLER (GRAY)15600-ZE1-003
Required: 1
CAP ASSY., OIL FILLER (GRAY)
Price unavailable
-15%
006
Honda
CAP, OIL HOLE15621-ZE1-000
Required: 1
CAP, OIL HOLE
$5.71
You save $1.01
-15%
007
Honda
GSKT, OIL FILLER CAP15621-896-010
Required: 1
GASKET, OIL FILLER CAP
$4.64
You save $0.82
-15%
008
Honda
GSKT, OIL FILLER CAP15625-ZE1-003
Required: 1
GASKET, OIL FILLER CAP
In stock
Only 1 remaining
$2.74
You save $0.48
010
Honda
OIL SEAL (25X41X6)91202-883-005
Required: 1
OIL SEAL (25X41X6)
Price unavailable
-20%
011
Honda
PIN, DOWEL (8X14)94301-08140
Required: 2
PIN, DOWEL (8X14)
$2.19
You save $0.55
-15%
012
Honda
BOLT, FLANGE (8X32)95701-08032-00
Required: 6
BOLT, FLANGE (8X32)
$1.43
You save $0.25
-15%
013
Honda
BEARING (6205)96100-62050-00
Required: 1
BEARING, RADIAL BALL (6205)
In stock
Only 1 remaining
$20.50
You save $3.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
