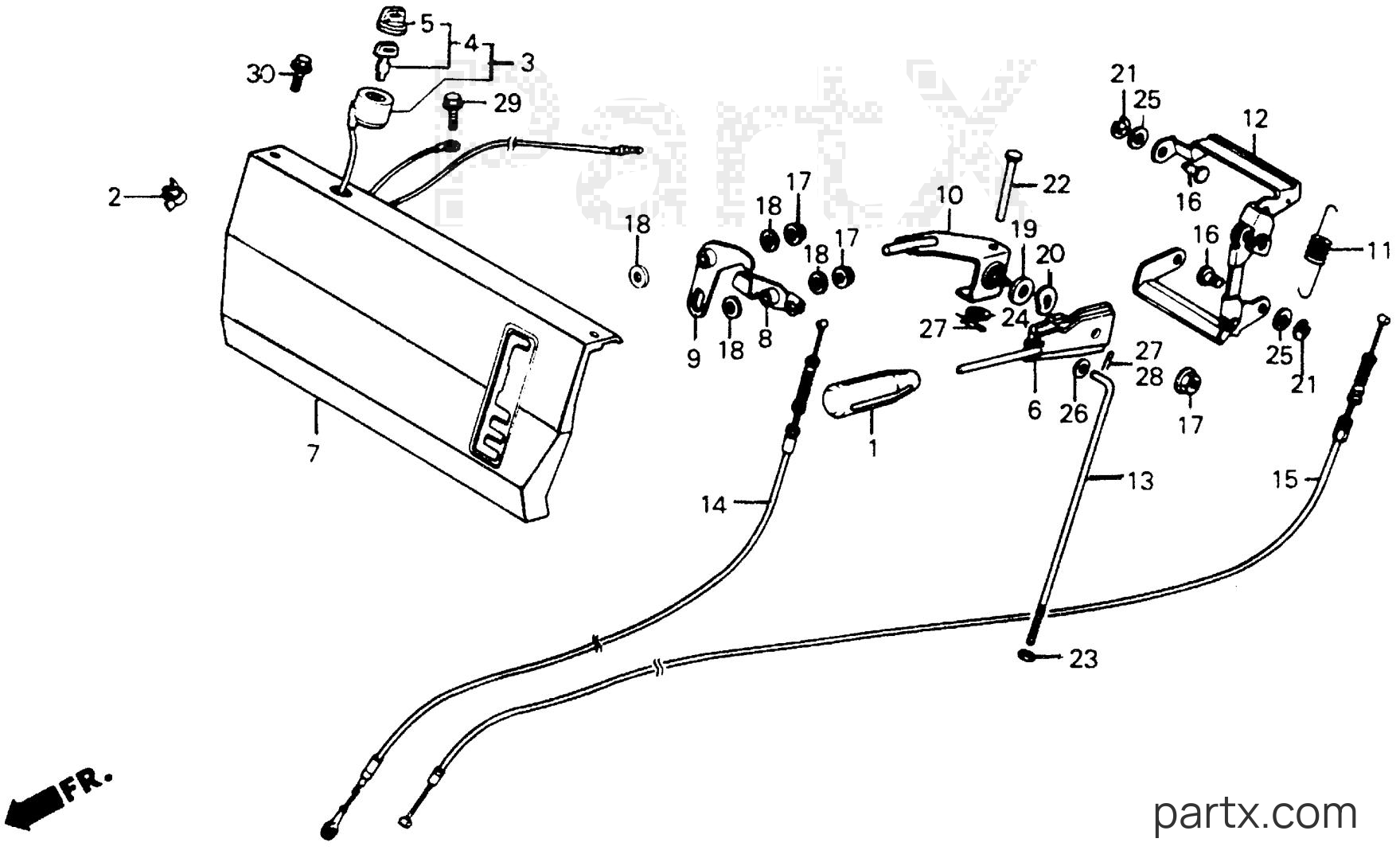

All Years Snowblower HS - HS55K1 WA CONTROL PANEL diagram
-15%
001
Honda
GRIP, CHANGE LEVER24411-736-000
Required: 1
GRIP, CHANGE LEVER
$5.64
You save $1.00
003
Honda
SWITCH ASSY., COMBINATION35100-736-611
Required: 1
SWITCH ASSY., COMBINATION
Price unavailable
-15%
004
Honda
KEY ASSY.35110-736-612
Required: 1
KEY ASSY., COMBINATION SWITCH (BLACK)
$10.56
You save $1.86
006
Honda
LEVER, CHANGE54211-736-000
Required: 1
LEVER, CHANGE
Price unavailable
007
Honda
PANEL, CONTROL (NOT AVAILABLE)54220-736-610
Required: 1
PANEL, CONTROL (NOT AVAILABLE)
Price unavailable
008
Honda
LEVER, CLUTCH DRIVE54223-736-000
Required: 1
LEVER, CLUTCH DRIVE
Price unavailable
009
Honda
LEVER, CLUTCH (NOT AVAILABLE)54226-736-000
Required: 1
LEVER, CLUTCH (NOT AVAILABLE)
Price unavailable
010
Honda
ARM, CHANGE LEVER (NOT AVAILABLE)54227-736-000
Required: 1
ARM, CHANGE LEVER (NOT AVAILABLE)
Price unavailable
011
Honda
SPRING, LEVER RETURN (NOT AVAILABLE)54229-736-000
Required: 1
SPRING, LEVER RETURN (NOT AVAILABLE)
Price unavailable
012
Honda
LEVER, SUB-CHANGE (NOT AVAILABLE)54230-736-000
Required: 1
LEVER, SUB-CHANGE (NOT AVAILABLE)
Price unavailable
013
Honda
ROD, CHANGE (NOT AVAILABLE)54521-736-000
Required: 1
ROD, CHANGE (NOT AVAILABLE)
Price unavailable
014
Honda
CABLE, CHANGE (NOT AVAILABLE)54525-736-000
Required: 1
CABLE, CHANGE (NOT AVAILABLE)
Price unavailable
015
Honda
CABLE, SUB-TRANSMISSION54526-736-000
Required: 1
CABLE, SUB-TRANSMISSION
Price unavailable
016
Honda
PIN, SIDE VALVE64427-688-000
Required: 4
PIN, SIDE VALVE
Price unavailable
-20%
017
Honda
NUT, SELF-LOCK (8MM)90115-659-003
Required: 3
NUT, SELF-LOCK (8MM) (CLINCH)
In stock
Only 3 remaining
$0.75
You save $0.19
-15%
018
Honda
WASHER (10MM)90412-KZL-840
Required: 4
WASHER, THRUST (10MM)
$0.48
You save $0.08
-15%
020
Honda
SPRING, LEVER90455-881-000
Required: 1
SPRING, LEVER
$3.69
You save $0.65
-15%
021
Honda
CIRCLIP (6MM)90603-720-000
Required: 4
CIRCLIP (6MM)
$1.61
You save $0.28
022
Honda
PIN, LINK (NOT AVAILABLE)90702-732-670
Required: 1
PIN, LINK (NOT AVAILABLE)
Price unavailable
-15%
023
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 1
NUT, HEX. (8MM)
$1.36
You save $0.24
-20%
024
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-20%
025
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 4
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-15%
026
Honda
WASHER, PLAIN (12MM)94102-12800
Required: 1
WASHER, PLAIN (12MM)
$1.26
You save $0.22
-20%
027
Honda
PIN, LOCK (6MM)94251-06000
Required: 2
PIN, LOCK (6MM)
$1.01
You save $0.25
-20%
029
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
In stock
Only 1 remaining
$1.58
You save $0.40
-15%
030
Honda
BOLT, FLANGE (6X10)96001-06010-07
Required: 4
BOLT, FLANGE (6X10)
$1.68
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
